Fanimation

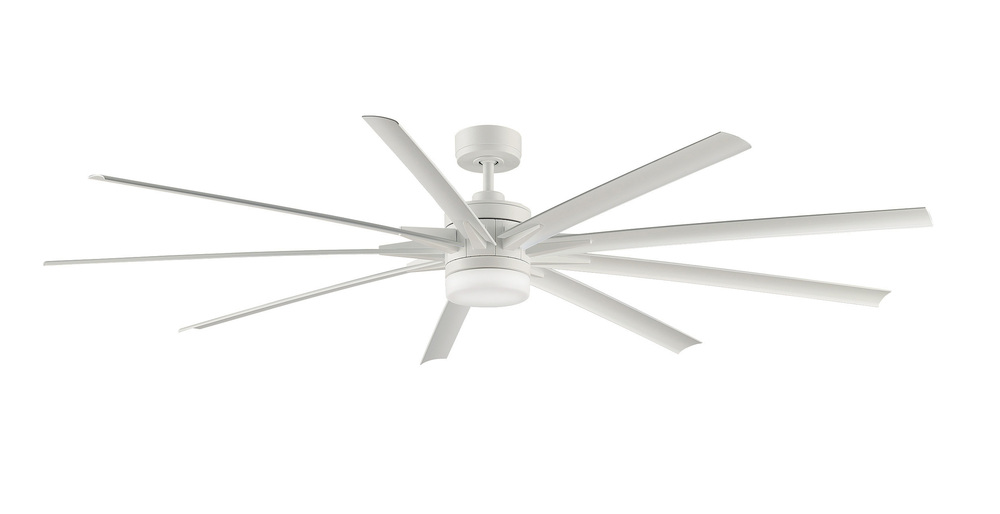

Odyn - 84 inch - MWW with MW Blades and LED (FPD8148MW-220)
$414.00
Call For Price
Enlarge Image
ENERGY INFORMATION
at High Speed
Airflow
10104
Cubic Feet per Minute		 Electricity Rate
32
Watts
(excluded lights)		 Airflow Efficiency
314
Cubic Feet Per Minute Per Watt
Description:
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Availability:
  • Manufacturer has 28 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 18.00"
right arrow Width: 84.00"
Additional Details:
right arrow Category: Fan-Uni
right arrow Finish: Matte White
right arrow Family: Odyn 84
right arrow Glass: Opal Frosted
right arrow Voltage: 240 V
right arrow Number of Bulbs: 1 Bulbs
right arrow Additional Info: 10,236 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included , TR205 handheld remote with CR2032 batteries included
right arrow Air Flow CFM: 10104
right arrow Air Flow Efficiency: 314
right arrow Amperage: 0.46
right arrow Blade Finish: Matte White
right arrow Blade Pitch: 12
right arrow Blade Span: 84
right arrow Bulb Type: 18 Watt LED Module
right arrow Canopy: 6.46 Dia x 2.58 H
right arrow Diameter: 8.27
right arrow Down Rod Included: 6
right arrow Electricity Used: 32
right arrow Harmonized Codes: 8414.51.3000
right arrow Kelvin: 3000
right arrow Length: 84
right arrow Light Kit Included: Yes
right arrow Lumens / Light Output: 1460
right arrow Material: Composite
right arrow Motor Fan Speed: 6
right arrow Motor RPM: 61
right arrow Motor Size: DC-165L
right arrow Motor Type: DC
right arrow Remote Control Included: TR39ND-220
right arrow Ship Carton Height: 12.87
right arrow Ship Carton Length: 40.08
right arrow Ship Carton Width: 10.47
right arrow Ship Weight: 35.92
right arrow Sold By: Each
right arrow Warranty: Limited Lifetime
right arrow Weight: 32.15
right arrow Airflow Efficiency Low: 834
right arrow Airflow Efficiency Medium: 535
right arrow Airflow Efficiency Medium High: 410
right arrow Airflow Efficiency Medium Low: 662
right arrow Airflow Efficiency Mini: 998
right arrow Blade Finish Method: Painted
right arrow Blade Material: Composite
right arrow Blade Reversible: No
right arrow Blade Sweep: 84
right arrow Bulb Base: Connector Pin
right arrow Bulb CRI: 80
right arrow Bulb Wattage: 18
right arrow Canopy Diameter: 6.46 Dia
right arrow Canopy Height: 2.58 H
right arrow Cap Included: No
right arrow Carton Cubic Feet: 3.13
right arrow Cartons Per Unit: 1
right arrow Case Height: 12.87
right arrow Case Length: 40.08
right arrow Case Quantity: 1
right arrow Case Weight Pounds: 35.92
right arrow Case Width: 10.47
right arrow CEC Uploaded: No
right arrow Ceiling To Blade Edge: 11.72
right arrow Ceiling To Bottom: 15.14 , 16.52
right arrow CFM Low: 5645
right arrow CFM Medium: 7923
right arrow CFM Medium High: 8994
right arrow CFM Medium Low: 6682
right arrow CFM Mini: 4453
right arrow Compatible Accessories: DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52
right arrow Country of Origin: China
right arrow CRI: 80
right arrow Current Draw High: 0.46
right arrow Current Draw Low: 0.11
right arrow Current Draw Medium: 0.23
right arrow Current Draw Medium High: 0.33
right arrow Current Draw Medium Low: 0.16
right arrow Current Draw Mini: 0.08
right arrow DOE-FTC Uploaded: No
right arrow DOEFTC Uploaded: No
right arrow Downrod Length: 6
right arrow Exempt from DOE Procedure: Yes
right arrow Housing Diameter: 8.27
right arrow Included Control: TR39ND-220
right arrow Included Control Type: Handheld
right arrow IP Rating: IP20
right arrow Leadwire: 80
right arrow Max Ceiling Slope: 27
right arrow Max Watt: 32
right arrow Maximum Slope Degree: 27
right arrow Motor Finish Method Type: Painted
right arrow Motor Reversible: Yes
right arrow Number of Blades: 9
right arrow Number Of Speeds: 6
right arrow Regulated Product: Yes
right arrow Reverse Switch Location: Control
right arrow RPM High (VI): 61
right arrow RPM Low (II): 36
right arrow RPM Medium (IV): 49
right arrow RPM Medium High (V): 55
right arrow RPM Medium Low III: 42
right arrow RPM Mini (I): 31
right arrow RPM Mini I: 65
right arrow Safety Rating: TUV Rheinland Approved
right arrow Voltage Cycles: 50 hz
right arrow Watts Low: 7
right arrow Watts Medium: 15
right arrow Watts Medium High: 22
right arrow Watts Medium Low: 10
right arrow Watts Mini: 4
right arrow Watts Per Bulb: 18
right arrow Standard Category: Fans
right arrow Standard Subcategory: Ceiling Fans with Light
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Option: LED
right arrow Standard Glass Finish or Style: Frosted , Opal
right arrow Standard Number of Blades: 8 Plus Blades
