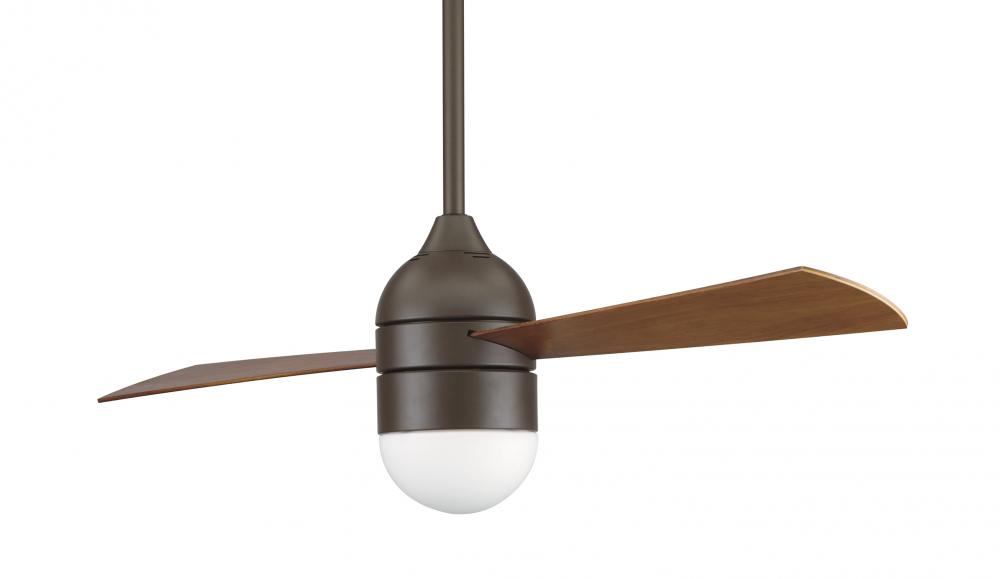

INVOLUTION: OIL-RUBBED BRONZE, 220 VOLT CHERRY/WALNUT (FP4520OB-220) by Fanimation
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
192
00
/
/ 1
($192.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
FP4520OB-220
Dimensions:
Height: 17.00"
Width: 10.50"
Length: 17.00"
Availability:
- Manufacturer has 25 items available.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Energy Information at High Speed
Airflow:
3780 Cubic Feet per Minute
Electricity Rate:
29 Watts (excluded lights)
Airflow Efficiency:
130 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
The Involution by Fanimation is the minimalist masterpiece of ceiling fan design. The Involution?s two fan blades create a symmetrical form that is the embodiment of modern art. The Involution?s contemporary design is augmented by decorative rings that
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Bronze
Style:
Contemporary
Number of Blades:
2 Blades
Category:
Fan-Multi
Finish:
Oil-Rubbed Bronze
Family:
Involution
Voltage:
240 V
Additional Info:
Compatible only with 220 volt electricity
Air Flow CFM:
3780
Air Flow Efficiency:
130
Amperage:
0.13
Blade Finish:
Cherry/Walnut
Blade Pitch:
14
Blade Span:
52
Canopy:
6.44 Dia x 2.63 H
Diameter:
7.6
Down Rod Included:
6
Electricity Used:
29
Harmonized Codes:
8414.51.3000
Length:
17
Light Kit Included:
No
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
125
Motor Size:
153 X 18
Motor Type:
AC
Remote Control Included:
CW40-220
Ship Carton Height:
11
Ship Carton Length:
27
Ship Carton Width:
15
Sold By:
Each
Switch/Control Included:
Yes, CW40-220
Warranty:
Limited Lifetime
Weight:
17.85
Wire Included:
80"
Airflow Efficiency Low:
155
Airflow Efficiency Medium:
144
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
Yes
Blade Sweep:
52
Canopy Diameter:
6.44 Dia
Canopy Height:
2.63 H
Carton Cubic Feet:
2.58
Case Height:
11
Case Length:
27
Case Weight Pounds:
23
Case Width:
15
CEC Uploaded:
No
Ceiling To Bottom:
17.54
CFM Low:
2954
CFM Medium:
3302
Compatible Accessories:
CCK8002OB, DR1-12OB, DR1-18OB, DR1-24OB, DR1-36OB, DR1-48OB, DR1-60OB, DR1-72OB, DR1-CPOB
Compatible Blades:
B4500SN, B4542CWR, B4542SN
Compatible Controls:
CRL4LA, CRL4WH, CRL8TS
Compatible Light Kits:
LK4520OB-220
Compatible Wall Controls:
C2-220
Country of Origin:
China
Current Draw High:
0.13
Current Draw Low:
0.11
Current Draw Medium:
0.12
DOE-FTC Uploaded:
No
DOEFTC Uploaded:
No
Downrod Length:
6
Exempt from DOE Procedure:
Yes
Housing Diameter:
7.6
Included Control:
CW40-220
Included Control Type:
Wall
IP Rating:
IP20
Leadwire:
80
Max Ceiling Slope:
27
Max Watt:
29
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Number of Blades:
2
Number Of Speeds:
3
Regulated Product:
No
Reverse Switch Location:
Motor Housing
RPM High (VI):
125
RPM Low (II):
98
RPM Medium (IV):
113
Voltage Cycles:
50 hz
Watts Low:
19
Watts Medium:
23
Manufactured By:
Fanimation
Additional Information:
- Compatible Only With 220 Volt Electricity
