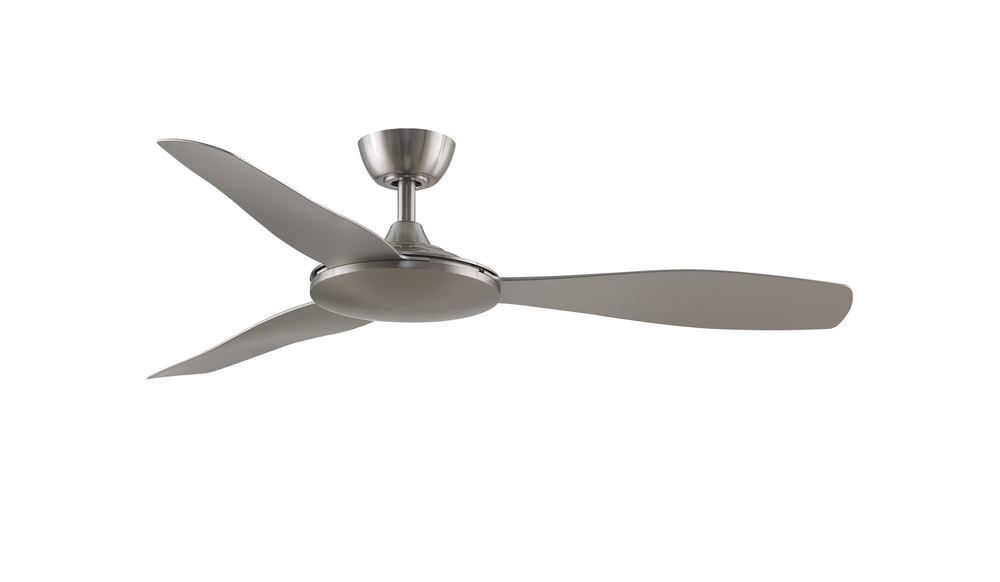

GlideAire - 52 Inch - BN with BN Blades (FPD8520BNBN) by Fanimation
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
504
00
/
/ 1
($504.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
FPD8520BNBN
Dimensions:
Height: 9.98"
Width: 52.00"
Length: 52.00"
Availability:
- Manufacturer has 31 items available.
Energy Information at High Speed
Airflow:
5538 Cubic Feet per Minute
Electricity Rate:
26 Watts (excluded lights)
Airflow Efficiency:
215 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Nickel
Style:
Traditional
Option:
Energy Star
, Damp Rated
Voltage:
10-99
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Category:
Fan-Uni
Finish:
Brushed Nickel
Option:
Damp
Family:
Glideaire
Voltage:
120 V
Additional Info:
5876 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air
, ENERGY STAR Most Efficient 2020
, Set of (3) 52 inch Damp Rated Black or Brushed Nickel blades included
, TR205 handheld remote with CR2032 batteries included
Air Flow CFM:
5538
Air Flow Efficiency:
215
Amperage:
0.36
Blade Finish:
Brushed Nickel
Blade Pitch:
15
Canopy:
5.71 Dia x 2.23 H
Diameter:
11.02
Down Rod Included:
4.5
Electricity Used:
26
Harmonized Codes:
8414.51.3000
Length:
52
Light Kit Included:
No
Material:
Composite
Motor Fan Speed:
16
Motor RPM:
173
Motor Size:
158 X 15
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
8.58
Ship Carton Length:
24.61
Ship Carton Width:
12.8
Ship Weight:
15.9
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
13.3
Airflow Efficiency Low:
192
Airflow Efficiency Medium:
456
Avg Airflow Efficiency:
218
Avg CFM Energy:
3746
Avg Energy Use Watts:
17
Avg Estimated Yearly Energy Cost:
5
Avg Estimated Yearly Energy Cost on HIGH:
7
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Canopy Diameter:
5.71 Dia
Canopy Height:
2.23 H
Cap Included:
No
Carton Cubic Feet:
1.56
Cartons Per Unit:
1
Case Height:
8.58
Case Length:
24.61
Case Quantity:
1
Case Weight Pounds:
15.9
Case Width:
12.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
9.15
Ceiling To Bottom:
9.98
CFM Low:
538
CFM Medium:
3371
Compatible Accessories:
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.36
Current Draw Low:
0.05
Current Draw Medium:
0.11
Damp Rated:
Yes
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
11.02
Included Control:
TR205D
Included Control Type:
Handheld
Leadwire:
54
Max Ceiling Slope:
19
Max Watt:
26
Maximum Slope Degree:
19
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
173
RPM Low (II):
28
RPM Medium (IV):
105
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
3
Watts Medium:
7
Manufactured By:
Fanimation
Additional Information:
- 5876 Cfm On High
- Compatible With Most Smart Home Devices (required Controls Sold Separately)
- Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
- Energy Star Most Efficient 2020
- Set Of (3) 52 Inch Damp Rated Black Or Brushed Nickel Blades Included
- Tr205 Handheld Remote With Cr2032 Batteries Included
