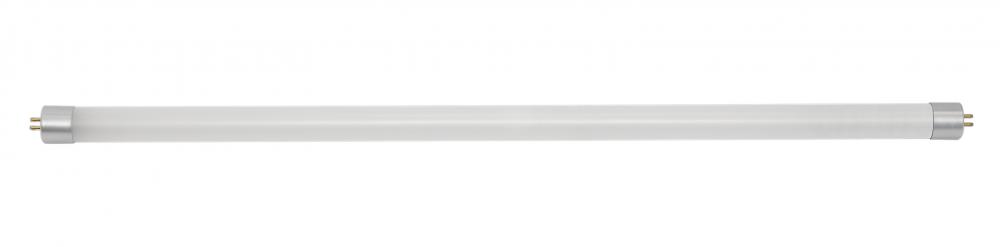

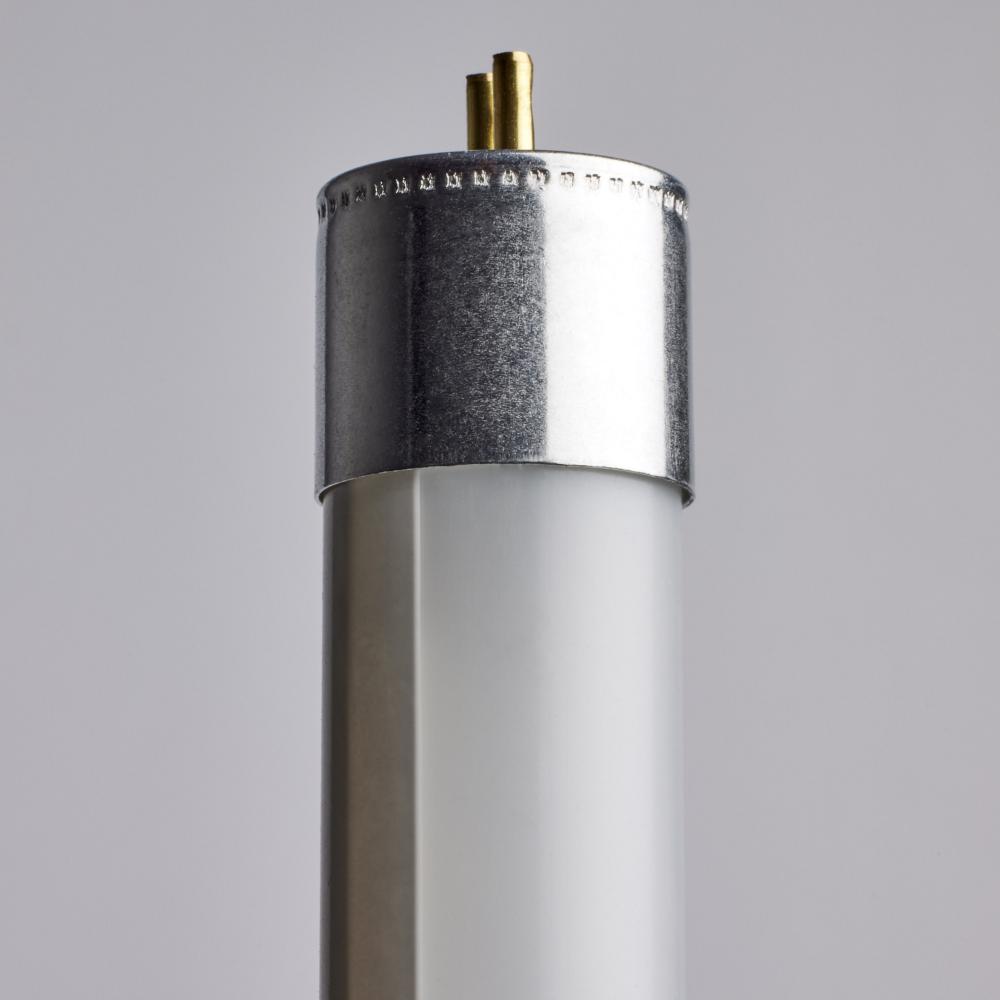

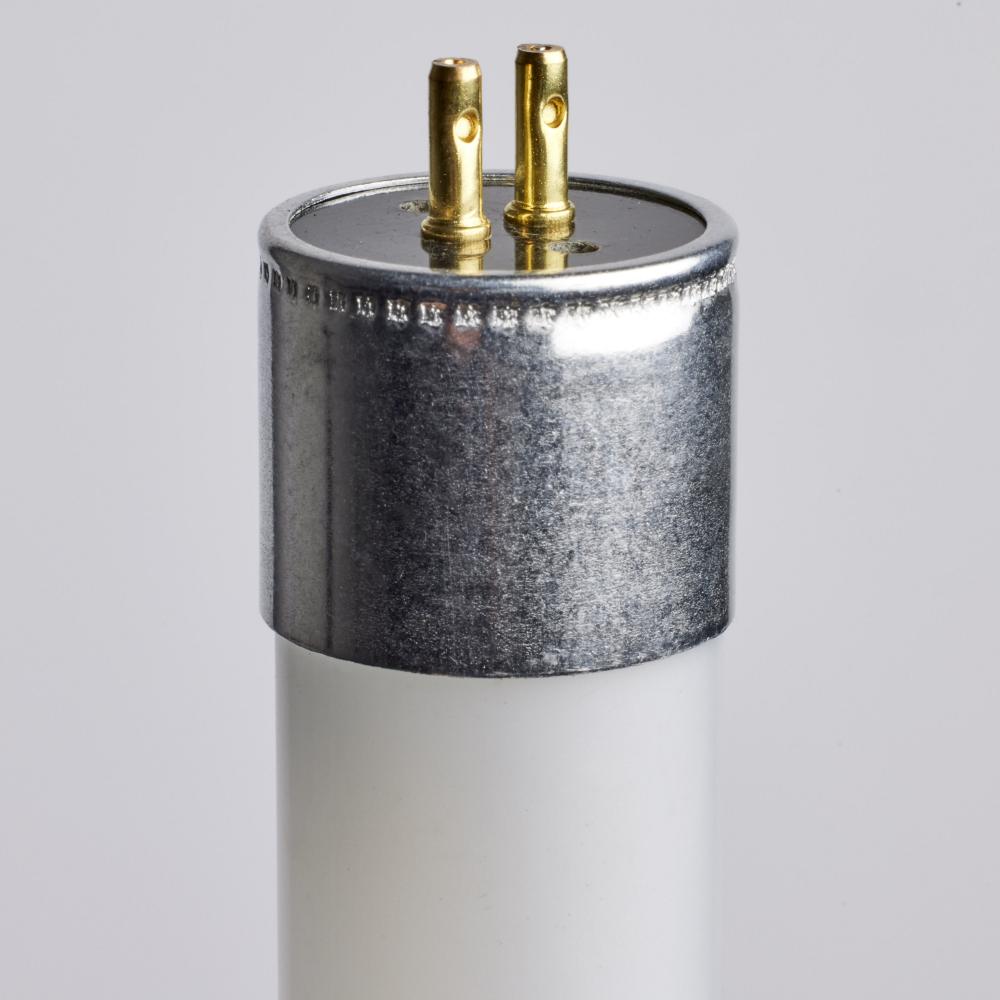

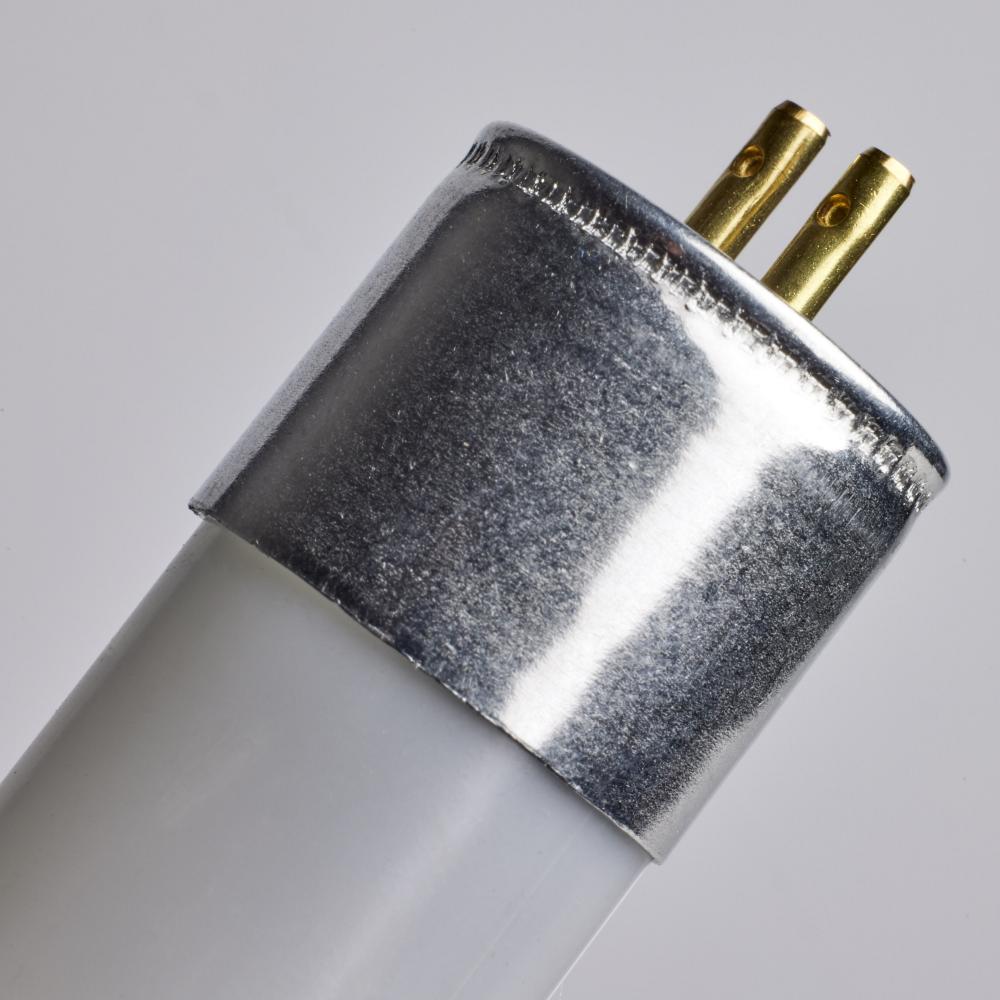

7 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 700 Lumens; 120-277 Volt; (S11909) by Satco Products Inc.
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
12
00
/
/ 1
($12.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11909
Dimensions:
Width: 0.83"
White
Availability:
- Manufacturer has 574 items available.
Description
Details
Downloads
7 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 700 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
450-800
Kelvin:
6001-6500
Category:
LED
Sub-Category:
LED T5
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
6500K
Bulb Shape:
T5
Diameter:
0.83
EA Length:
0.9
Harmonized Codes:
8539.52.0051
Length:
20.91
Lumens:
700L
Shap Carton Width:
0.9
Ship Carton Height:
21
Ship Weight:
0.13
Warranty:
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Weight:
0.13
Additional Info:
Replaces F13T5/D lamps
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
No ballast or external driver required
Beam Spread:
240
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0098
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Daylight
Country Of Origin:
China
CRI:
82
DLC Approved:
No
DLC ID:
No
Efficacy:
100.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 20.91 inches, MOD: 0.83 inches
Feature 2:
Superior 82 CRI light quality, 700 lumens, 6500K daylight, with a 240 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp location rated
Feature 5:
13 watt fluorescent equivalent
Feature 6:
Frost finished linear bulb
Feature 7:
LED energy efficient fixture
Feature 8:
5 Year Limited Warranty
Flourescent Equivalent:
13W
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures. Direct wire 120-277V line voltage; Double ended wiring
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Long Description:
Satco's S11909 7 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, this bulb has a temperature of 6500 kelvins a
Material:
Glass
Nominal Length:
21
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Satco's 7 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, this bulb has a temperature of 6500 kelvins and a lu
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
7W/LED/T5/865/BP
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
7W
Manufactured By:
Satco Products Inc.
