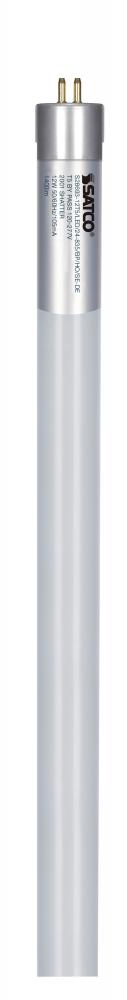

12 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1400 Lumens; 120-277 Volt; (S28693) by Satco Products Inc.
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
23
00
/
/ 1
($23.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S28693
Dimensions:
Width: 0.83"
White
Availability:
- Manufacturer has 1869 items available.
Description
Details
Downloads
12 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
1101-1600
Kelvin:
3501-4000
Wattage:
12w
Category:
LED
Sub-Category:
LED T5
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K
Bulb Shape:
T5
Diameter:
0.83
EA Length:
22.5
Harmonized Codes:
8539.52.0051
Length:
22.5
Lumens:
1400L
Shap Carton Width:
0.85
Ship Carton Height:
0.85
Ship Weight:
0.2
Warranty:
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Weight:
0.21
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
240
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0094
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White
Country Of Origin:
China
CRI:
83
DLC Approved:
No
DLC ID:
No
Efficacy:
116.67 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Single or double ended wiring
Feature 2:
All glass tube
Feature 3:
PET-shatterproof coated
Feature 4:
NSF certified
Feature 5:
Damp location rating
Feature 6:
50/60 hertz electric power frequency
Feature 7:
50/60 hertz electric power frequency
Flourescent Equivalent:
24W
Housing Color:
White
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP20
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:
Satco's S28693 12-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ba
Material:
Glass
Nominal Length:
24
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Satco's 12-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast o
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
12T5/LED/24-835/BP/HO/SE-DE
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
12W
Manufactured By:
Satco Products Inc.
