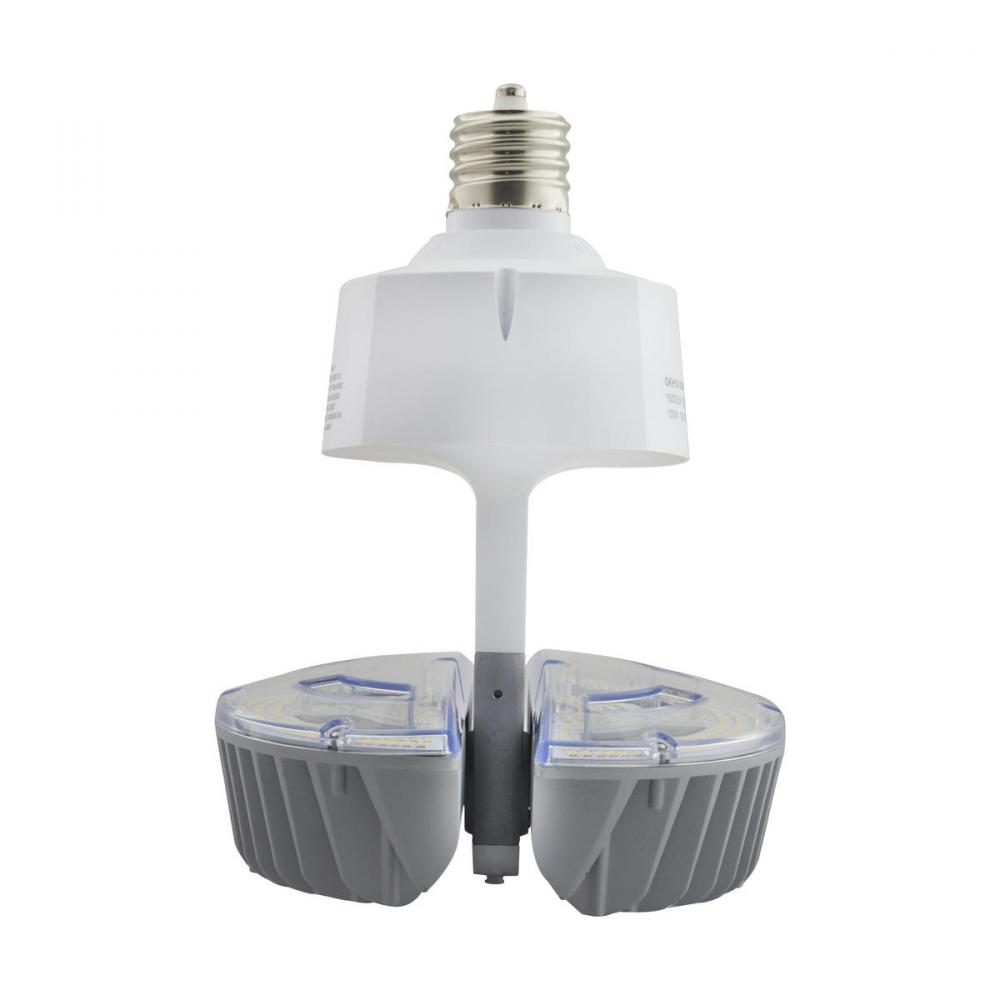

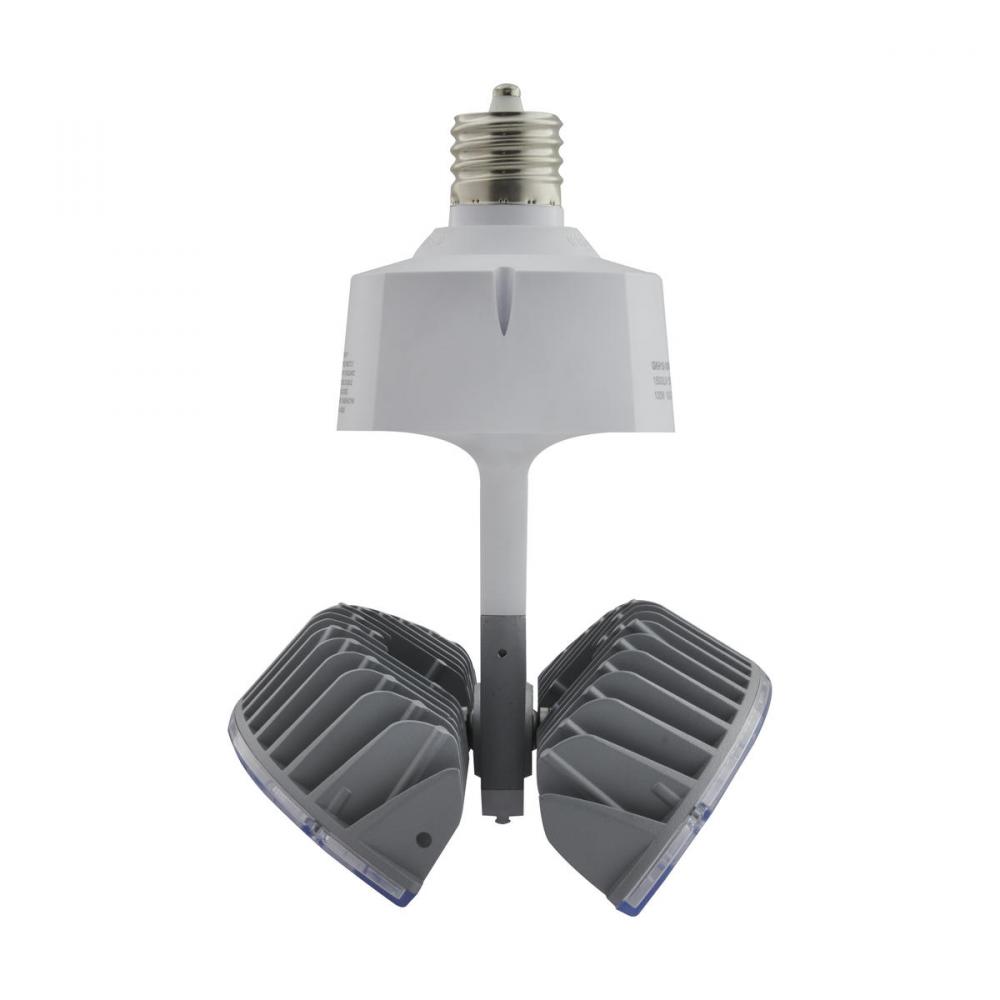

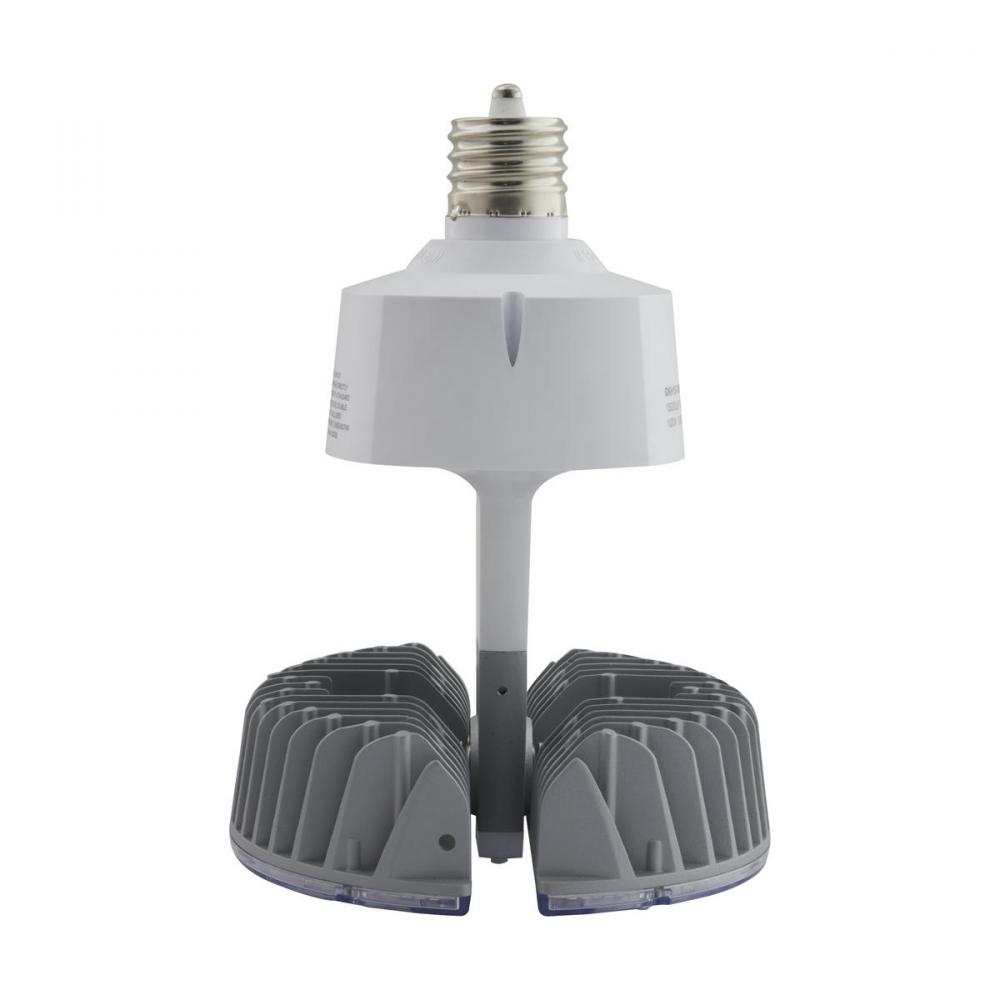

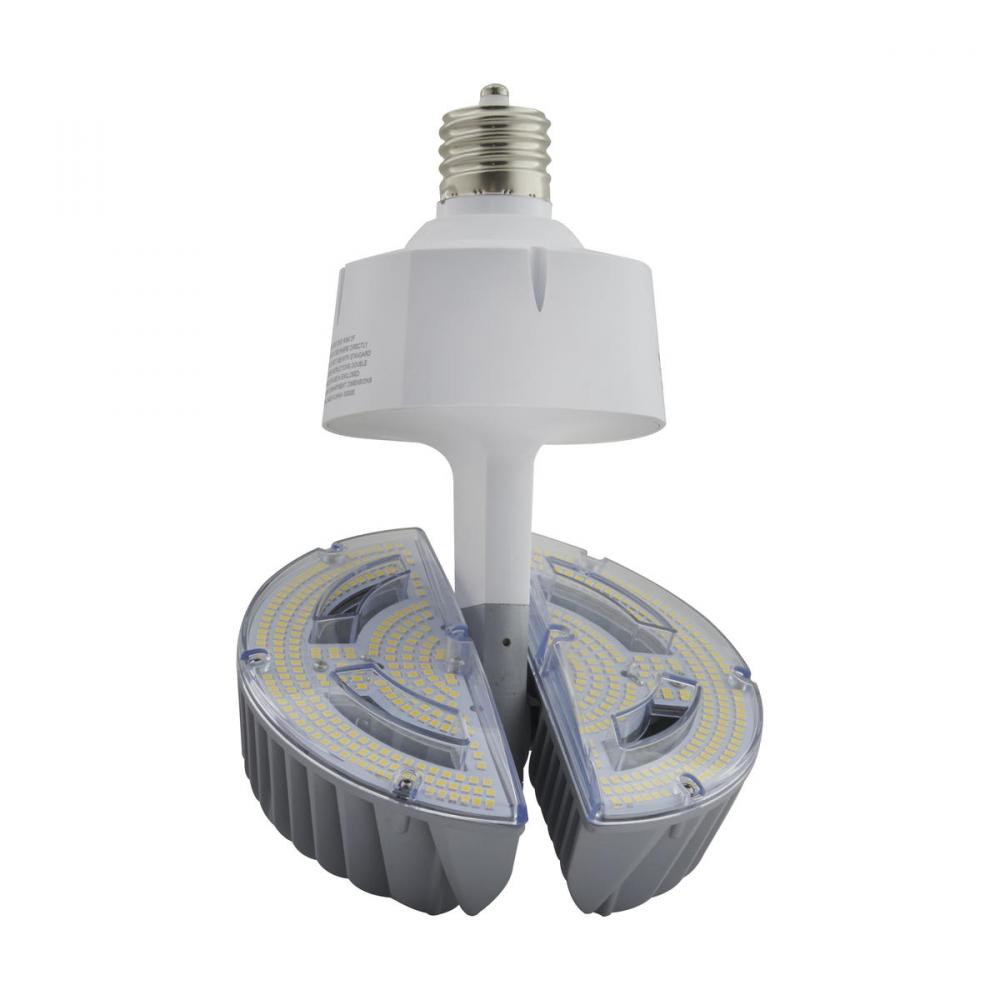

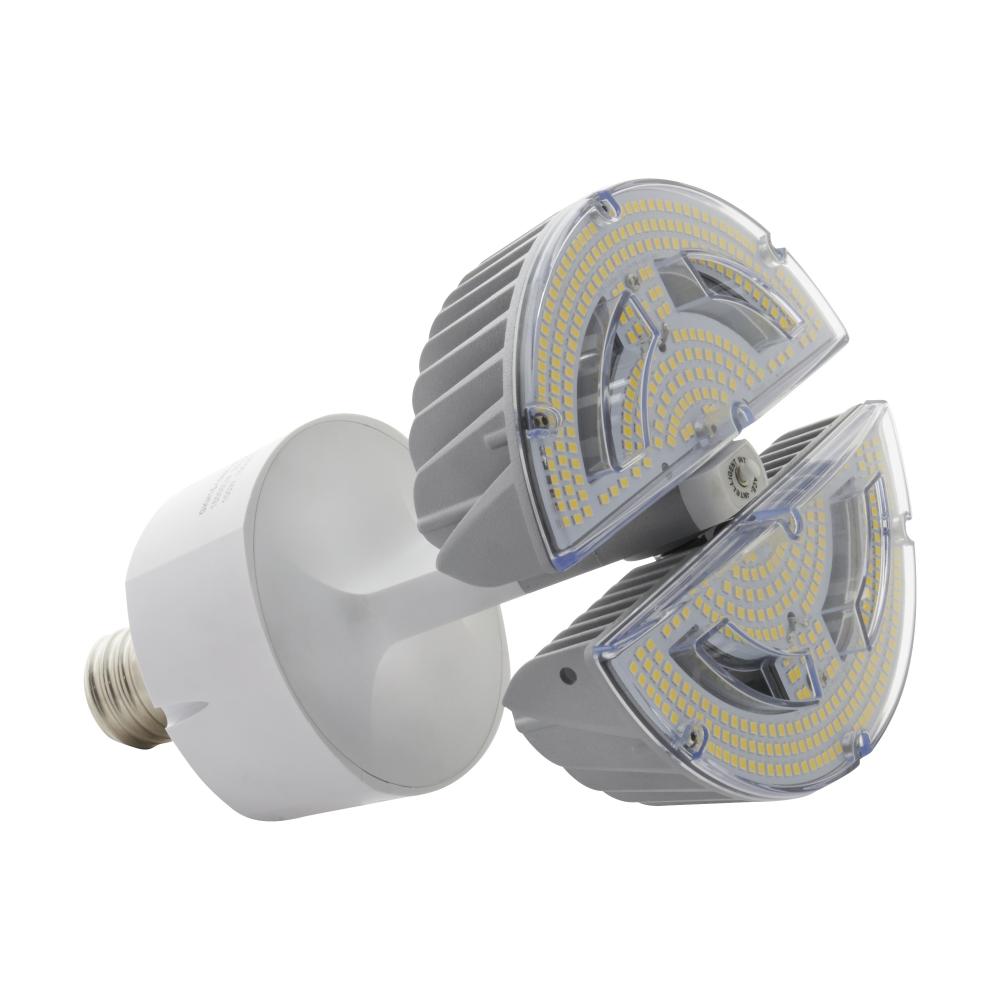

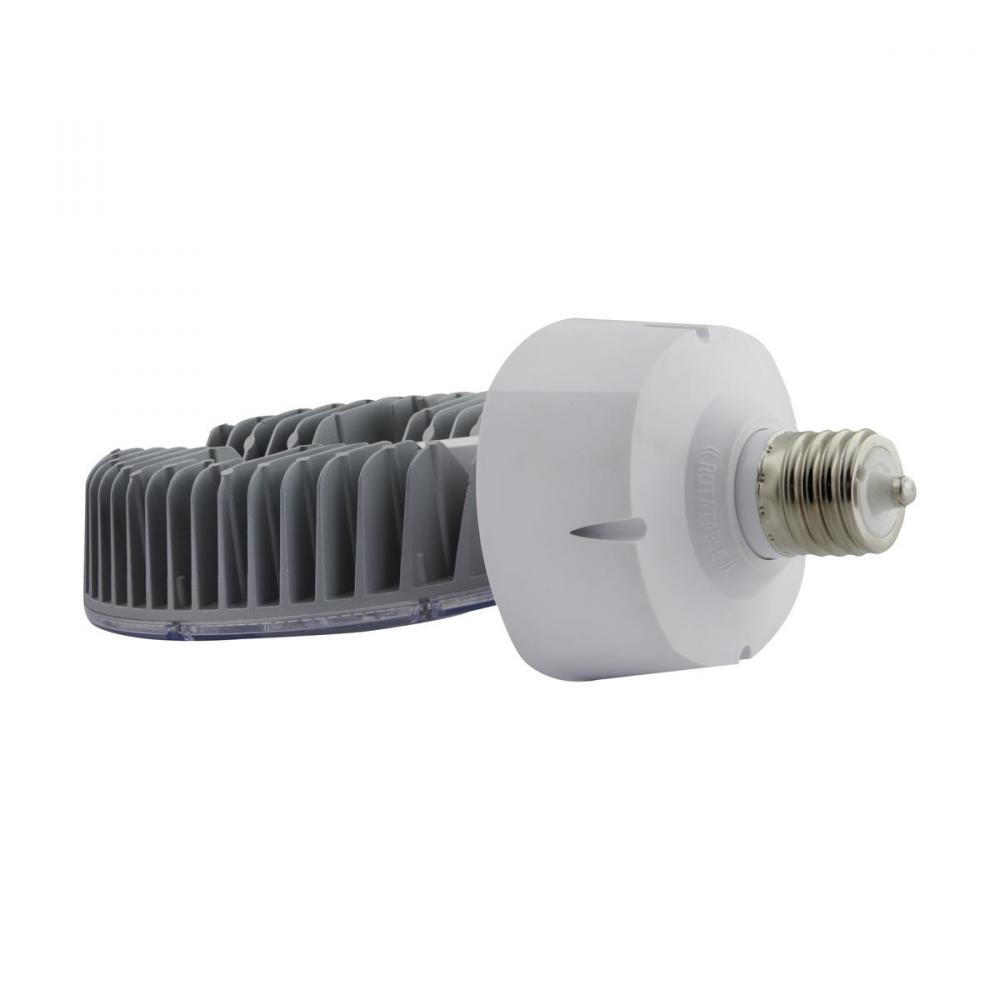

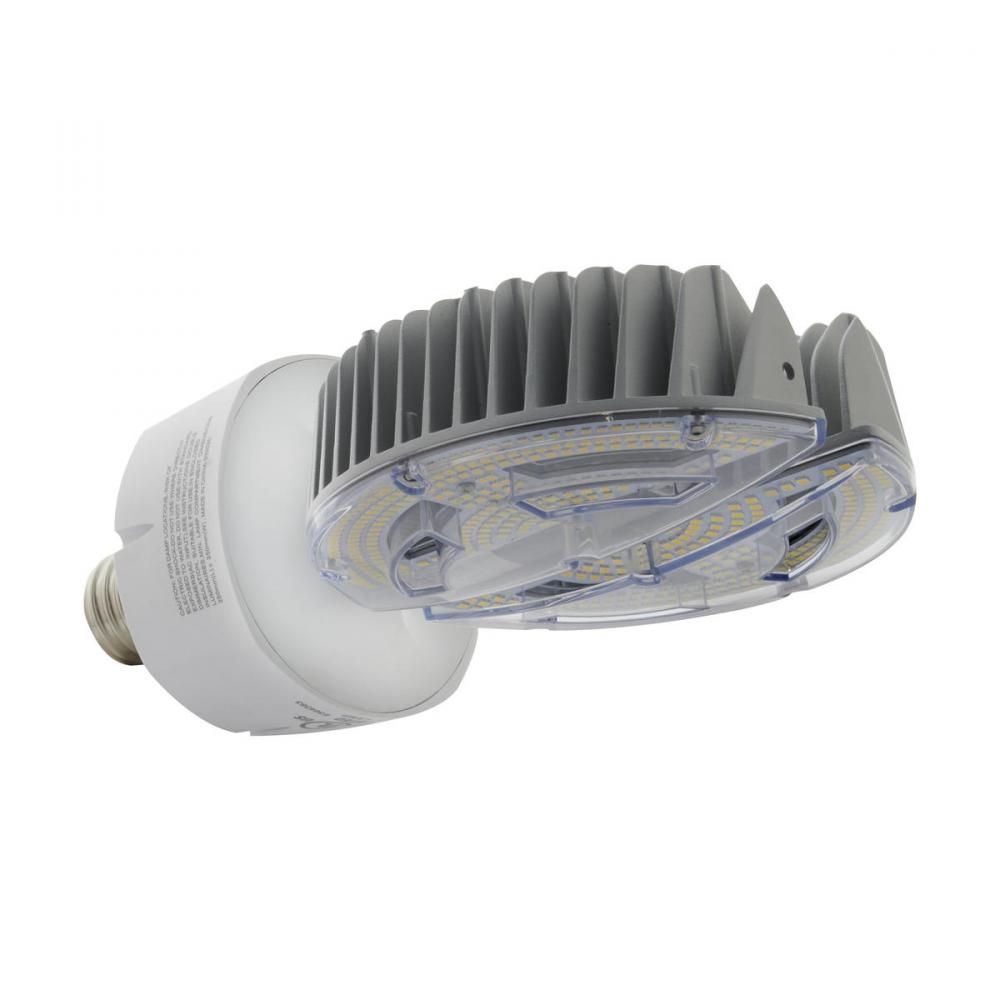

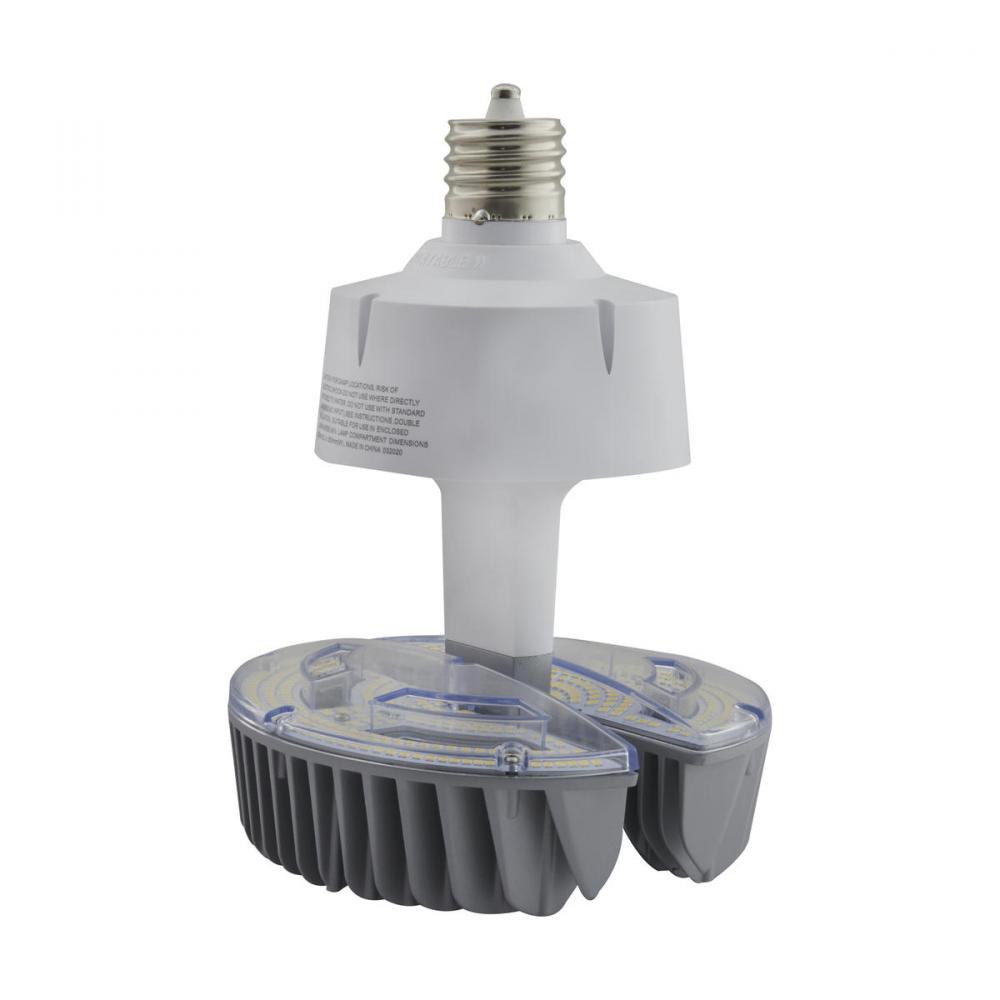

100 Watt; LED HID Replacement; 5000K; Mogul extended base; 100-277 Volt (S13127) by Satco Products Inc.
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
246
00
/
/ 1
($246.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S13127
Dimensions:
Width: 4.60"
No Finish
Availability:
- Manufacturer has 360 items available.
Description
Details
Downloads
100 Watt; LED HID Replacement; 5000K; Mogul extended base; 100-277 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
4501-5000
Wattage:
100w
Category:
LED
Sub-Category:
HID Replacements
Volts:
100V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
Integrated LED
Diameter:
4.6
EA Length:
14.23
Harmonized Codes:
8539.52.0091
Length:
12.35
Lumens:
15000L
Shap Carton Width:
8.73
Ship Carton Height:
6.48
Ship Weight:
3.56
Warranty:
5 Year Limited - Hi-Pro
Weight:
3.19
BAA Compliant:
No
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Universal
Carton Cubic Feet:
0.4659
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Dimmable with optional modules
DLC Approved:
Yes
DLC Classification:
Standard; Standard; Standard
DLC ID:
PL66LMJ6RES1; PLDRT7BU9AXX; PLUM173LZEGB
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B); Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B); Replacement Lamps for High-Bay Luminaires (Type B)
Efficacy:
150.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 12.35 inches, MOD: 4.60 inches
Feature 2:
Clear Finish
Feature 3:
Damp rated for indoor and outdoor use
Feature 4:
Mogul Extended Base
Feature 5:
Material: Aluminum
Feature 6:
Lens Material: Polycarbonate
Feature 7:
Has sensor
Feature 8:
FCC and RoHS Compliant
Feature 9:
5-year limited warranty
HID Equivalent:
350W
Housing Color:
White/Grey
Incandescent Equivalent:
400W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP64
JA8 Compliant:
No
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
SATCO|NUVO's S13127 100-watt multi-angle rotating base LED lamp with a folding panel design replaces HID, CFL and incandescent lighting indoors and outdoors. Applications consist of: high bays, low bays, garages, gymnasiums and other high ceiling appli
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 9.85 in. Width: 9.85 in. Depth: 11.93 in.
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
Open Fixture: -29C (-20F) to +60C (+140F); Closed Fixture: -30C(-22F) to +45C(+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Has Photocell
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
19
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's multi-angle rotating base LED lamp with a folding panel design replaces HID, CFL and incandescent lighting indoors and outdoors. Applications consist of: high bays, low bays, garages, gymnasiums and other high ceiling applications. Optiona
SDS class:
LED_Lamp
Short Description:
100W/LED/HP360/850
Style:
Utility
Technology:
LED
Thermal Management:
When the lamp body temperature is > 203F, the output will reduce to 75 percent; When the driver temperature is >257F, the output will reduce to 55 percent.
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
14.20%
Wattage Selectable:
No
Watts:
100W
Manufactured By:
Satco Products Inc.
