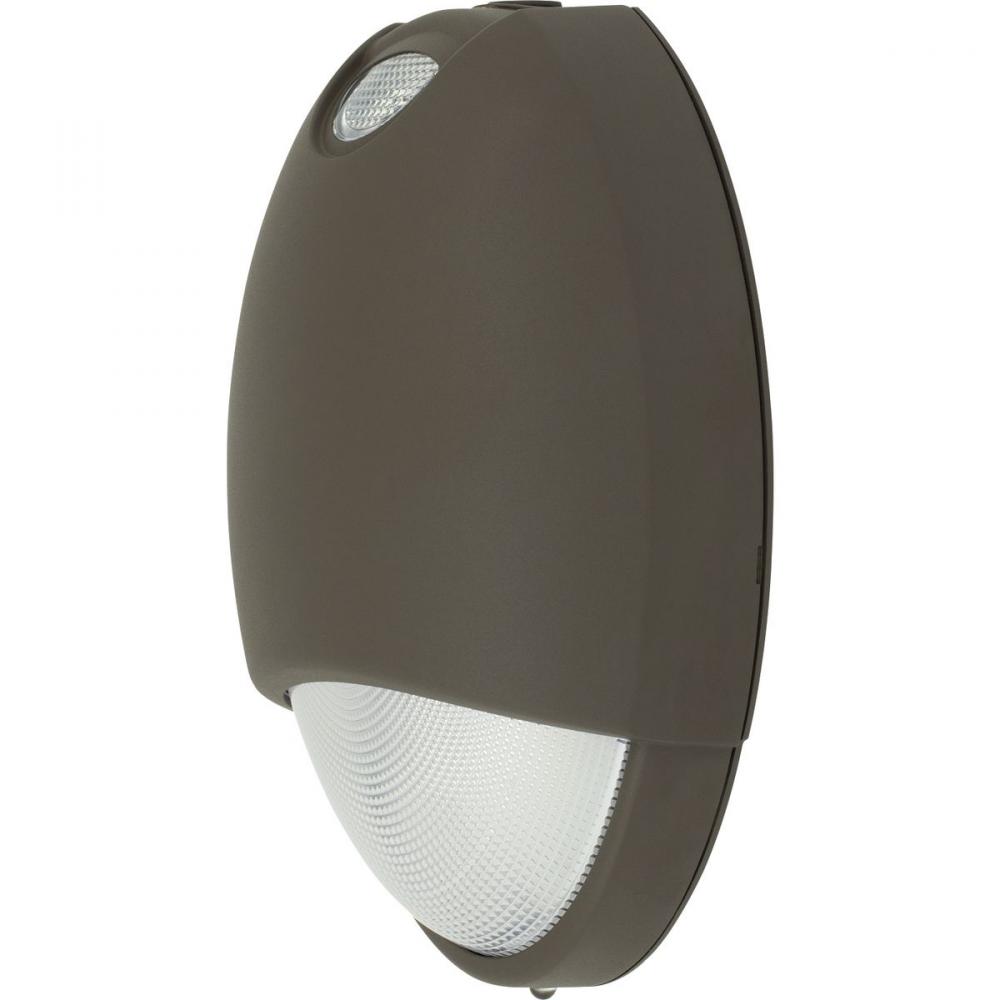

Decorative LED AC/Emergency Light (1VHU6)
The PEOEU Series offers LED performance in "normally on" AC and emergency lighting modes. The unit has a prismatic polycarbonate refractor with a durable die-cast aluminum housing with a durable dark bronze powder coated finish. The housing is fully sealed and gasketed. It is designed for wall mounting with a universal K/O pattern in the back-plate for installation to most standard size junction boxes. Illumination is provided by 2 high power LEDs driven at 3 watts each. The PEOEU Series can be applied in areas that are susceptible to rain and severe moisture, such as parking decks and outdoor commercial applications.
Downloads
Product Specification
Item #
1VHU6
Dimensions
Height: 10.50"
Width: 6.13"
Length: 10.47"
Additional product details
Internal #
1VHU6
Category
Utility
Subcategory
Emergency Lights
Finish
Bronze
Style
Traditional
Option
Energy Efficient
, Wet Rated
, LED
, Title 20
Mount Type
Flush Mount
Kelvin
5001-5500
Location Rating
Wet Rated
Category
Exit Sign/Emergency
Finish
Bronze
Option
Energy Efficient
, Title 20
, Wet Rated
Family
Exit Signs
Glass
Prismatic
Voltage
Universal 100-300 VAC
Number of Bulbs
2 Bulbs
Bulb Type
LED
Depth
3.63
Introduction Date
01/16/2017
Kelvin
5500
Keyword(s)
exit;emergency
Length
10.47
Material
Die-Cast Aluminum
Ship Carton Height
4.00
Ship Carton Length
12.00
Ship Carton Width
7.75
Ship Weight
4.00
Special Features
LED life-cycle of more than 10 years.;Includes self-diagnostics feature to monitor proper operation.;Includes long-life, 4.8 VDC Nickel Cadmium battery for UL recognized 90 minute operation.;Universal 100-300VAC input.;Full re-charge within 24 hours.;Water
Vendor Ship Method
Non UPS Shippable False
Warranty
2 year full unit
Weight
4.00
Wire Included
6 in
Americans with Disabilities Act
No
Bulb Base
LED
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Oval
Certified Listed Location
Wet Location Listed
Construction Material Main Part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Refractor
Grounded Convenience Outlet included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
3
Lens Shade Material
Polycarbonate
Mount Location
Wall
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Emergency
Safety Rating
UL924
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
No
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
6.125 in W.
Included Items
Bulbs: (2) x 3 Watt LED
Call for Price
BASE PRICE:
$
288
00
/
/ 1
($288.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unavailable.
