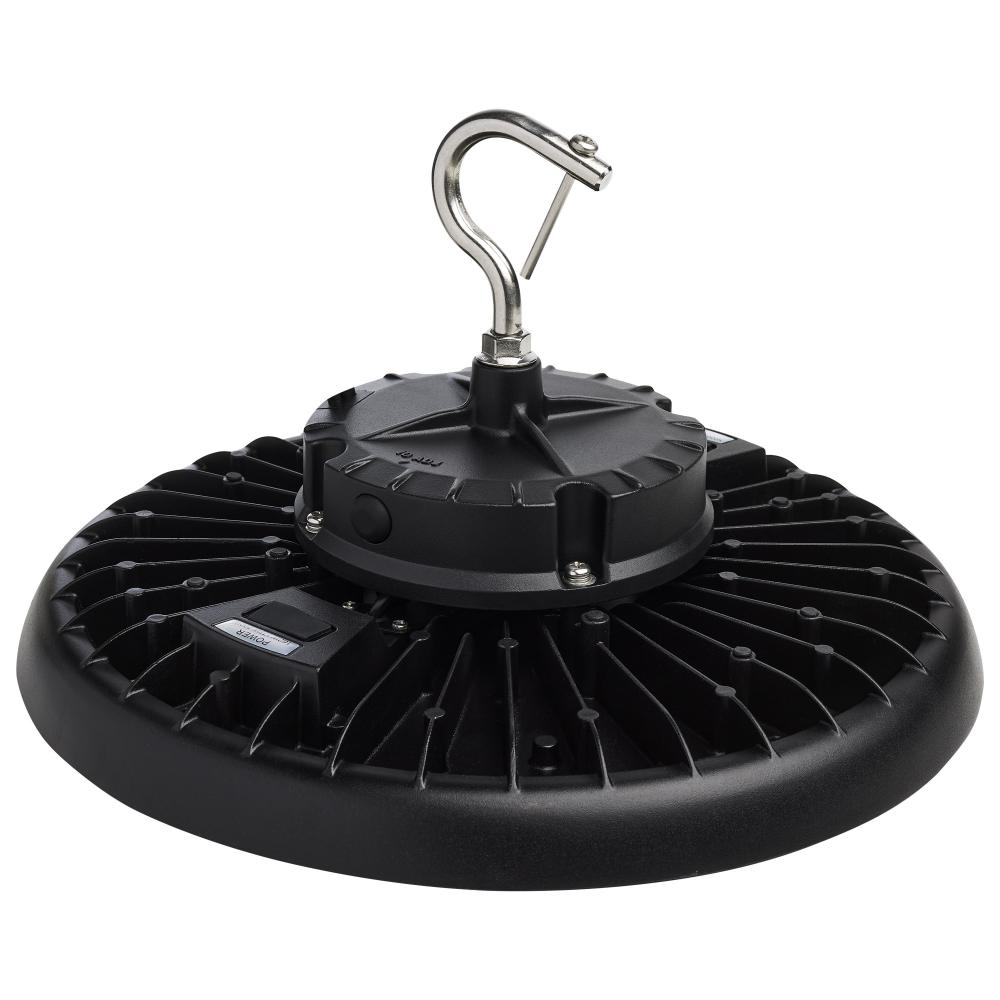

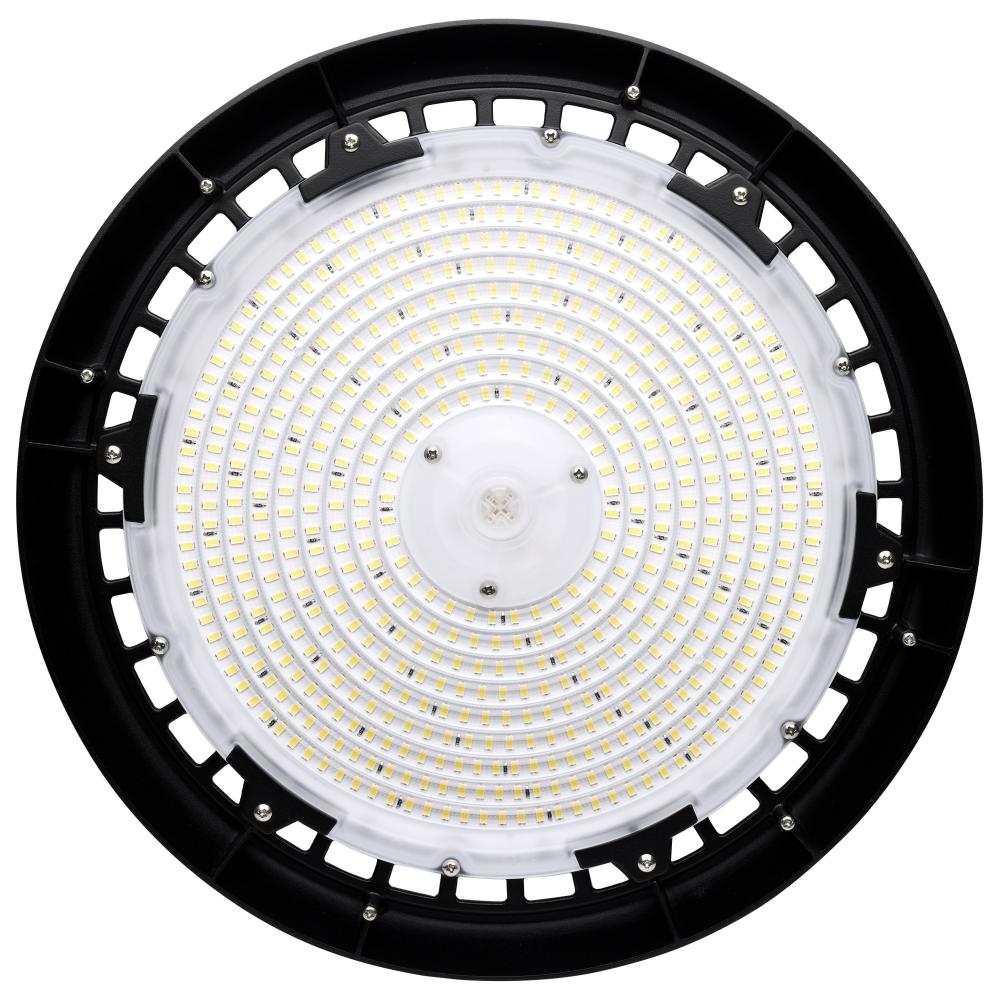

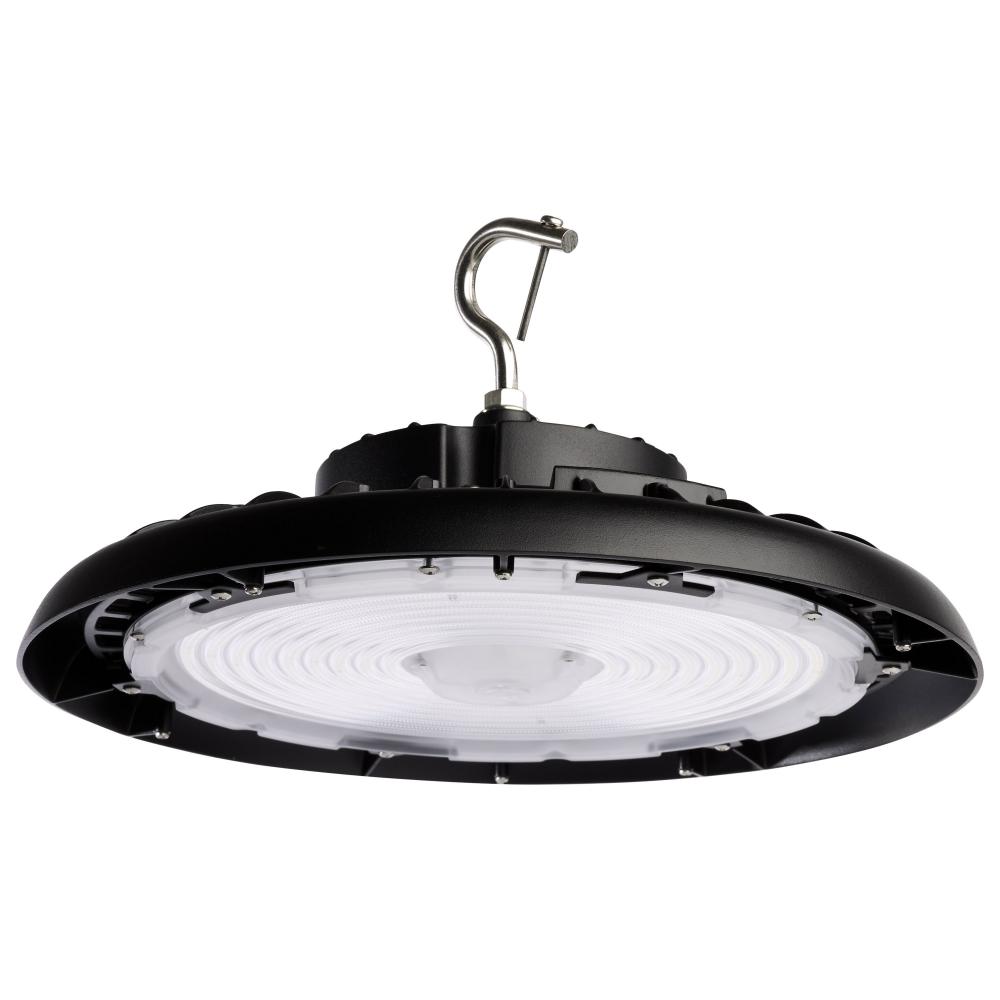

Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish (65/771R2) by Nuvo

Image may not reflect selected features
No Image
Available
Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish
additional image
BASE PRICE:
$
238
00
/ / 1
($238.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/771R2
Dimensions:
Height: 7.30"
Width: 13.40"
Black
Availability:
  • Manufacturer may be Out Of Stock.
Recommended Items
Description
Details
Downloads
Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish
Category:
Utility
Subcategory:
Other Utility
Option:
LED , Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
13.4
Dimmable:
Yes-Dimmable
Each Height:
4.92
Each Length:
14.17
Each Width:
14.17
Lumens:
22200L-28800L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
1.250-0.541/1.458-0.631/1.667-0.722A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.5717
Each Quantity:
1
Efficacy:
148.00/145.71/144.00 LPW
FCC Compliant:
Yes
Feature 1:

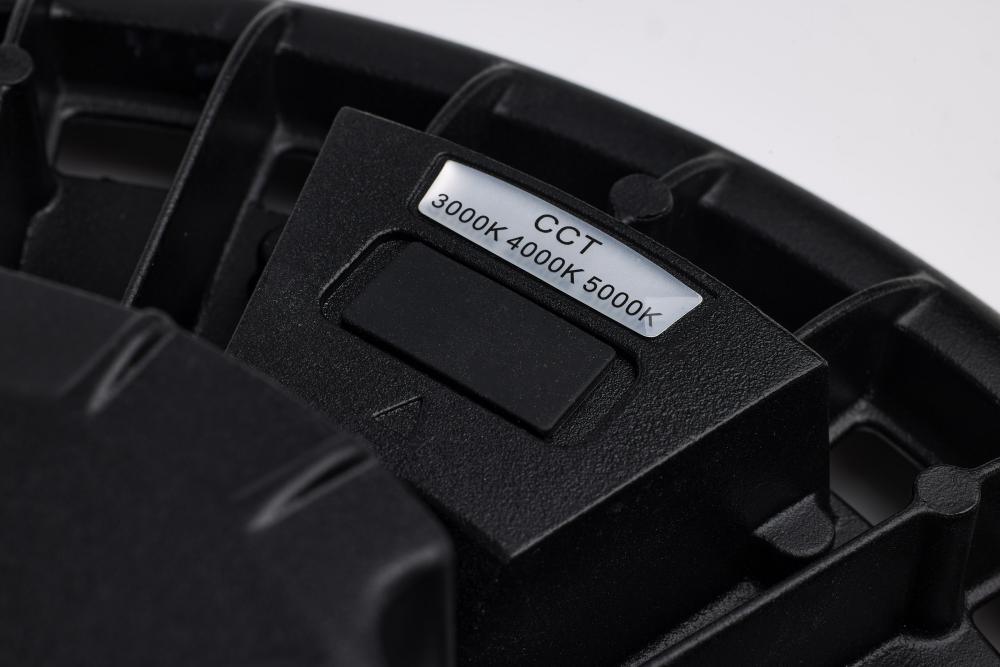

ColorQuick CCT Selectable
Feature 2:

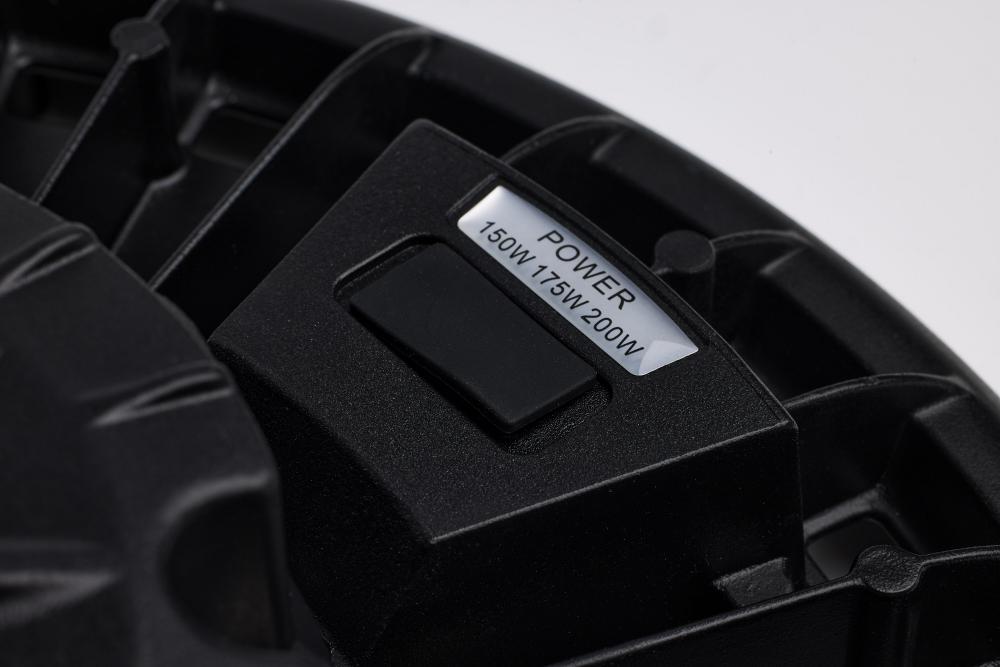

PowerQuick  Wattage Selectable
Feature 3:
0-10V Dimming Capable
Feature 4:
6 Foot Whip with Dimming Wires Included
Feature 5:

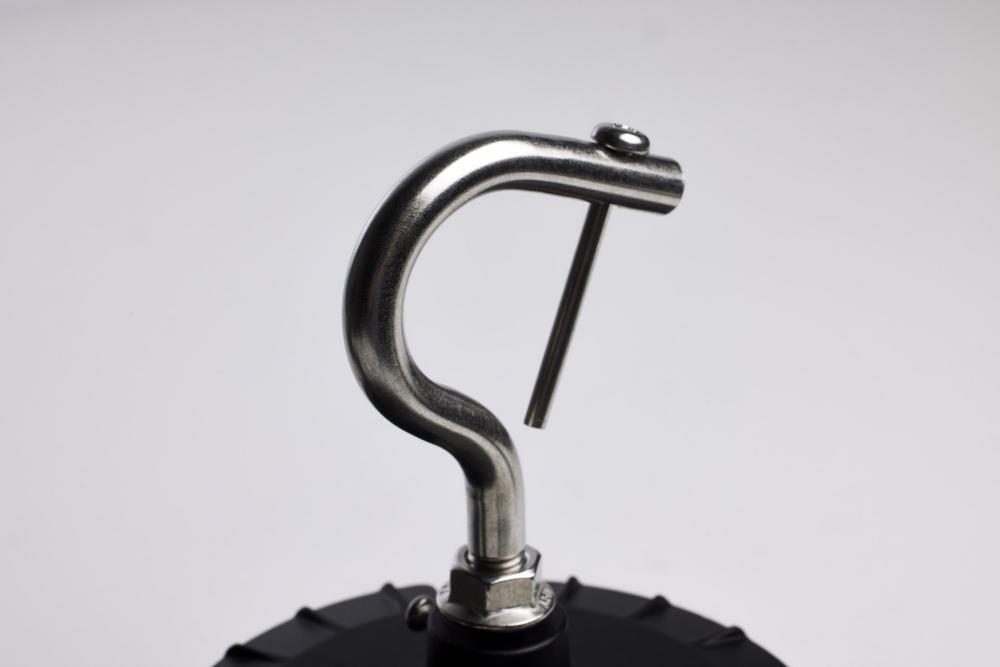

Locking Hook Mount Included
Feature 6:
Additional Mounting Accessories Available
Feature 7:
5 Year Warranty
Finish Family:
Black
Has Emergency Battery:
No
HID Equiv:
400W-450W
Impact Rating (IK):
IK08
Incandescent Equivalent:
1000W/1500W/2000W
Includes:
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor:
Indoor
Installation Notes:
Mounting Height: Up to 30 feet
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear

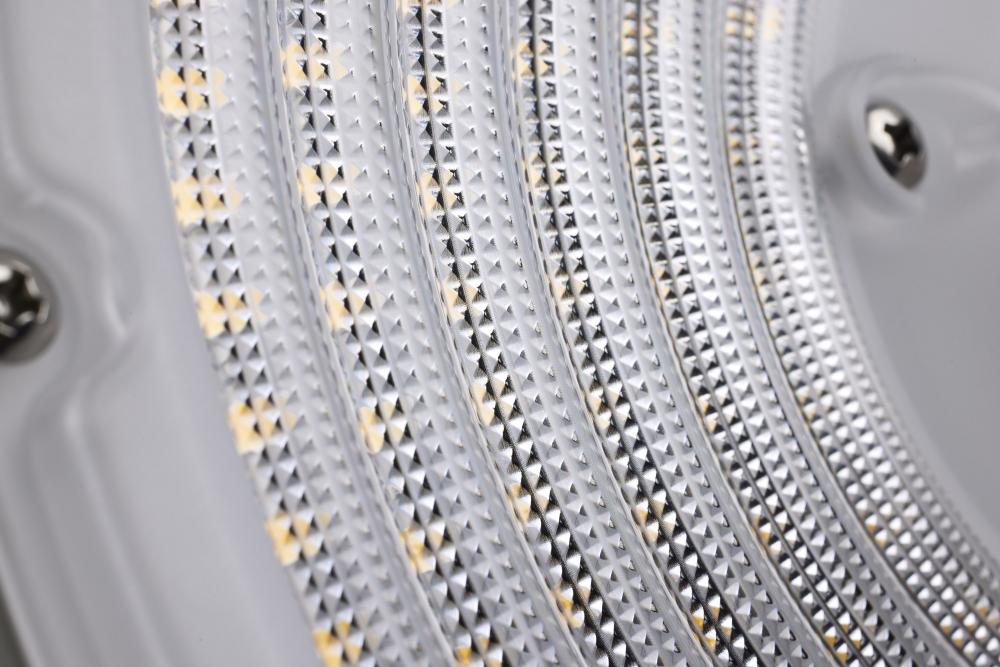

Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-771R2 Round High Bay Field Selectable Fixture is an energy efficient and maintenance-free solution to traditional HID high bay fixtures. This luminaire features ColorQuick and PowerQuick technology allowing a choice of three wattages, 1
Material:
Die-Cast Aluminum
Mounting Procedure:
Pendant Hanging Surface
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Kraft Box

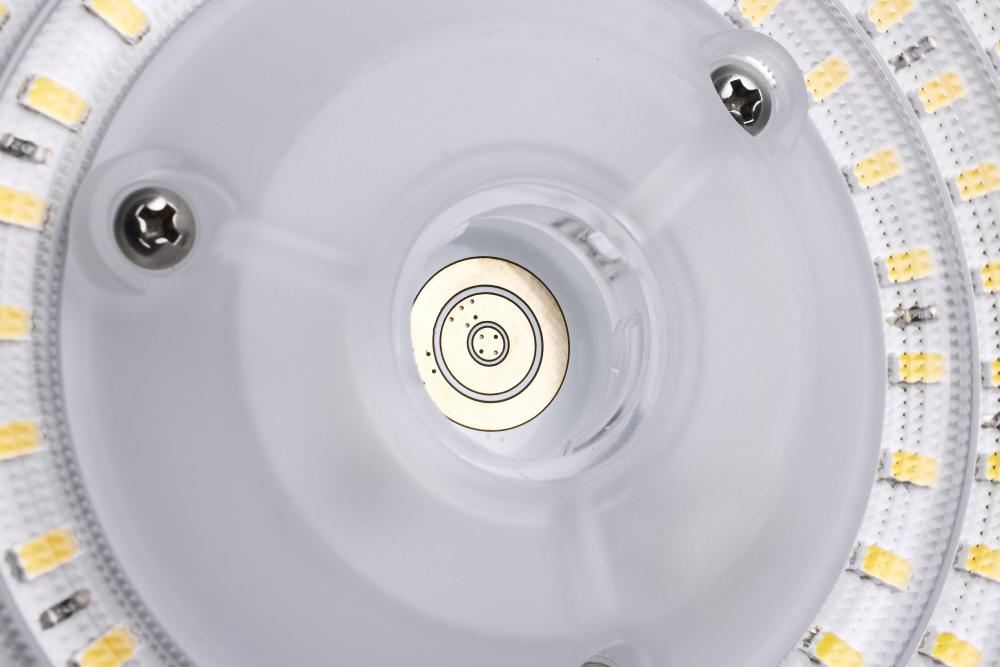

Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's Round High Bay Field Selectable fixtures are an energy efficient and maintenance-free solution to traditional HID high bay lighting. Field selectable, these luminaires feature ColorQuick and PowerQuick technology allowing a choice of three
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
LED UFO HIGHBAY CCT & WATT ADJ
Specification Notes:
Input Current at 120V: 1.69A
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
Yes
Weight Lb.:
6.42
Manufactured By:
Nuvo
