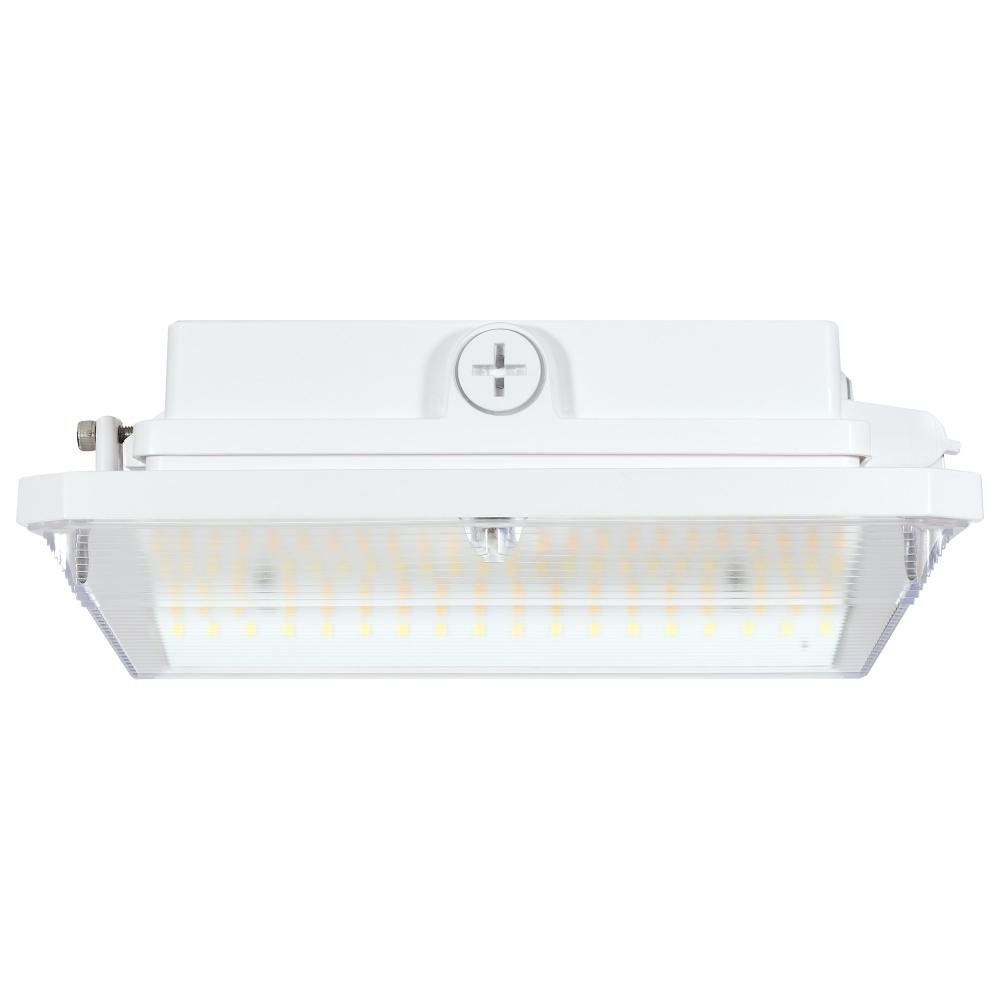

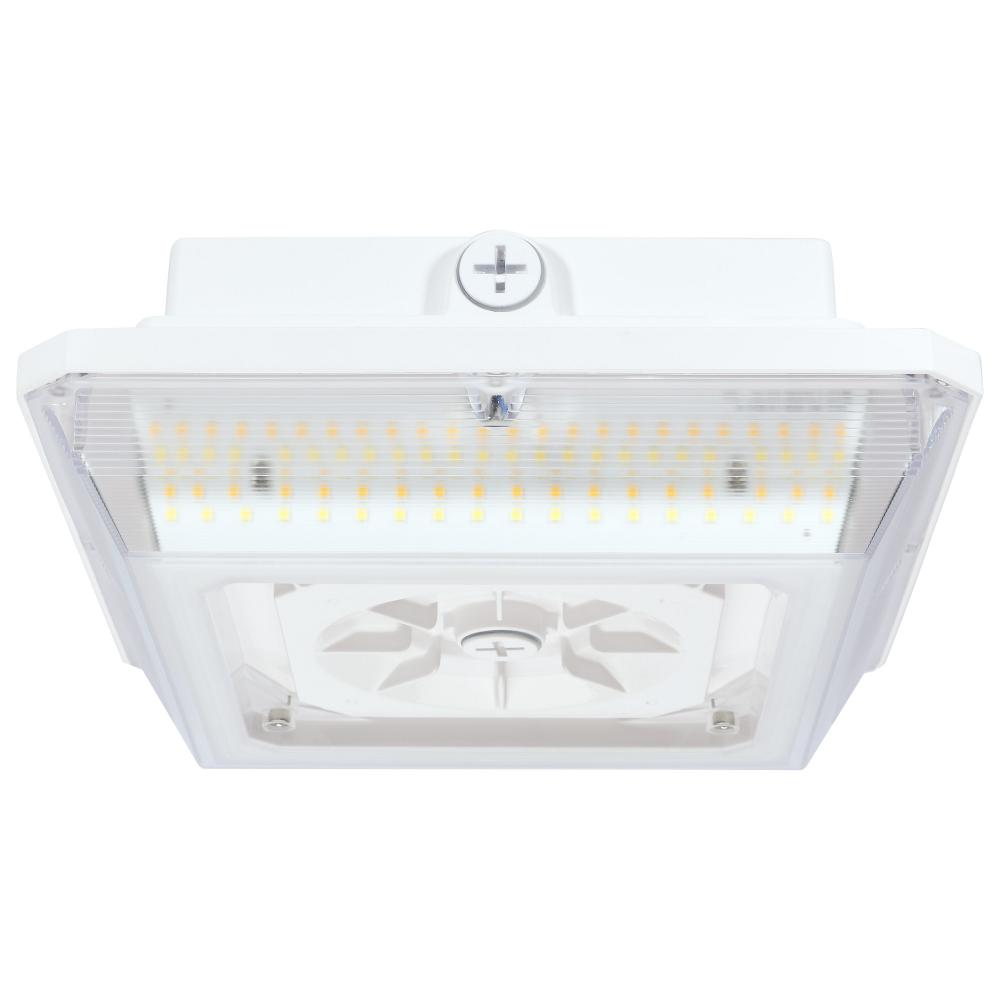

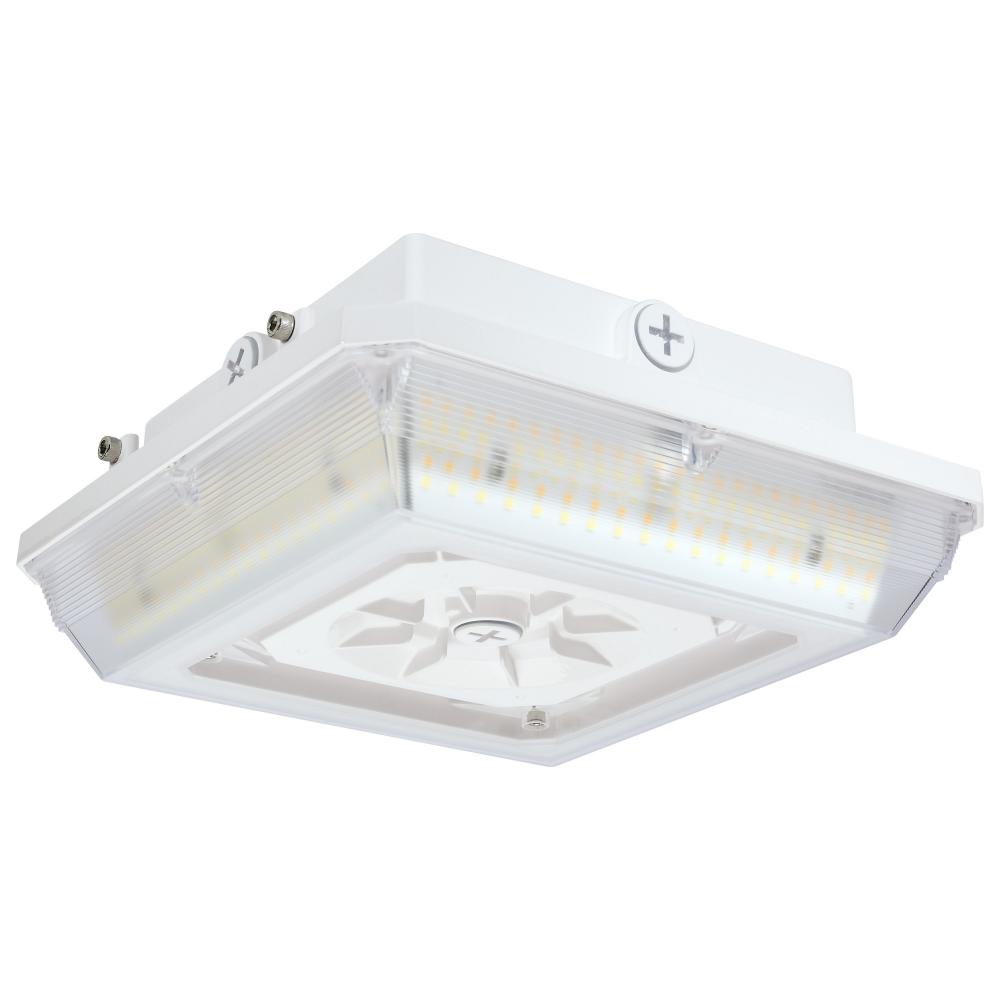

Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 60W/75W/90W Wattage Selectable; (65/635) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
262
00
/
/ 1
($262.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/635
Dimensions:
Height: 3.62"
Width: 9.57"
White
Availability:
- Manufacturer has 135 items available.
Recommended Items
Description
Details
Downloads
Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 60W/75W/90W Wattage Selectable; White Finish
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Surface Mount
Sub Category:
Canopy Fixture
Style:
Utility
Additional Info:
Recommended Mounting Height: 15 to 20 Feet
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
11.02
Each Length:
11.02
Each Width:
5.12
Length:
9.57
Lumens:
7920L-12557L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.500-0.217/0.625-0.271/0.750-0.325A
ANSI Base:
Integrated
Beam Angle:
190
B_U_G_Rating:
B3-U4-G5
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Parking Garage Luminaires
Each Cube:
0.3598
Each Quantity:
1
Efficacy:
132.00/136.53/139.52 LPW
FCC Compliant:
Yes
Feature 1:
Wide Beam Angle for Broad Light Coverage
Feature 10:
L:9.57 inches W:9.57 inches H:3.62 inches
Feature 2:

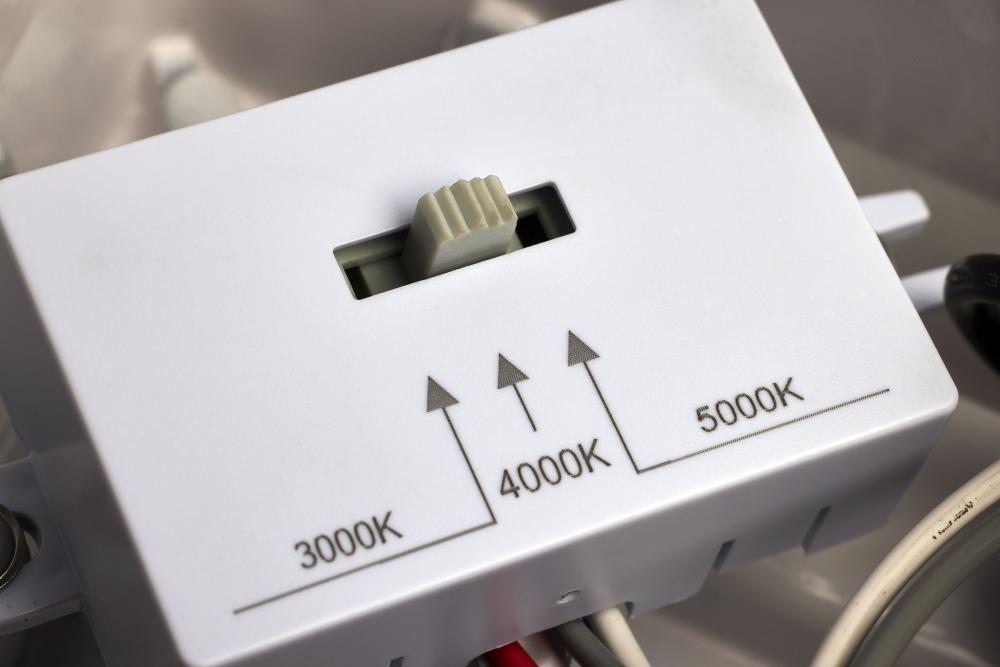

3 CCT Selectable
Feature 3:
3 Wattage Selectable
Feature 4:

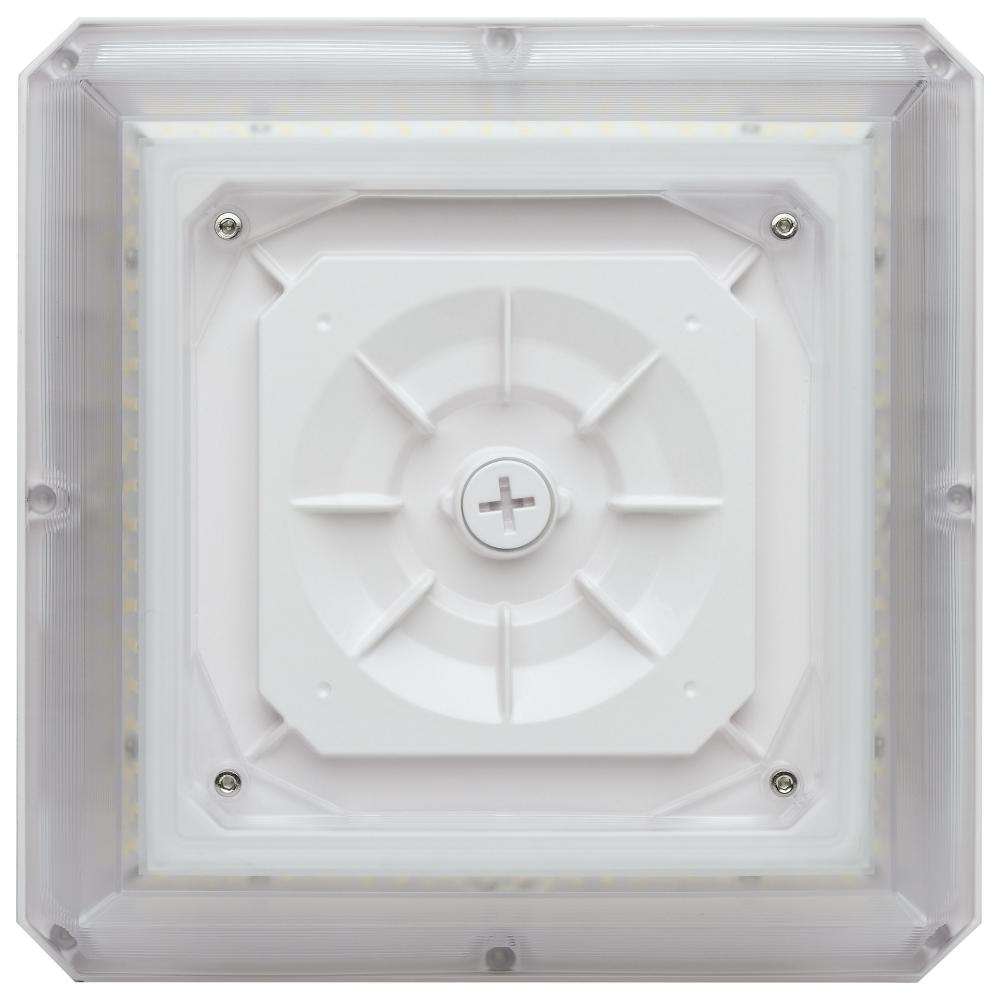

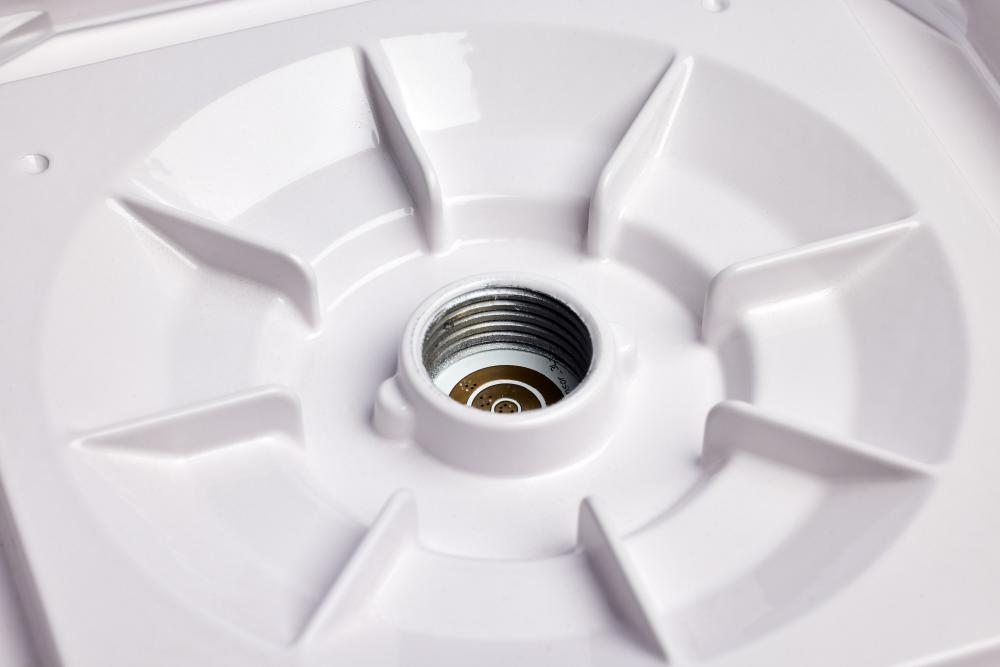

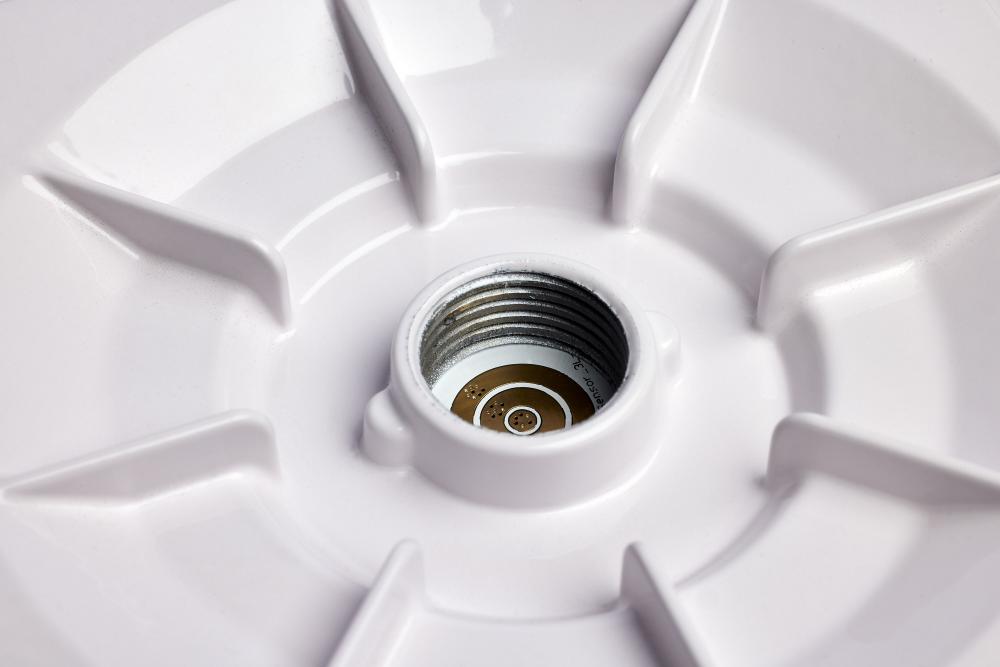

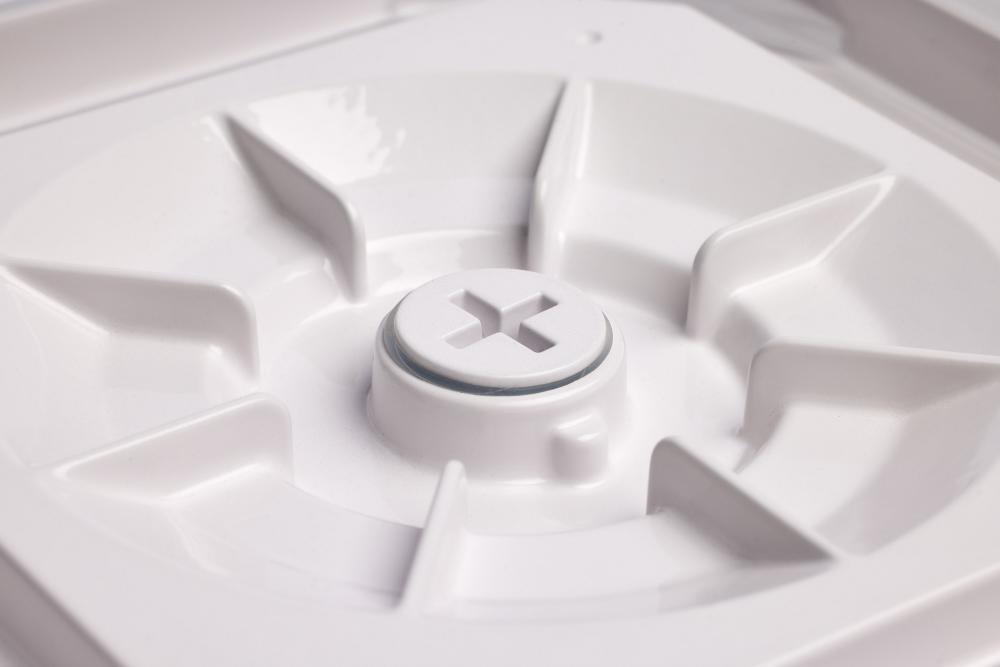

Integrated Sensor Port
Feature 5:
IK10 Vandal Resistant Lens
Feature 6:
EM Battery Backup Capable
Feature 7:
0-10V Dimmable
Feature 8:
2.5kV Built-in Surge Protection
Feature 9:
White Finish
Finish Family:
White
Impact Rating (IK):
IK10
Incandescent Equivalent:
300W
Indoor Outdoor:
Outdoor
Installation Notes:

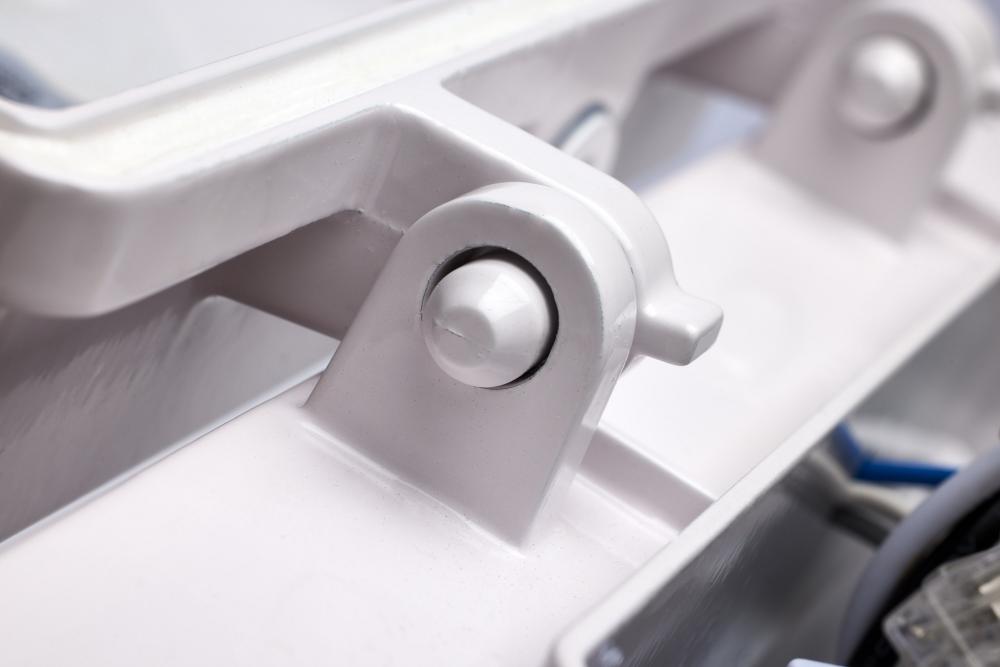

Hinged door for ease of installation
Integrated Features:
Integrated DC Sensor Port
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No

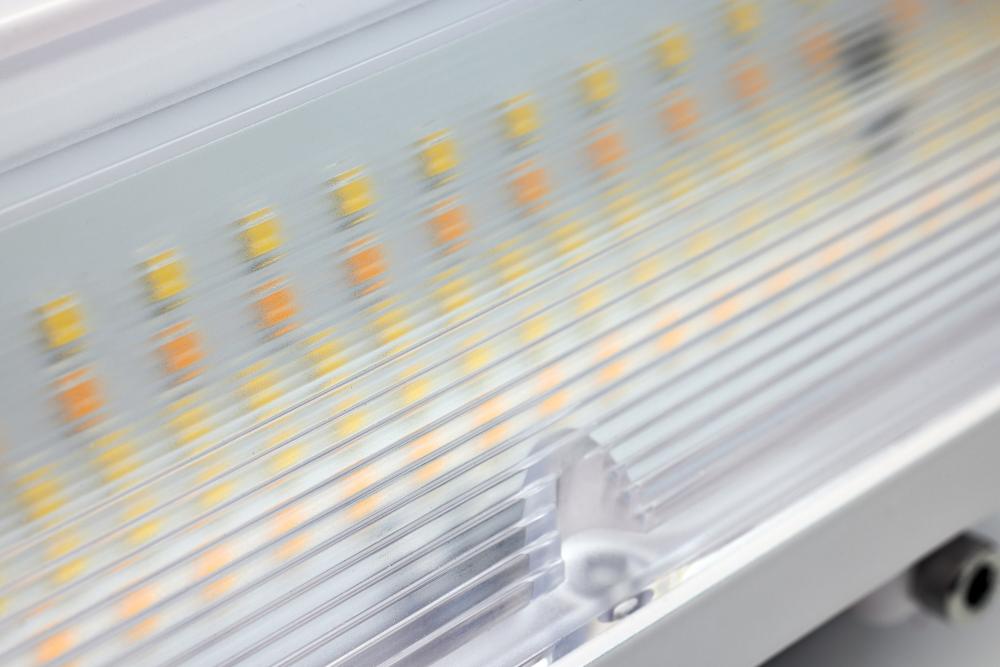

Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-635 LED Wide Beam Angle Canopy, offers cutting-edge field-selectable capabilities. Tailor your lighting experience by selecting from three color temperatures (3K, 4K, 5K) and three wattage options (60W, 75W, 90W.) The canopy comes in a
Material:
Die-Cast Aluminum

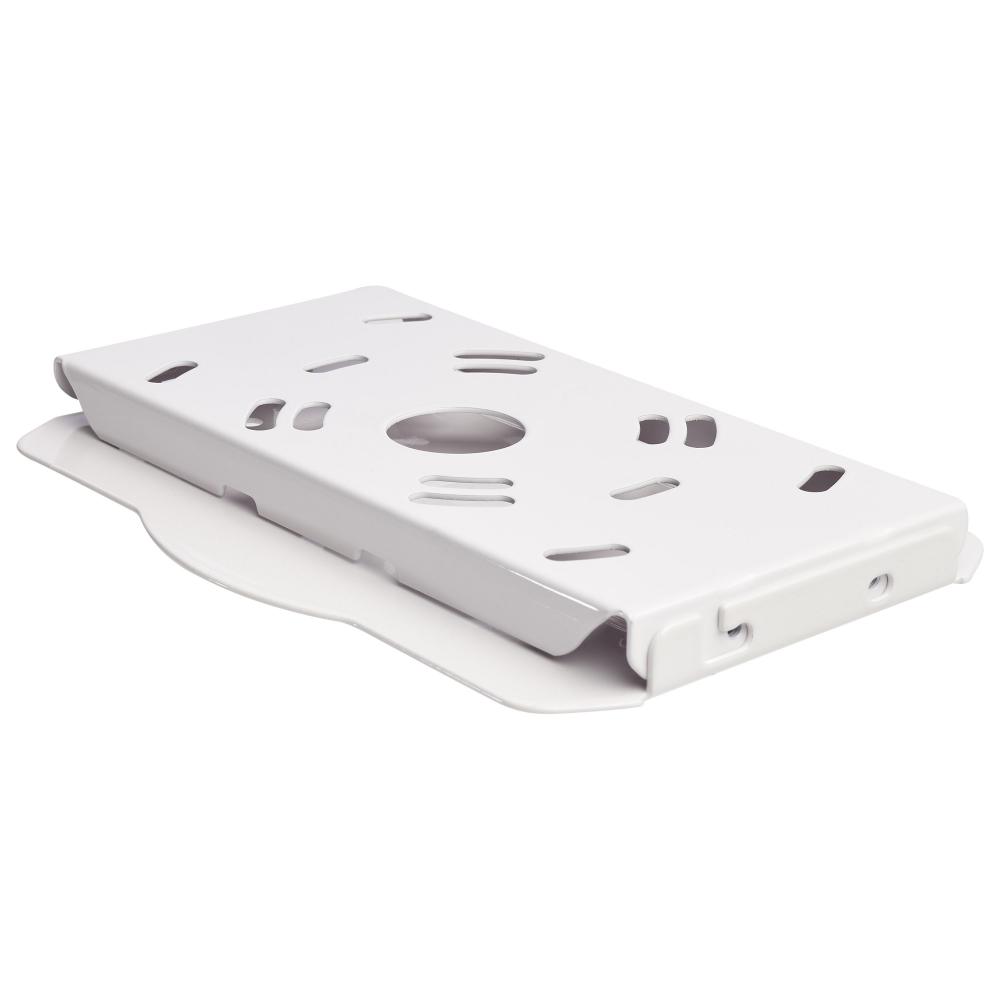

Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Brown Box

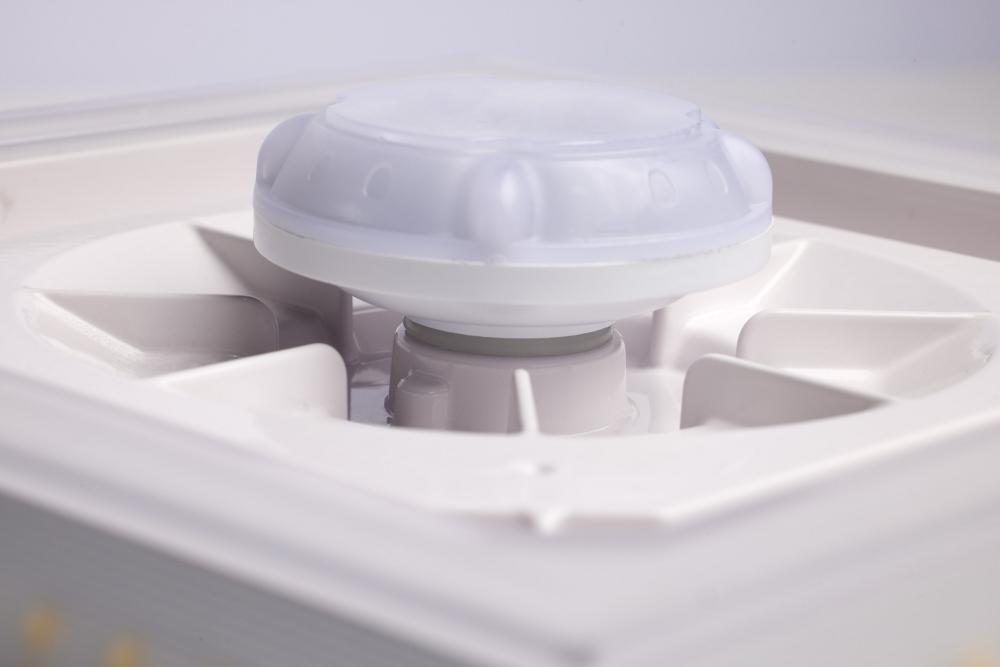

Photocell:
Optional Add-On
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Experience the versatility of SATCO|NUVO's LED Wide Beam Angle Canopy, equipped with cutting-edge field-selectable capabilities. Choose from three color temperatures and three wattage options. Additionally, the integrated sensor port makes the installa
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
LED WIDE BEAM ANGLE CANOPY
Specification Notes:

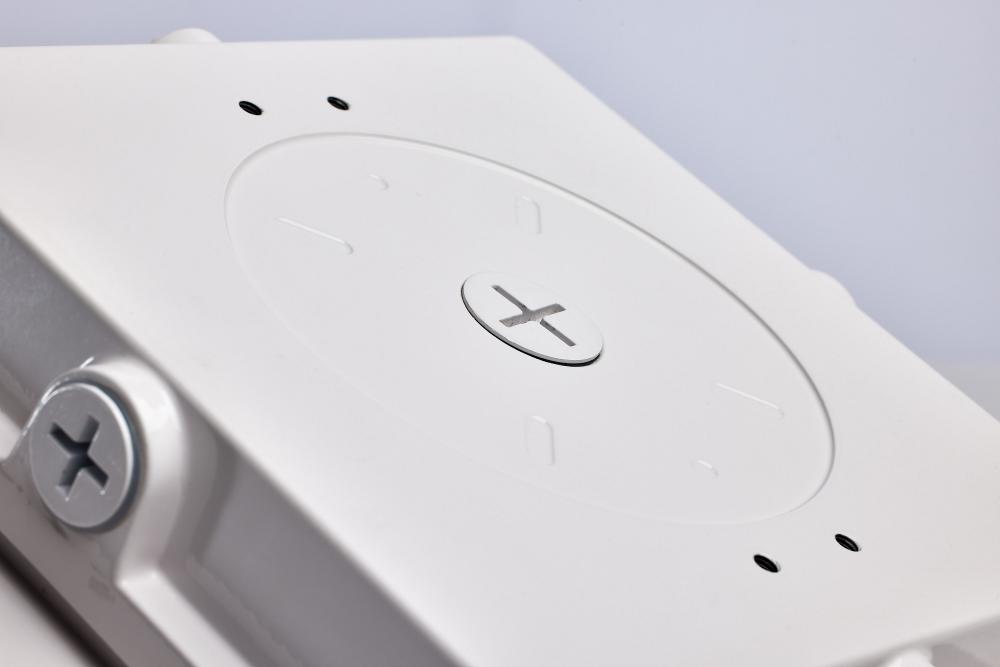

Multiple half-inch knockouts; Three quarter inch back knockout for pendant applications
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
4.47
Manufactured By:
Nuvo
