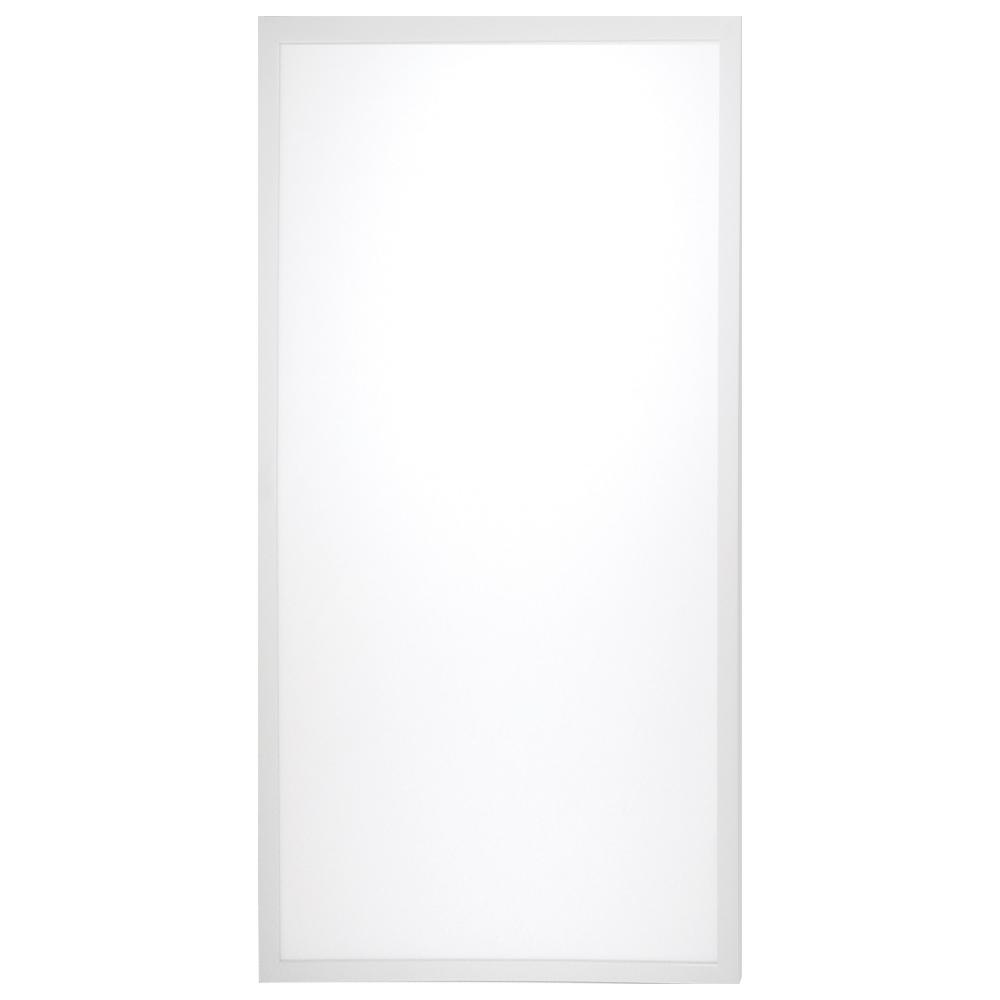

LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-347 Volt; (65/586R1) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
413
00
/
/ 1
($413.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/586R1
Dimensions:
Height: 2.88"
Width: 23.75"
White
Availability:
- Manufacturer may be Out Of Stock.
Recommended Items
Description
Details
Downloads
LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick Technology; PowerQuick Technology
Category:
Specialty Items
Subcategory:
Lighting Accessories
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Flat Panel
Sub Category:
Backlit Emergency
Style:
Utility
Additional Info:
Driver Specs - VDC38-48V; 630/810/1030mA
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
25.2
Each Length:
49.02
Each Width:
4.33
Length:
47.72
Lumens:
3300L-5750L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
3.54
Air Tight:
No
Amps:
0.300-0.086/0.400-0.115/0.500-0.144A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Standard
DLC Primary Use:
2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube:
3.0954
Each Quantity:
1
Efficacy:
110.00/113.13/115.00 LPW
FCC Compliant:
Yes
Feature 1:
3500K/4000K/5000K CCT Selectable
Feature 2:
30W/40W/50W Wattage Selectable
Feature 3:
Integrated emergency battery backup with 90-minute run time
Feature 4:
Flicker Free, Even Light Distribution
Feature 5:
0-10V Dimmable
Feature 6:
50,000 average rated hours of use
Feature 7:
DLC Listed
Feature 8:
Higher 120-347 Voltage Range
Finish Family:
White
Fixture shape:
Square
Flicker Free:
Yes
Has Emergency Battery:
Yes
IC Rated:
Yes
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO|NUVO's LED Backlit 2X4 Flat Panel 65-586R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t
Material:
Aluminum / Steel
Mounting Procedure:
Ceiling
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-17C (+1.4F) to +45C (+113F)
Pack Type:
Box
Panel Size:
2x4
Photocell:
No Photocell
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
2X4 LED EM BACKLIT FLAT PANEL
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
11.46
Wire Gauge:
14
Wire Temp Rating:
80C (176F)
Manufactured By:
Nuvo
