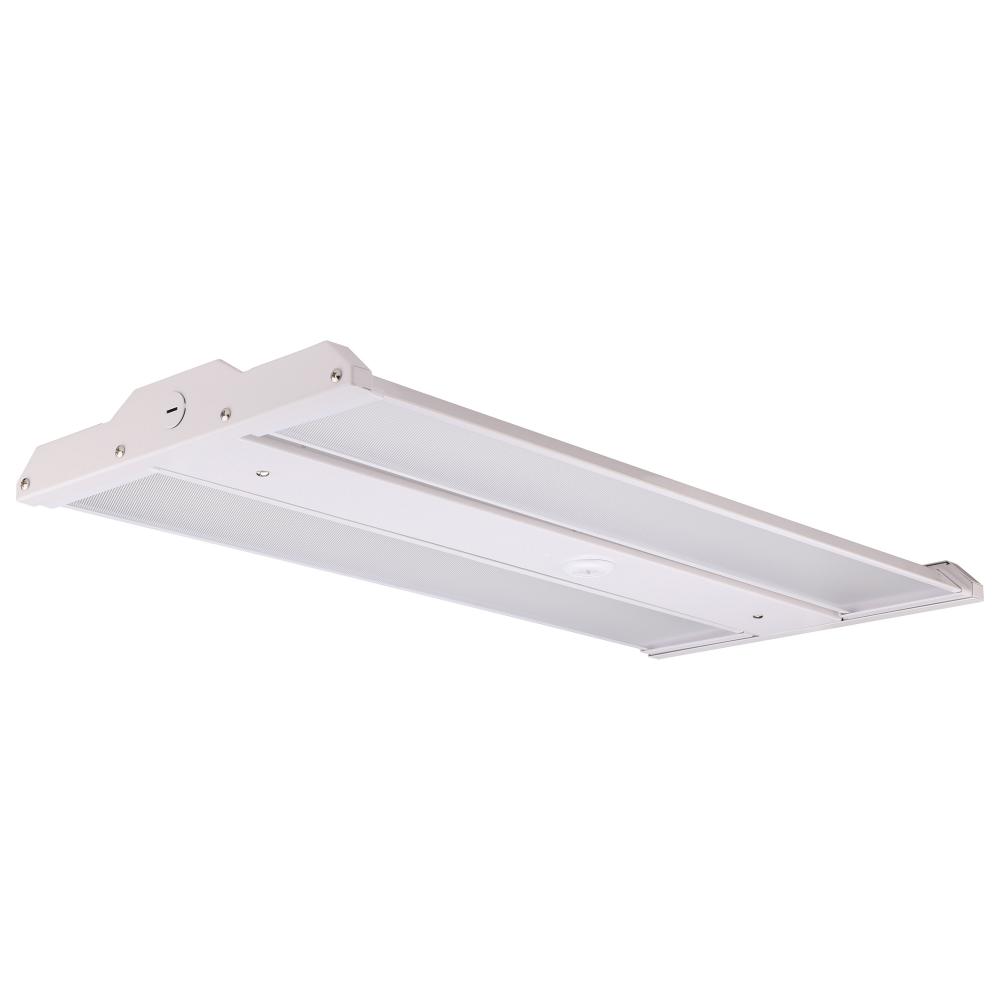

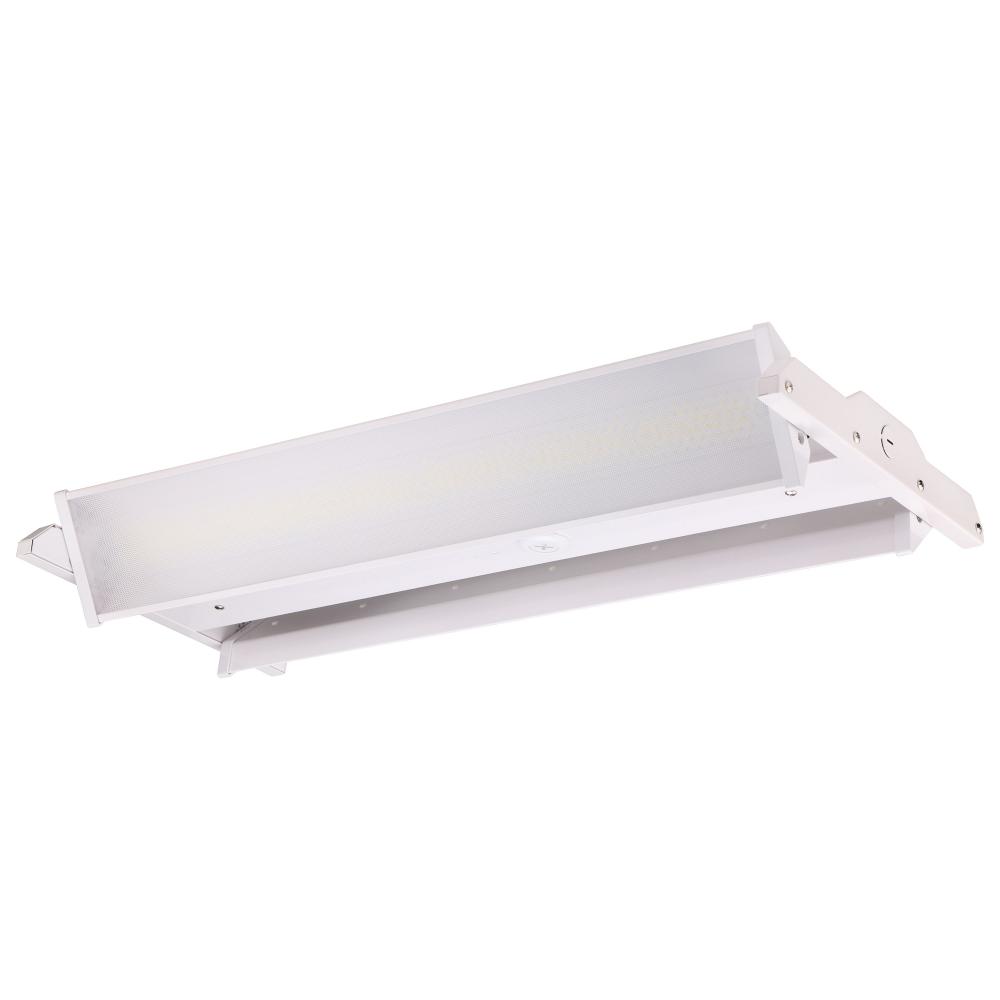

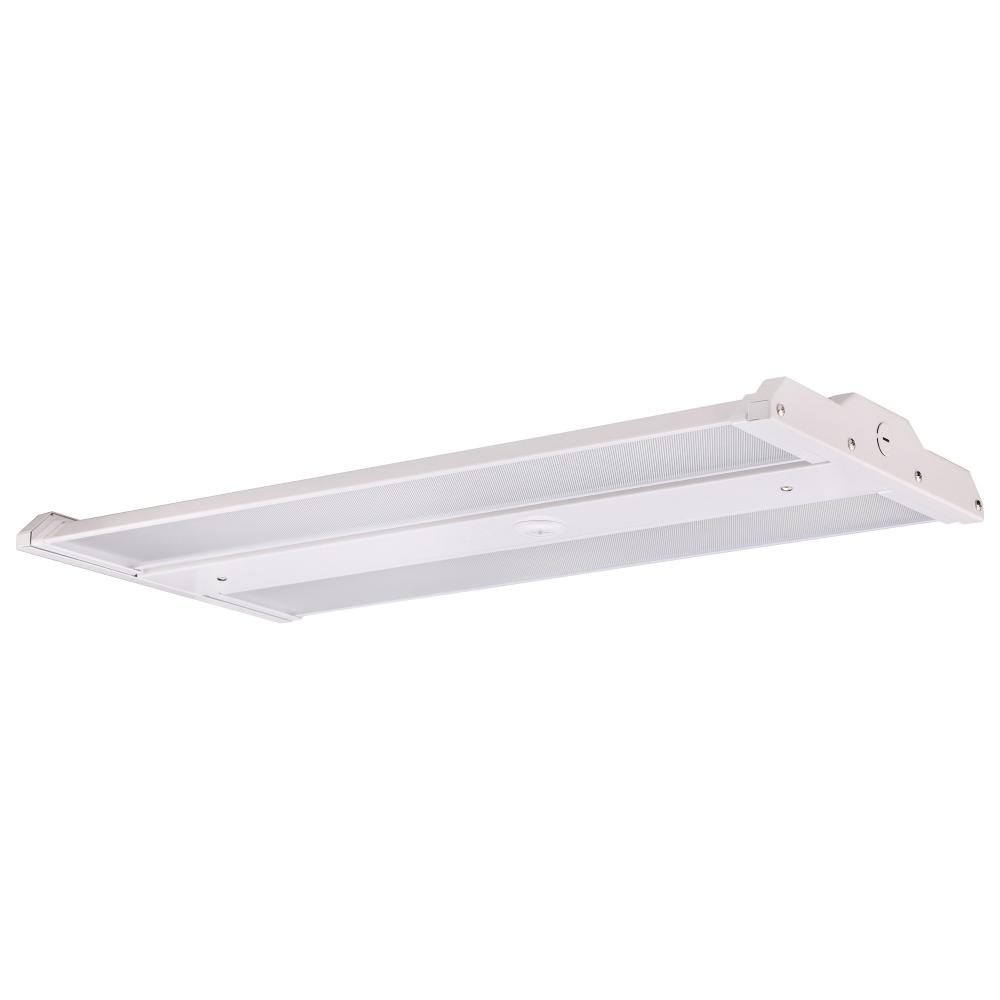

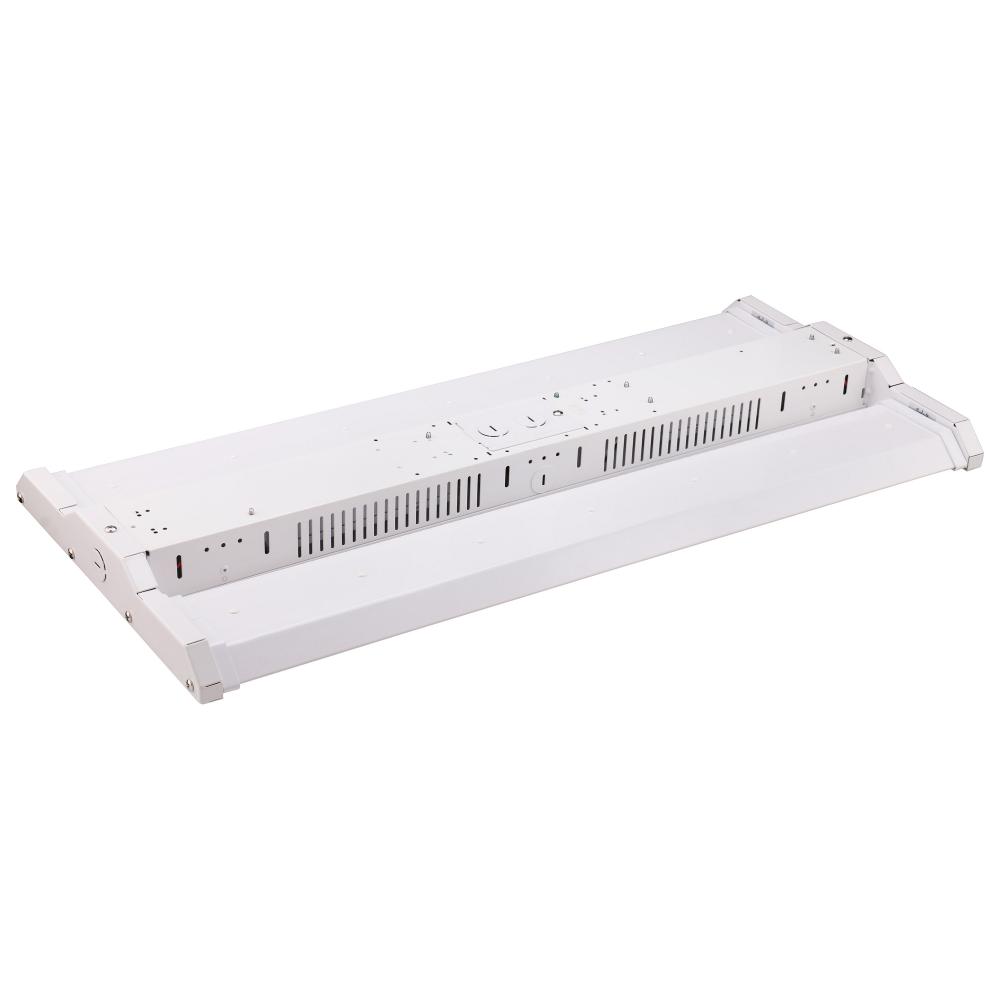

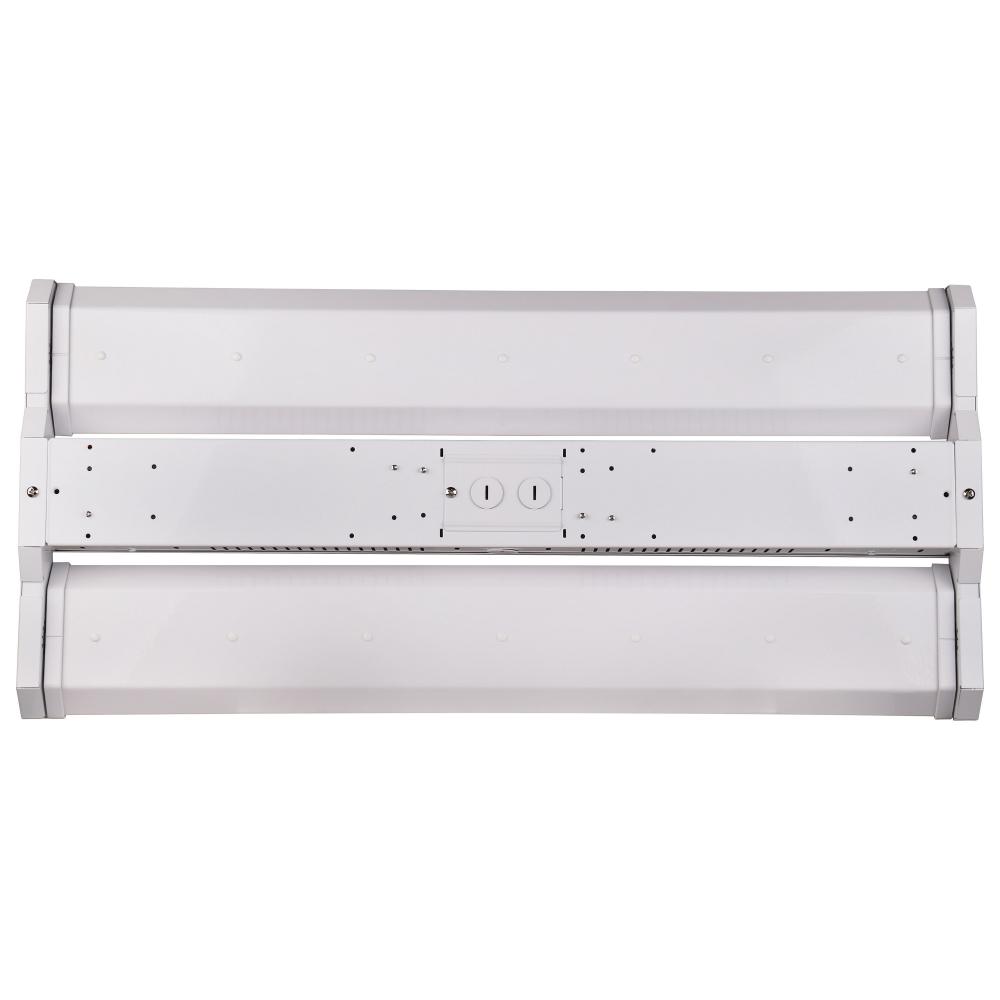

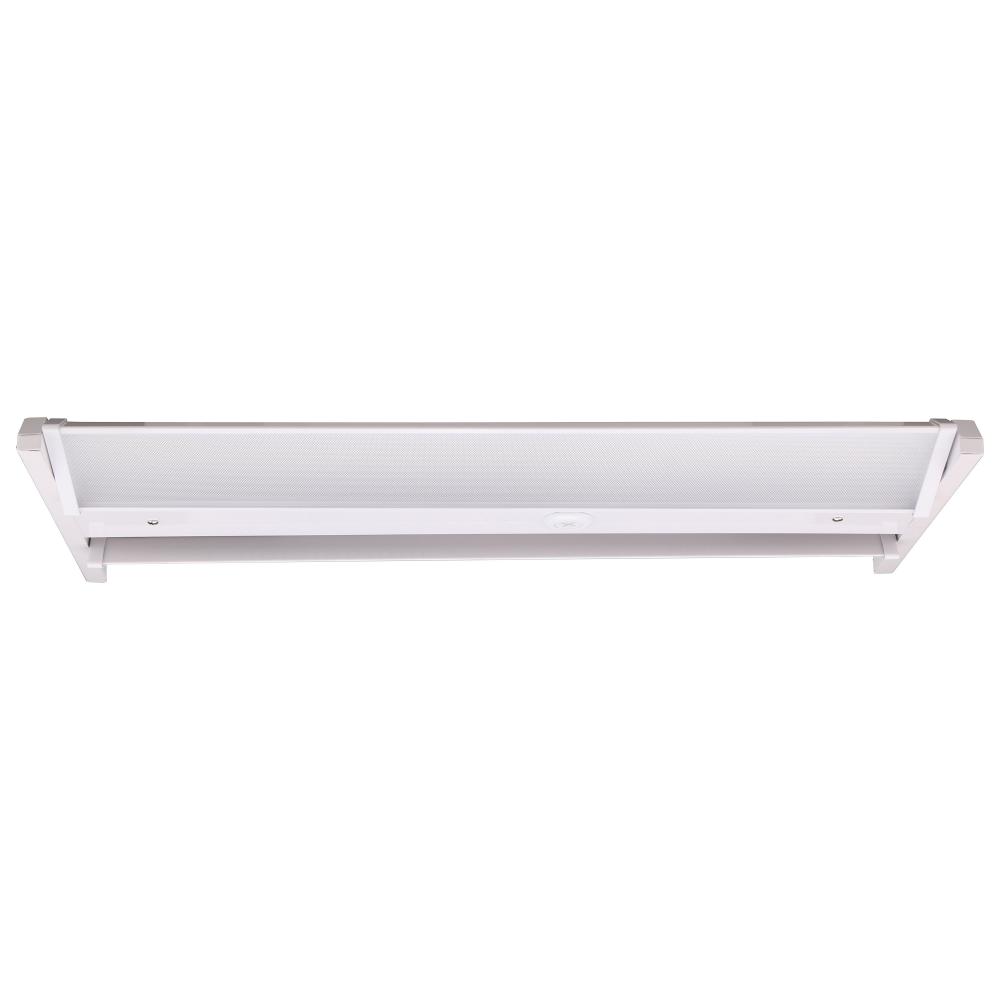

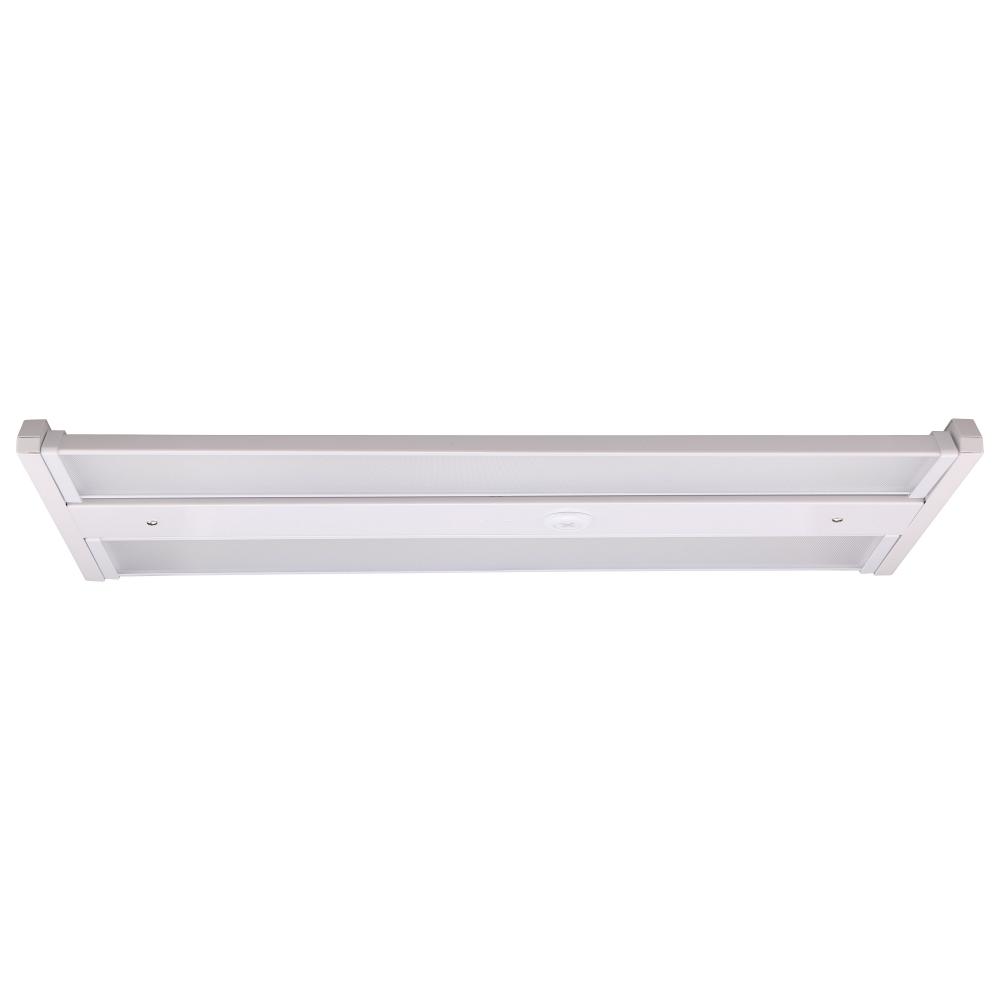

LED Adjustable High bay; 220 Watt; 5000K; Integrated Sensor Port; 120-277 Volt (65/648R1) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
382
00
/
/ 1
($382.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/648R1
Dimensions:
Height: 1.88"
Width: 14.25"
White
Availability:
- Manufacturer has 402 items available.
Recommended Items
Description
Details
Downloads
LED Adjustable High bay; 220 Watt; 5000K; Integrated Sensor Port; 120-277 Volt
Category:
Track Ltg.
Subcategory:
Linear Track
Finish:
White
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
5501-6000
Category:
Hi-Bay
Sub Category:
Linear
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Dimmable:
Yes-Dimmable
Each Height:
4.72
Each Length:
30.12
Each Width:
17.52
Length:
26
Lumens:
30337L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
5.91
Amps:
1.833-0.794A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.4414
Each Quantity:
1
Efficacy:
137.90 LPW
FCC Compliant:
Yes
Feature 1:
Length: 26.00 inches, Width: 14.25 inches, Height: 1.88 inches
Feature 2:
Damp location rated for indoor use
Feature 3:
White Finish
Feature 4:
Integrated Sensor Port
Feature 5:
5000K Natural White Light
Feature 6:
Rated for 50,000 hours
Feature 7:
Dimmable
Feature 8:
5 year limited warranty
Feature 9:
30337 lumens
Finish Family:
White
Fixture shape:
Rectangle
IC Rated:
Yes
Incandescent Equivalent:
450W-800W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP40
JA8 Compliant:
No
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:

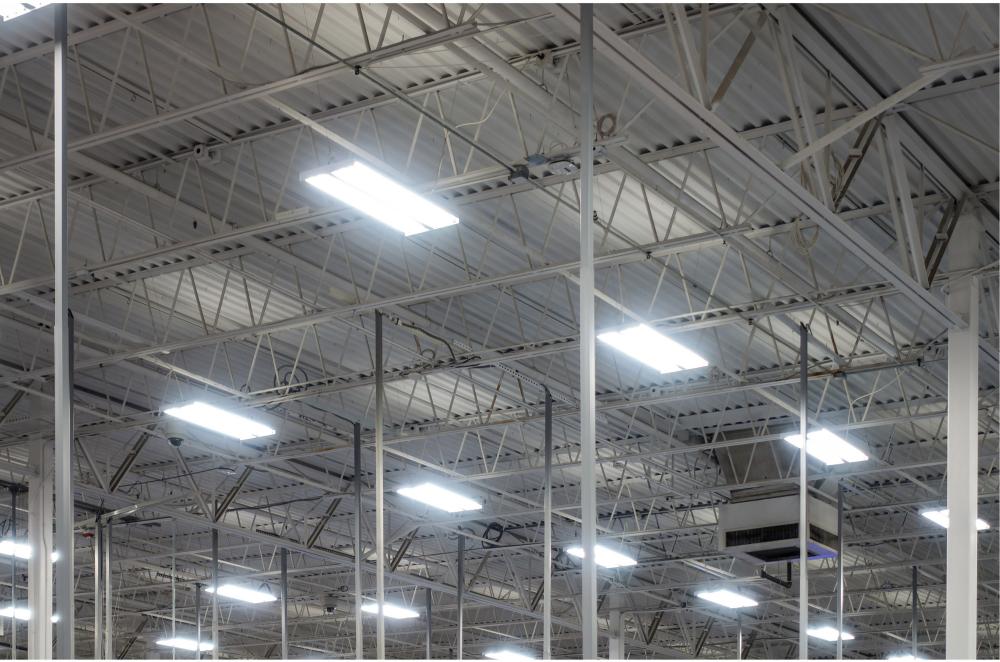

SATCO|NUVO's 65-648R1 220 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,00
Material:
Aluminum Alloy
Mounting Procedure:
Ceiling
Operating Frequency:
50-60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Box
Photocell:
Multiple Optional Sensors Available
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 220 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,000 hours o
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
220W LED ADJUSTABLE HIGH BAY
Temperature (CCT):
5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
10.36
Wire Quantity:
5
Wire Temp Rating:
105C (221F)
Manufactured By:
Nuvo
