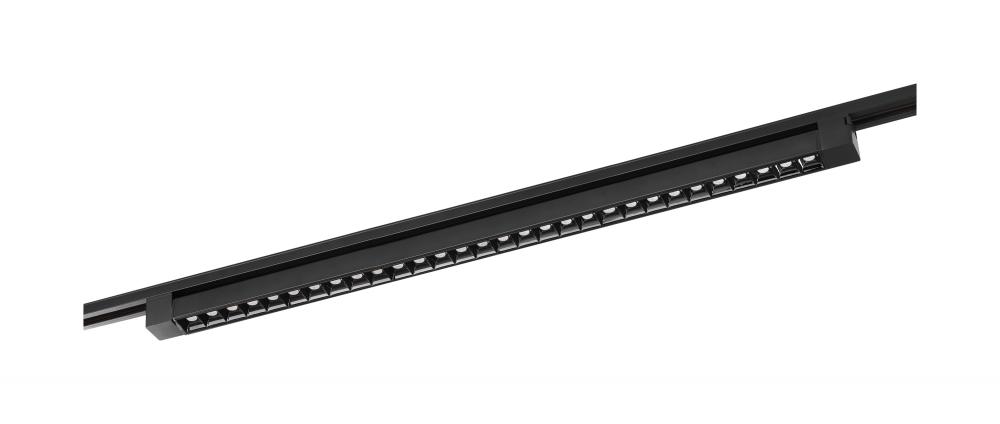

LED; 3FT; Track Light Bar; Black Finish; 30 deg. Beam Angle (TH505) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
257
00
/
/ 1
($257.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
TH505
Dimensions:
Height: 1.25"
Width: 1.50"
Black
Availability:
- Manufacturer has 96 items available.
Recommended Items
Description
Details
Downloads
LED; 3FT; Track Light Bar; Black Finish; 30 deg. Beam Angle
Category:
Track Ltg.
Subcategory:
Track Heads
Finish:
Black
Style:
Contemporary
, Traditional
, Modern
Option:
LED
, Prop 65
Lumens:
2601-3000
Kelvin:
2501-3000
Category:
Track Lighting
Sub Category:
Track Head
Style:
Modern and Contemporary
Additional Info:
Head rotates 270 degrees
Avg Rated Hours:
30000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White
Dimmable:
Yes-Dimmable
Each Height:
34.5
Each Length:
2.5
Each Width:
1.75
Length:
34.5
Lumens:
2880L
Tariff Code:
9405.11.6020
Warranty:
3 Year Limited - Fixtures
Amps:
0.375A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
30
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 20 percent
Dimmable Function:
120V only
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Each Cube:
0.0873
Each Quantity:
1
Efficacy:
64.00 LPW
FCC Compliant:
Yes
Feature 1:
New Mono Points
Feature 2:
New Linear Track Bars
Feature 3:
Expanded Track Head Offering
Feature 4:
Customizable Accent Lighting For Low To Mid Ceiling
Feature 5:
Residential and Commercial
Finish Family:
Black
Incandescent Equivalent:
200W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
At home or in a commercial space, Satco's TH505 track bar is an easy way to add linear effects to your lighting and accent architectural features like relief walls, artwork, signs, and more. The manufactured bars contain superior, long-lasting, and no-
Material:
Aluminum / Plastic
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-17C (+1.4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
This Satco track expansion includes mono points, linear track bars and the addition of several new track heads with modern profiles and adjustable design features, offering even more versatility and new direction to our track products! These introductions
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
45W LED 3 FOOT TRACK BAR
Temperature (CCT):
3000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
1.96
Manufactured By:
Nuvo
