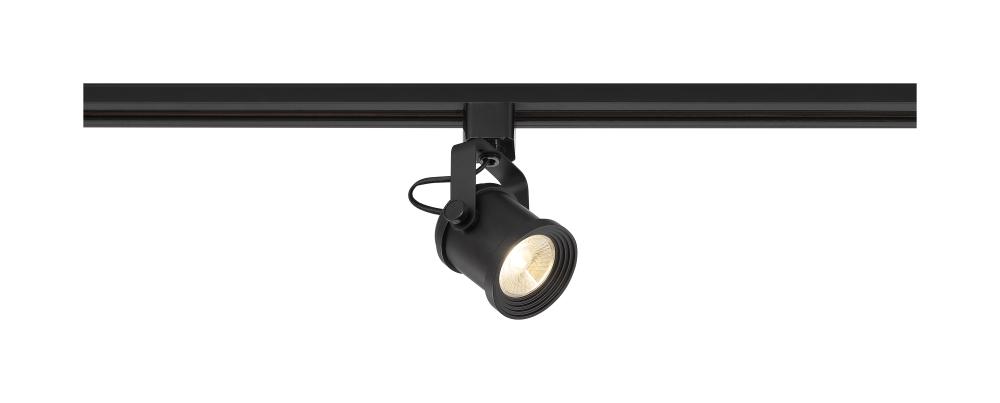

LED; 12 Watt Forged Track Head; Black; 36 deg. Beam Angle (TH489) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
80
00
/
/ 1
($80.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
TH489
Dimensions:
Height: 2.75"
Width: 2.75"
Black
Availability:
- Manufacturer has 197 items available.
Recommended Items
Description
Details
Downloads
LED; 12 Watt Forged Track Head; Black; 36 deg. Beam Angle
Category:
Track Ltg.
Subcategory:
Track Heads
Finish:
Black
Style:
Contemporary
, Traditional
, Modern
Option:
LED
, Prop 65
Lumens:
801-1100
Kelvin:
2501-3000
Category:
Track Lighting
Sub Category:
Track Head
Style:
Modern and Contemporary
Additional Info:
Track heads are H-track compatible for single circuit track lighting runs
Avg Rated Hours:
30000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White
Dimmable:
Yes-Dimmable
Each Height:
6.75
Each Length:
3.75
Each Width:
3
Length:
3
Lumens:
1020L
Tariff Code:
9405.11.6020
Warranty:
3 Year Limited - Fixtures
Amps:
0.100A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
36
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 20 percent
Dimmable Function:
120V only
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Each Cube:
0.0439
Each Quantity:
1
Efficacy:
85.00 LPW
FCC Compliant:
Yes
Feature 1:
New Mono Points
Feature 2:
New Linear Track Bars
Feature 3:
Expanded Track Head Offering
Feature 4:
Customizable Accent Lighting For Low To Mid Ceiling
Feature 5:
Residential and Commercial
Finish Family:
Black
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
The LED forged track head of Satco's TH489 delivers energy-efficient lighting for a variety of commercial and residential environments. The head is compatible with Halo (H) tracks, and is used in single circuit lighting runs. The lightweight aluminum h
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-17C (+1.4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
60
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
This Satco track expansion includes mono points, linear track bars and the addition of several new track heads with modern profiles and adjustable design features, offering even more versatility and new direction to our track products! These introductions
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
12W LED FORGED TRACK HEAD
Temperature (CCT):
3000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Track Head Style:
Forged
Wattage Selectable:
No
Weight Lb.:
0.64
Manufactured By:
Nuvo
