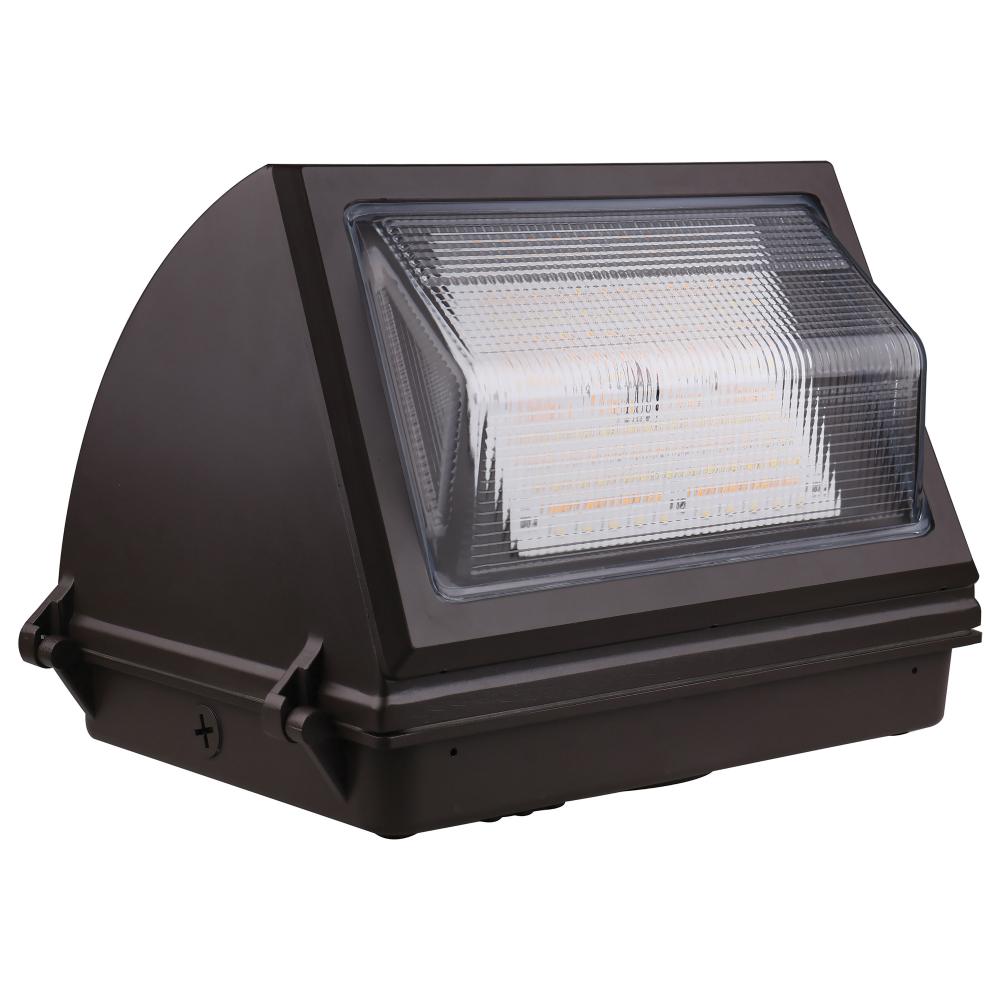

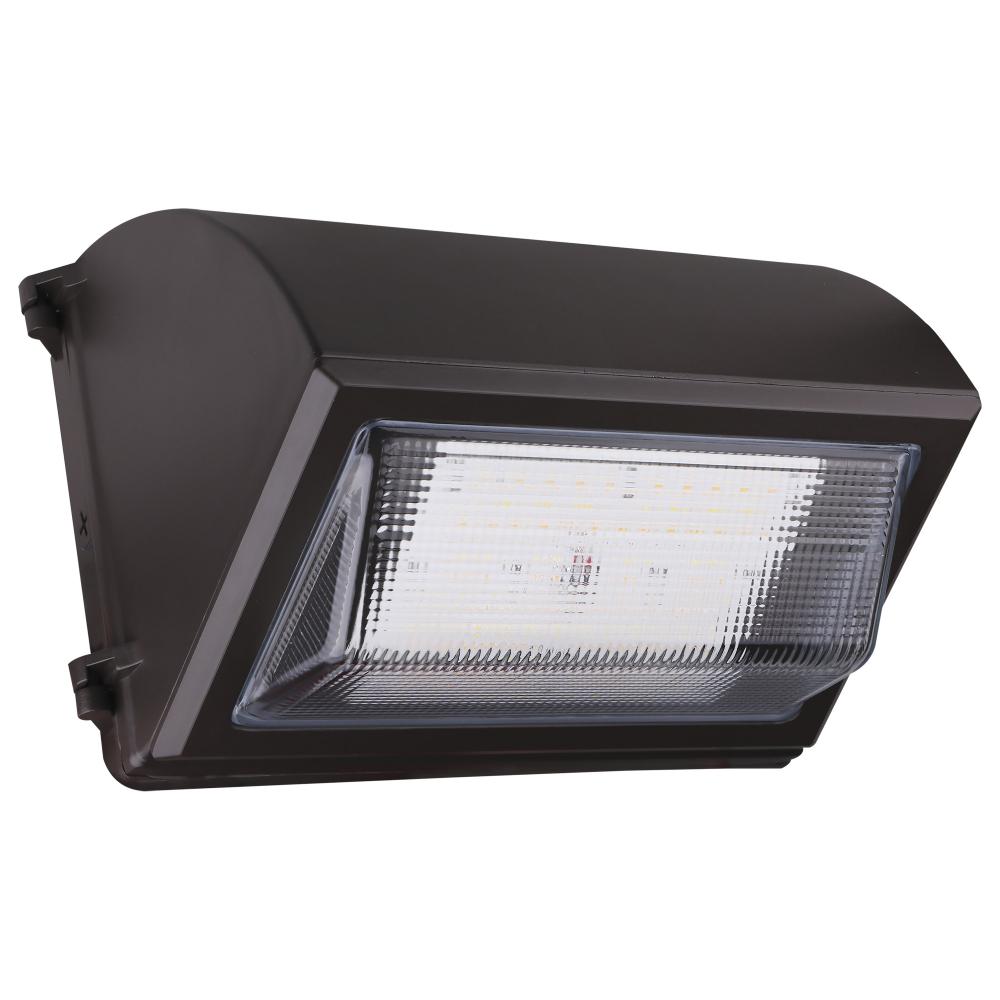

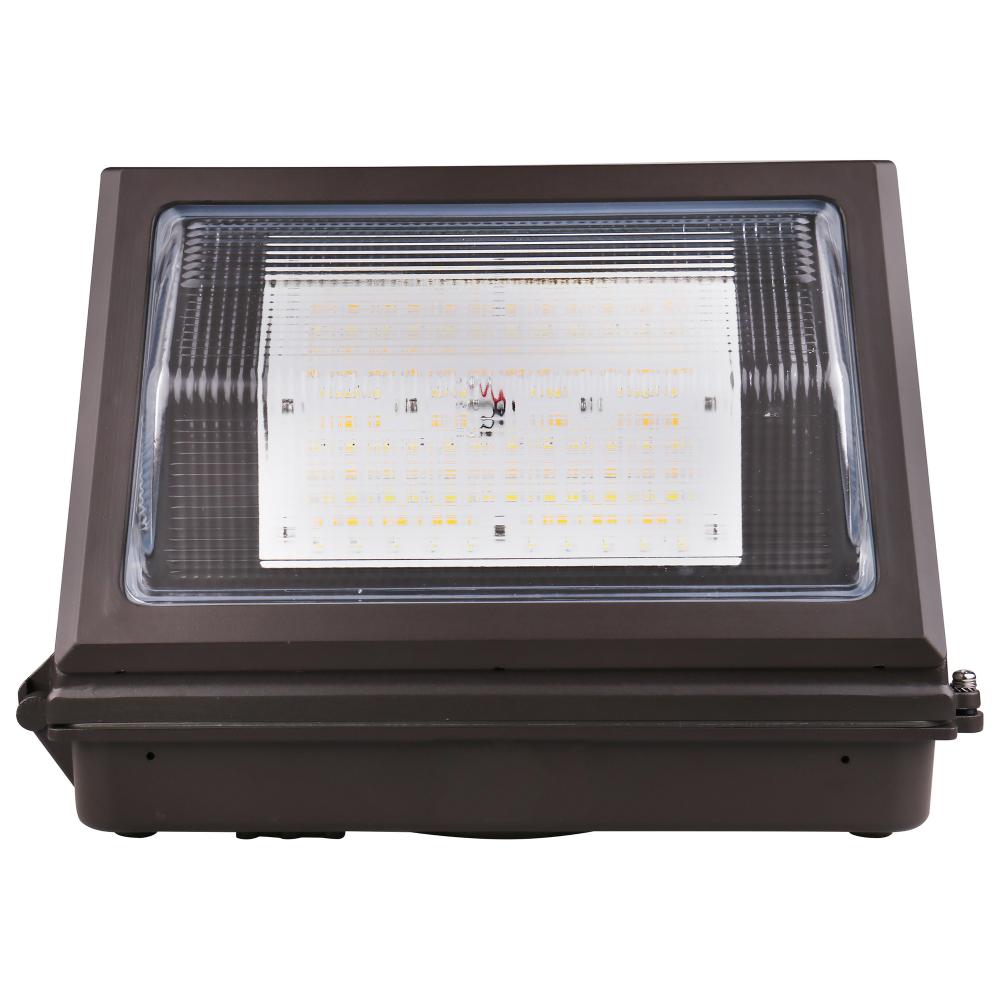

Emergency LED Cutoff Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; (65/762) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
538
00
/
/ 1
($538.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/762

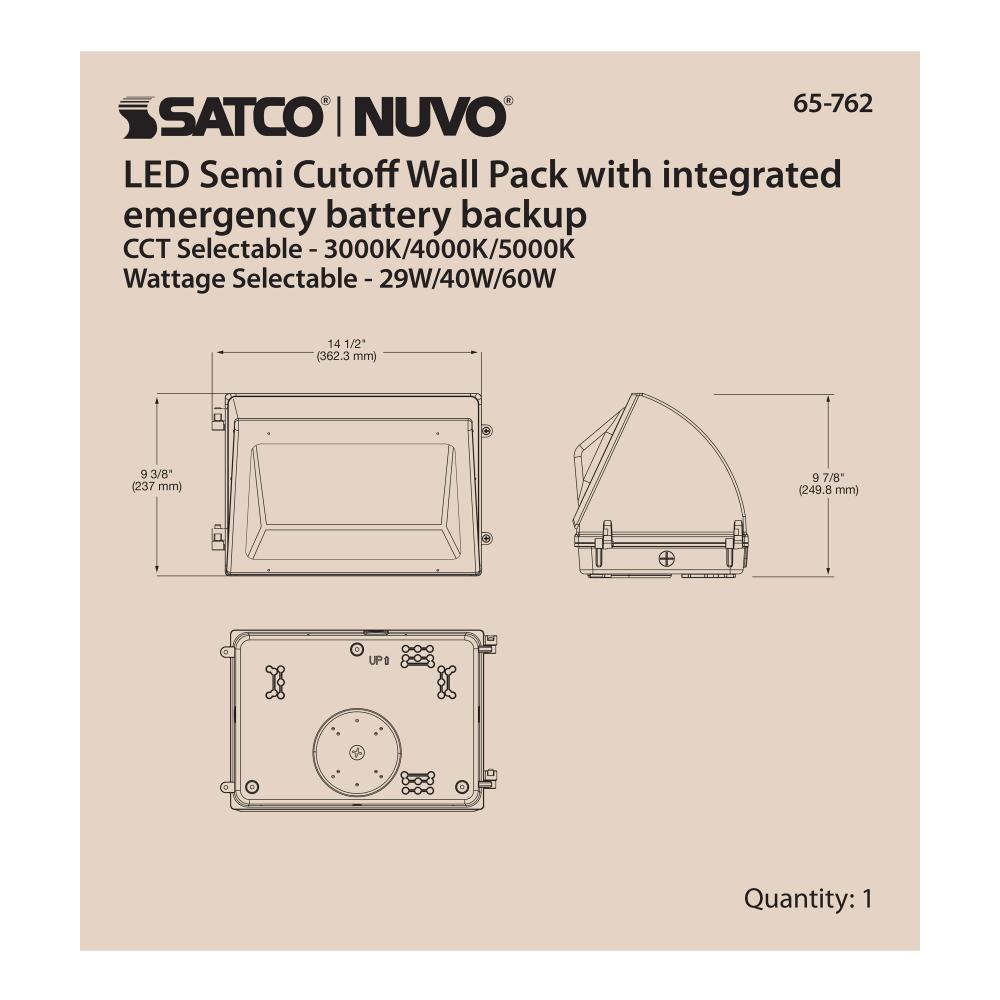

Dimensions:
Height: 9.83"
Width: 14.26"
Bronze
Availability:
- Manufacturer has 47 items available.
Recommended Items
Description
Details
Downloads
Emergency LED Cutoff Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt
Category:
Exterior
, Sconces
Subcategory:
Wall Lights
, Outdoor Wall Lights
Finish:
Bronze
Style:
Traditional
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Wall Pack
Sub Category:
Standard
Style:
Traditional
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
12.6
Each Length:
15.75
Each Width:
11.81
Lumens:
3915L-8400L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.242-0.105/0.333-0.144/0.500-0.217A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Angle:
110
B_U_G_Rating:
B2-U3-G3
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
1.3563
Each Quantity:
1
Efficacy:
135.00/153.94/140.00 LPW
FCC Compliant:
Yes

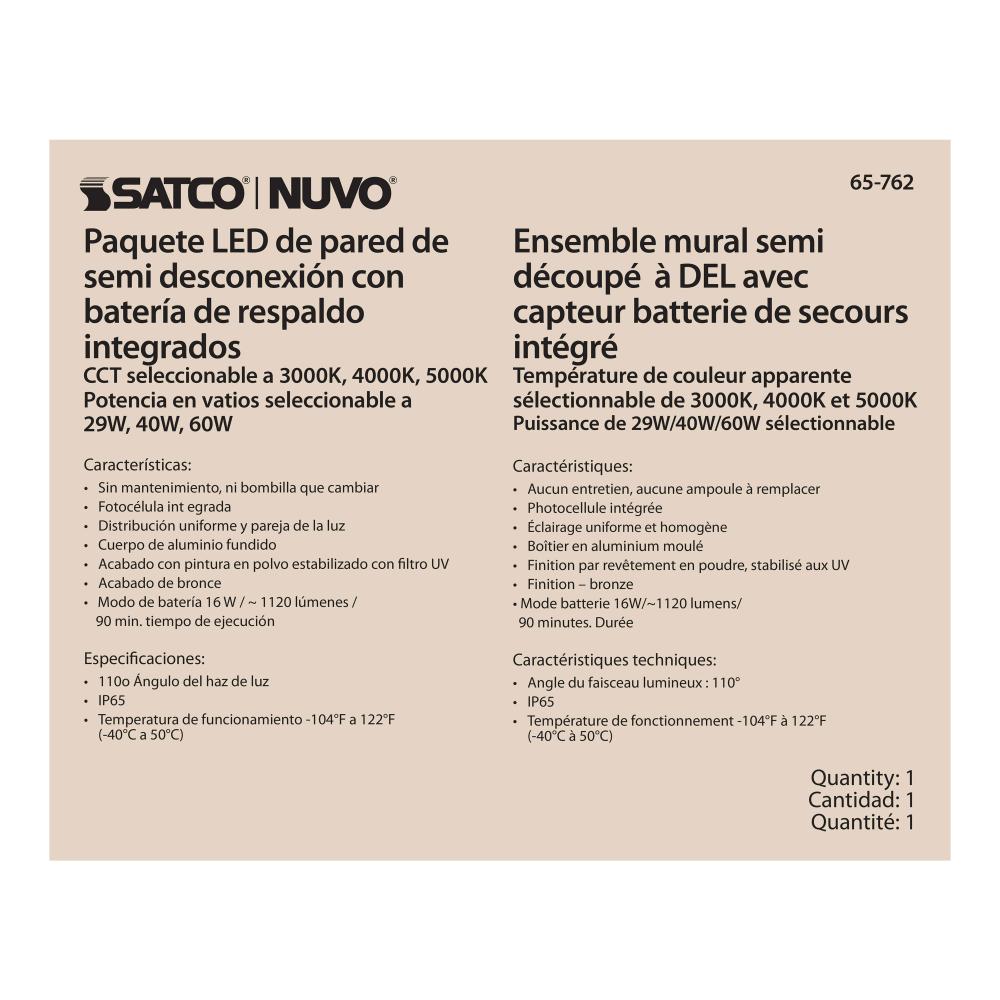

Feature 1:
Maintenance free - no bulb to change
Feature 10:
Consistent, even light distribution
Feature 2:
Integrated By-Passable Photocell
Feature 3:
Built-in surge protection - 10KV
Feature 4:

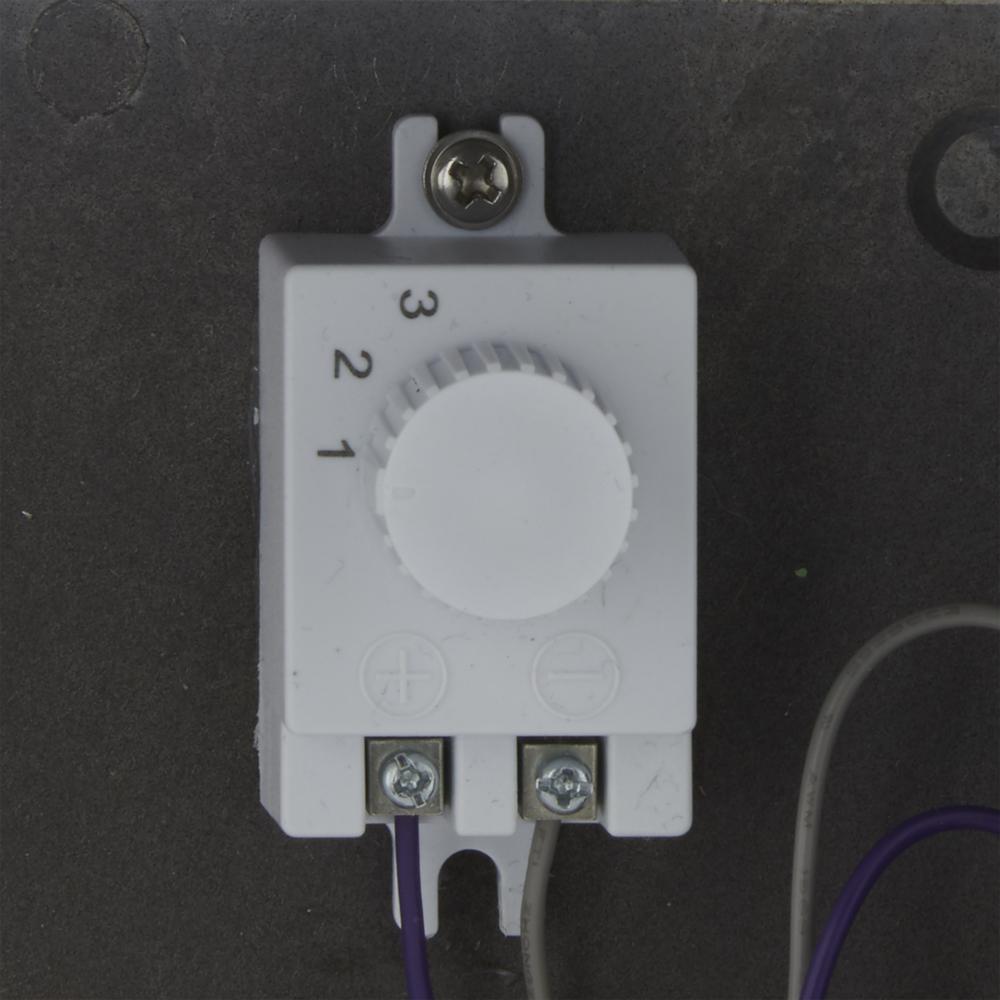

Wattage Selectable 29W/40W/60W
Feature 5:
50,000 Hours Long Life
Feature 6:
DLC Premium
Feature 7:
IP65 Rugged, All Weather Durability
Feature 8:
CCT Selectable 3000K/4000K/5000K
Feature 9:
Battery Mode 16W/1120 Lumens/90 min. Run Time
Finish Family:
Bronze
Has Emergency Battery:
Yes
HID Equiv:
75W-175W
Incandescent Equivalent:
200W-500W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Glass
Long Description:
Introducing 65-762, SATCO|NUVO's new CCT and Wattage selectable cutoff wall pack with integrated bypassable photocell and emergency battery backup. This cULus certified wall pack is offered in a traditional style with 29W/40W/60W wattage configurations
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in 29W/40W/60W select
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
EM CUTOFF WALL PACK CCT&WATT
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
10.5
Manufactured By:
Nuvo
