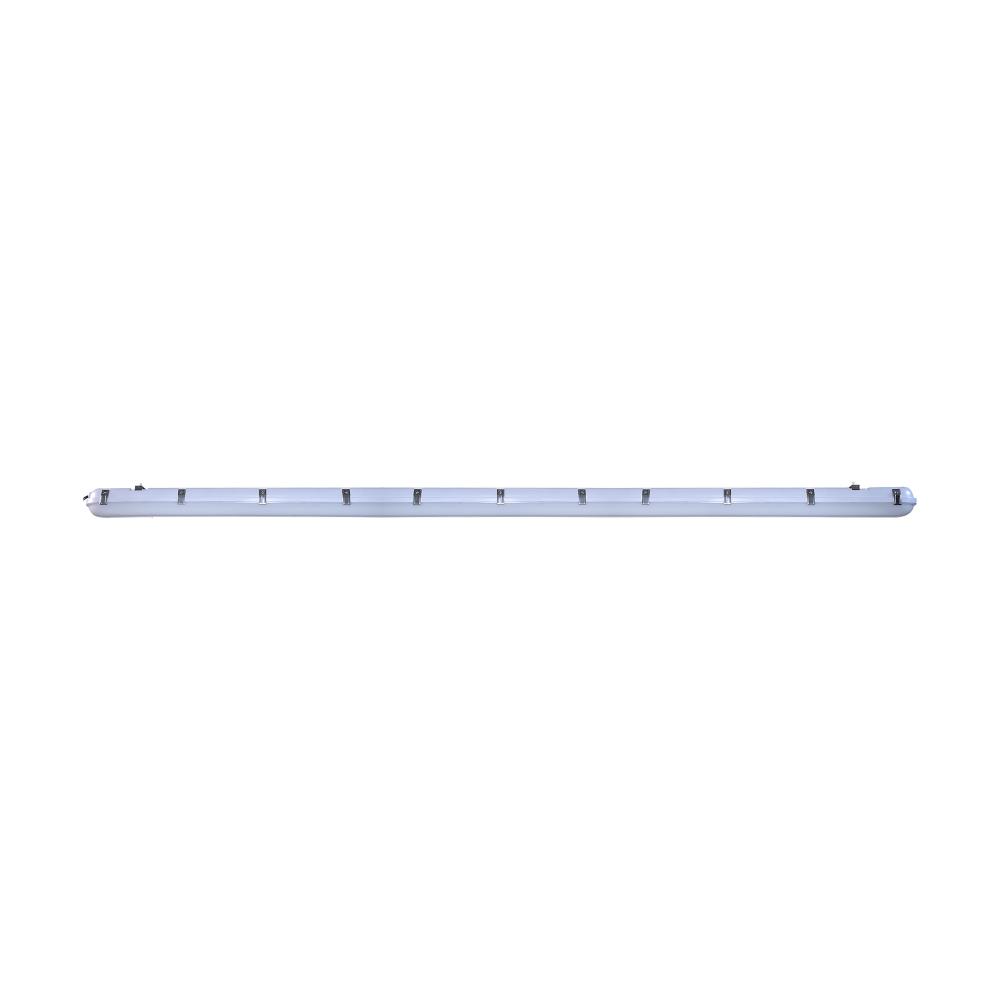

8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 (65/825) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
466
00
/
/ 1
($466.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/825
Dimensions:
Height: 3.46"
Width: 4.33"
Gray
Availability:
- Manufacturer has 26 items available.
Recommended Items
Description
Details
Downloads
8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated
Category:
Track Ltg.
Subcategory:
Track Heads
Finish:
Gray
Style:
Traditional
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
4.33
Each Length:
96.45999999999999
Each Width:
5.12
Length:
94.48999999999999
Lumens:
6400L-9360L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.500-0.181/0.600-0.217/0.720-0.260A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
China
CRI:
80
Dimmable Function:
0-10V; Integrated Sensor
DLC Classification:
Standard
DLC Primary Use:
Direct Linear Ambient Luminaires
Each Cube:
1.2375
Each Quantity:
1
Efficacy:
128.00/131.33/130.00 LPW
FCC Compliant:
Yes
Feature 1:
Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories
Feature 10:
Suspension kit (sold separately)
Feature 2:
IP65 and IK08 Rated
Feature 3:
CCT and Wattage Selectable
Feature 4:
2KV Built-in Surge Protection
Feature 5:
Non-corrosive (PC) polycarbonate housing
Feature 6:
0-10V Dimmable
Feature 7:
Integrated Microwave Sensor
Feature 8:
Water-proof, dust-proof, corrosion proof, can be used for food factories
Feature 9:
5 Year Warranty
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Flr Equiv:
100W-150W
Has Driver:
Yes
HID Equiv:
150W-200W
Impact Rating (IK):
IK08
Incandescent Equivalent:
400W-500W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-825 wattage selectable, 8 foot vapor proof linear fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this dimmable fixture is CCT and wattage selectable and wet location rated, wit
Material:
Plastic
Mounting Procedure:
Surface: Bracket;Suspension: CablesChain
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Photocell:
Integrated Microwave Sensor
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
8' LINEAR VAPOR PROOF W/SENSOR
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
7.30%
Wattage Selectable:
Yes
Weight Lb.:
12.13
Manufactured By:
Nuvo
