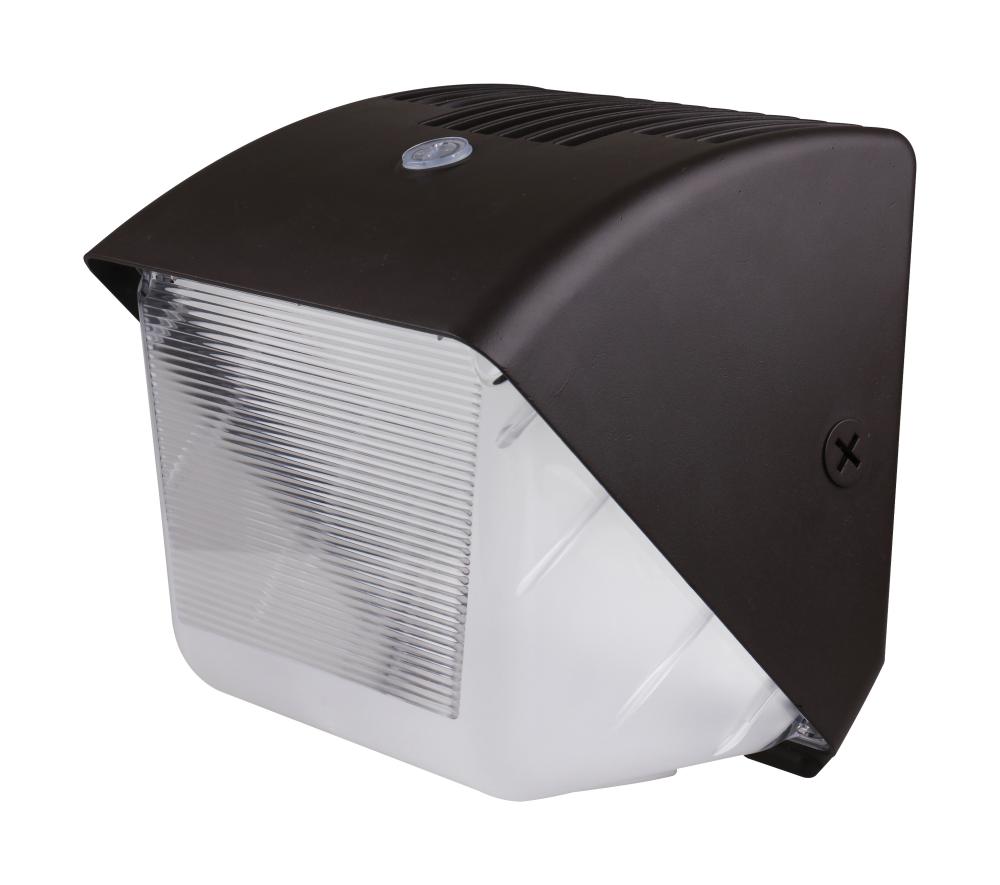

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; (65/655) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
149
00
/
/ 1
($149.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/655
Dimensions:
Height: 8.44"
Width: 8.50"
Bronze
Availability:
- Manufacturer has 10 items available.
Recommended Items
Description
Details
Downloads
29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish
Category:
Exterior
, Sconces
Subcategory:
Wall Lights
, Outdoor Wall Lights
Finish:
Bronze
Style:
Traditional
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Wall Pack
Sub Category:
Mini
Style:
Traditional
Additional Info:
IK10 Lens
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
9.65
Each Length:
9.880000000000001
Each Width:
10.19
Lumens:
3650L-3770L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.242-0.105A
ANSI Base:
Integrated
Beam Angle:
80
B_U_G_Rating:
B1-U3-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
70+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.5622
Each Quantity:
1
Efficacy:
125.86/127.93/130.00 LPW
FCC Compliant:
Yes
Feature 1:
DLC Premium
Feature 2:
Integrated Bypassable Photocell
Feature 3:
CCT Selectable
Feature 4:
UV stabilized powder coated finish
Feature 5:
IP65 Rated
Feature 6:
80 Degree Viewing Angle
Finish Family:
Bronze
Flicker Free:
Yes
HID Equiv:
125W
Impact Rating (IK):
IK10
Incandescent Equivalent:
200W
Indoor Outdoor:
Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Long Description:
SATCO|NUVO's 65-655 CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to dire
Material:
Aluminum / Polycarbonate (PC)
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
2
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct ligh
Safety Listing:
cULus
SDS class:
LED_Fixture
Short Description:
29W LED SMALL WALL PACK
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
5.08
Manufactured By:
Nuvo
