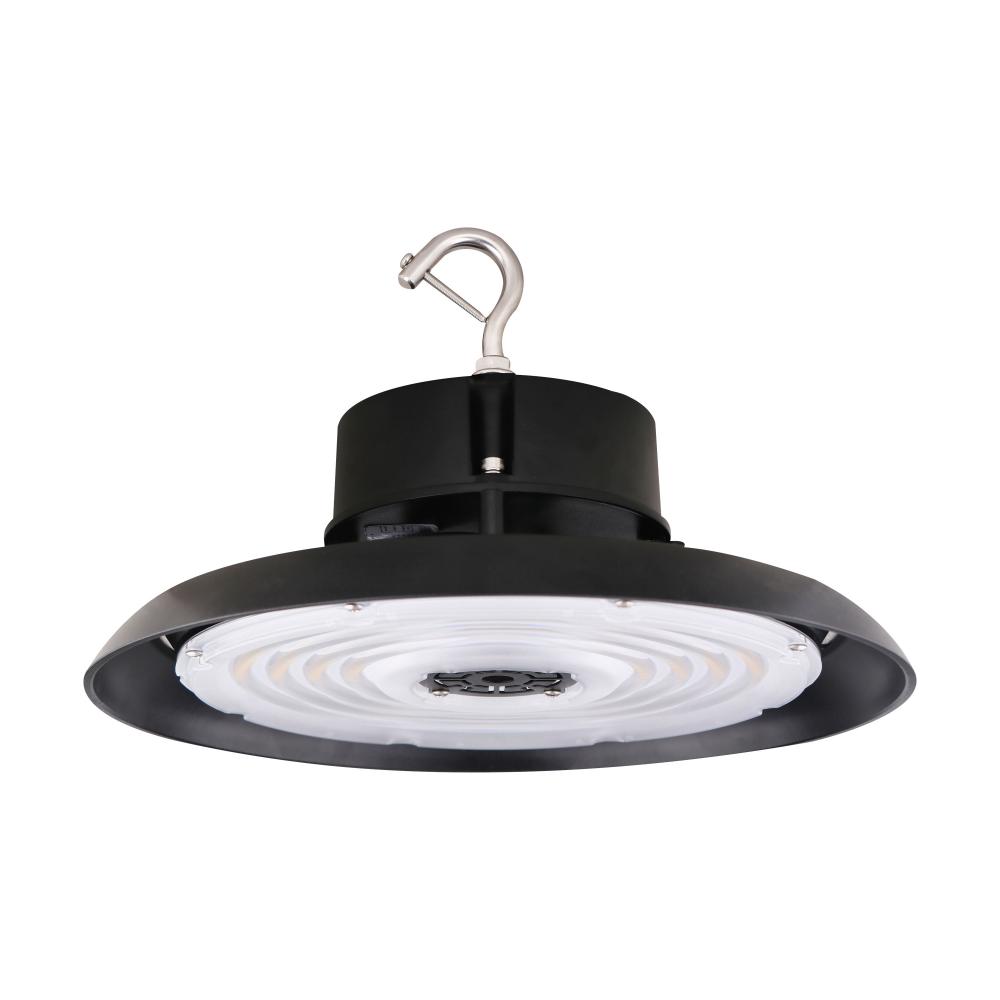

150W UFO LED High Bay; 21000 Lumens; 4000K; 277-480 Volt; 0-10V Dimmable; Black Finish (65/803) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
276
00
/
/ 1
($276.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/803
Dimensions:
Height: 7.99"
Width: 11.81"
Black
Availability:
- Manufacturer has 17 items available.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Recommended Items
Description
Details
Downloads
150W UFO LED High Bay; 21000 Lumens; 4000K; 277-480 Volt; 0-10V Dimmable; Black Finish
Category:
Track Ltg.
Subcategory:
Track Heads
Finish:
Black
Style:
Traditional
Option:
LED
, Prop 65
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Diameter:
11.81
Dimmable:
Yes-Dimmable
Each Height:
7.68
Each Length:
14.17
Each Width:
14.17
Lumens:
21000L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
0.542-0.313A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
Connection:
Hardwire
Country Of Origin:
Malaysia
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.8924
Each Quantity:
1
Efficacy:
140.00 LPW
FCC Compliant:
Yes
Feature 1:
Integrated Sensor Port
Feature 2:
IP65
Feature 3:
4KV Surge Protection
Feature 4:
6 Foot Whip
Feature 5:
90 degree Beam Angle
Feature 6:
50,000 Hours
Feature 7:
5 Year Warranty
Finish Family:
Black
Has Driver:
Yes
HID Equiv:
400W
Housing Color:
Black
Impact Rating (IK):
IK08
Incandescent Equivalent:
1000W
Indoor Outdoor:
Indoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
Introducing 65-803, Satco's 150-watt, 277-480 volt, 4000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase for this
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling
NSF Approved:
Yes
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing our newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated sensor por
Safety Listing:
cULus
SDS class:
LED_Fixture
Short Description:
LED UFO HIGHBAY 150W/4000K
Sloped Ceiling Compatible:
No
Temperature (CCT):
4000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
6.58
Manufactured By:
Nuvo
