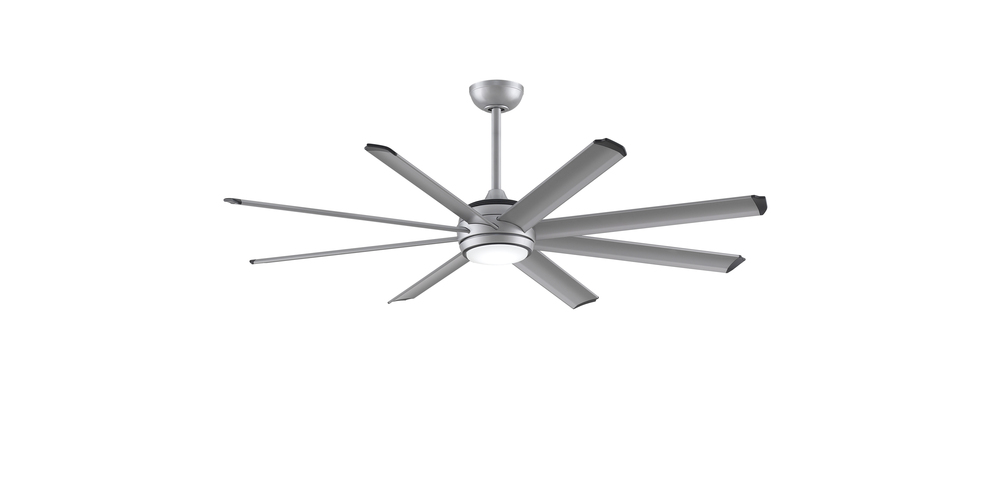

Stellar Custom Motor - SLW with LED Light Kit (MAD7997SLW) by Fanimation
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
696
00
/
/ 1
($696.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
MAD7997SLW
Dimensions:
Height: 20.61"
Width: 56.00"
Length: 56.00"
Availability:
- Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
11092 Cubic Feet per Minute
Electricity Rate:
32 Watts (excluded lights)
Airflow Efficiency:
296 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
Incredible in size and function, the Fanimation Stellar reigns supreme with swift aluminum blades. Showcasing a 56, 64, or 72 inch blade span, Stellar features an integrated LED CCT Select Temperature Settings light kit and is safe for use in wet locations. Pick the combination that matches your decor, between black and silver finishes. Stellar features fanSync technology so that users may control various fan functionalities with their the Fanimation fanSync app. *Blades sold separately
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Silver
Style:
Traditional
Option:
Energy Star
, Wet Rated
, LED
Voltage:
10-99
Glass Finish or Style:
Frosted
, Opal
Lumens:
1101-1600
Number of Blades:
8+ Blades
Location Rating:
Wet Rated
Wattage:
18w
Category:
Fan-Multi
Finish:
Silver
Option:
Wet
Family:
Stellar Custom
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
18 watt LED light kit with cover and bulb included; Set of 8 Wet Rated blades sold separately
, 7335 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with variable speeds, light controls, sleep timer, Fresh Air, Safe Exit, Home Away features
, ENERGY STAR Most Efficient 2020
, TR205D handheld remote with CR2032 batteries included
Air Flow CFM:
11092
Air Flow Efficiency:
296
Amperage:
0.46
Blade Pitch:
12.6
Bulb Type:
18 Watt LED Module
Canopy:
6.3 Dia x 2.55 H
Diameter:
9.21
Down Rod Included:
6
Electricity Used:
32
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
56, 64, 72, 84
Light Kit Included:
Yes
Lumens / Light Output:
1500
Max Length:
84
Max Width:
84
Motor Fan Speed:
16
Motor RPM:
76
Motor Size:
DC153X25FS
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
10.75
Ship Carton Length:
19.49
Ship Carton Width:
11.42
Ship Weight:
21.56
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
18.92
Airflow Efficiency Low:
1072
Airflow Efficiency Medium:
514
Avg Airflow Efficiency:
465
Avg CFM Energy:
10015
Avg Energy Use Watts:
22
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
10
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
6.3 Dia
Canopy Height:
2.55 H
Cap Included:
Yes
Carton Cubic Feet:
1.38
Cartons Per Unit:
1
Case Height:
10.75
Case Length:
19.49
Case Quantity:
1
Case Weight Pounds:
21.56
Case Width:
11.42
CEC Uploaded:
Yes
Ceiling To Blade Edge:
18.61
Ceiling To Bottom:
20.61
CFM Low:
4127
CFM Medium:
8149
Compatible Accessories:
CCK8002SLW, DR1-CPSL, DR1SS-12SLW, DR1SS-18SLW, DR1SS-24SLW, DR1SS-36SLW, DR1SS-48SLW, DR1SS-60SLW, DR1SS-72SLW, SCB1-52
Compatible Blades:
B7993-84BLW, B7993-84SLW, B7997-56BLW, B7997-56SLW, B7997-64BLW, B7997-64SLW, B7997-72BLW, B7997-72SLW
Compatible Wall Controls:
TW306
Country of Origin:
China
CRI:
90
Current Draw High:
0.58
Current Draw Low:
0.07
Current Draw Medium:
0.25
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
12
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
9.21
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Light Kit Energy Star:
No
Max Ceiling Slope:
27
Max Watt:
37
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
8
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
71
RPM Low (II):
29
RPM Medium (IV):
55
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
4
Watts Medium:
16
Watts Per Bulb:
18
Wet Rated:
Yes
Manufactured By:
Fanimation
Additional Information:
- 18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (8) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
- 7335 Cfm On High
- Compatible With Most Smart Home Devices (required Controls Sold Separately)
- Dc Motor With Variable Speeds, Light Controls, Sleep Timer, Fresh Air, Safe Exit, Home Away Features
- Limited Lifetime Warranty
- Tr305 Handheld Remote With 23a Battery Included
