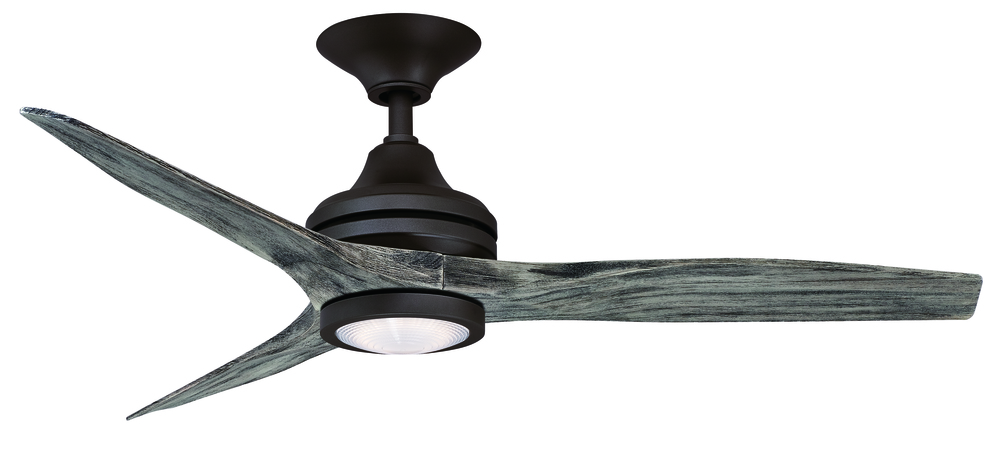

Spitfire Motor - GR (MA6721BGR) by Fanimation
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
393
00
/
/ 1
($393.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
MA6721BGR
Dimensions:
Height: 12.00"
Width: 48.00"
Length: 48.00"
12
, 13.71
Availability:
- Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
6641 Cubic Feet per Minute
Electricity Rate:
61 Watts (excluded lights)
Airflow Efficiency:
108 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Gray
, Miscellaneous
Style:
Traditional
Option:
Damp Rated
Voltage:
10-99
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Category:
Fan-Multi
Finish:
Matte Greige
Option:
Damp
Family:
Spitfire
Voltage:
120 V
Additional Info:
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features
, 5227 CFM on High
, Limited Lifetime Warranty
, Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
6641
Air Flow Efficiency:
108
Amperage:
0.52
Blade Pitch:
21
Canopy:
7.09 Dia x 2.2 H
Diameter:
8.07
Down Rod Included:
4.5
Electricity Used:
61
Harmonized Codes:
8414.51.3000
Length:
48, 60
Light Kit Included:
No
Max Length:
60
Max Width:
60
Motor Fan Speed:
3
Motor RPM:
130
Motor Size:
188 x 25
Motor Type:
AC
Remote Control Included:
TR500
Ship Carton Height:
10.91
Ship Carton Length:
14.49
Ship Carton Width:
10.47
Ship Weight:
17.85
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
16.34
Airflow Efficiency Low:
175
Airflow Efficiency Medium:
128
Avg Airflow Efficiency:
92
Avg CFM Energy:
3776
Avg Energy Use Watts:
41
Avg Estimated Yearly Energy Cost:
12
Avg Estimated Yearly Energy Cost on HIGH:
17
Canopy Diameter:
7.09 Dia
Canopy Height:
2.2 H
Cap Included:
No
Carton Cubic Feet:
0.96
Cartons Per Unit:
1
Case Height:
10.91
Case Length:
14.49
Case Quantity:
1
Case Weight Pounds:
17.85
Case Width:
10.47
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12
Ceiling To Bottom:
12
, 13.71
CFM Low:
2433
CFM Medium:
4614
Compatible Accessories:
DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCK1-52GR, CCK6721GR
Compatible Blades:
B6720BL, B6720BN, B6720DF, B6720DWA, B6720N, B6720WE, B6720WK, B6720WW, B6720-48BL, B6720-48BN, B6720-48DF, B6720-48DWA, B6720-48MW, B6720-48N, B6720-48WE, B6720-48WK, B6720-48WW
Compatible Controls:
BTCR9, BTR9, CRL4WH, WFR50
Compatible Light Kits:
LK6721BGR
Compatible Wall Controls:
CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
Current Draw High:
0.52
Current Draw Low:
0.25
Current Draw Medium:
0.4
Damp Rated:
Yes
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
8.07
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
80
Max Ceiling Slope:
19
Max Watt:
61
Maximum Slope Degree:
19
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High (VI):
130
RPM Low (II):
54
RPM Medium (IV):
98
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
14
Watts Medium:
36
Manufactured By:
Fanimation
Additional Information:
- 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
- 5227 Cfm On High
- Limited Lifetime Warranty
- Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
