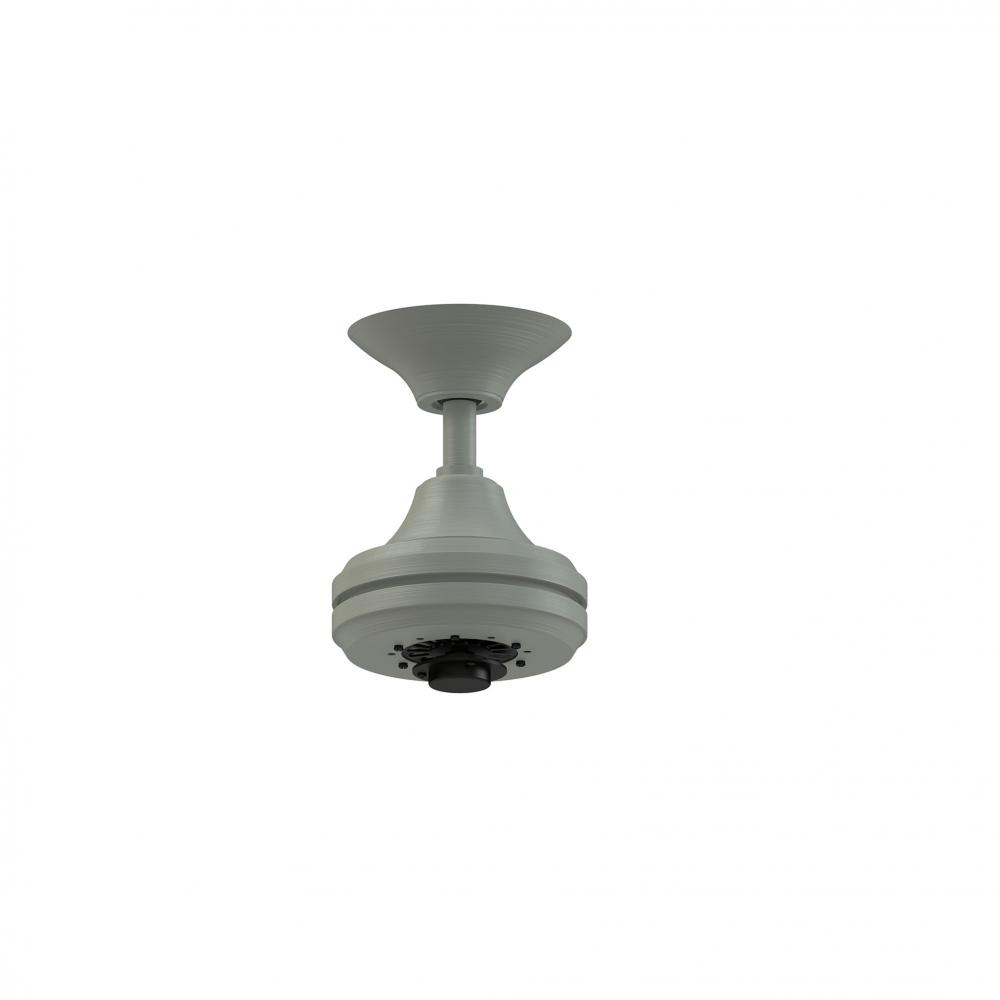

Spitfire Motor - AGP (MA6721BAGP) by Fanimation
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
393
00
/
/ 1
($393.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
MA6721BAGP
Dimensions:
Height: 12.00"
Width: 48.00"
Length: 48.00"
Availability:
- Manufacturer availability unavailable.
Description
Details
Downloads

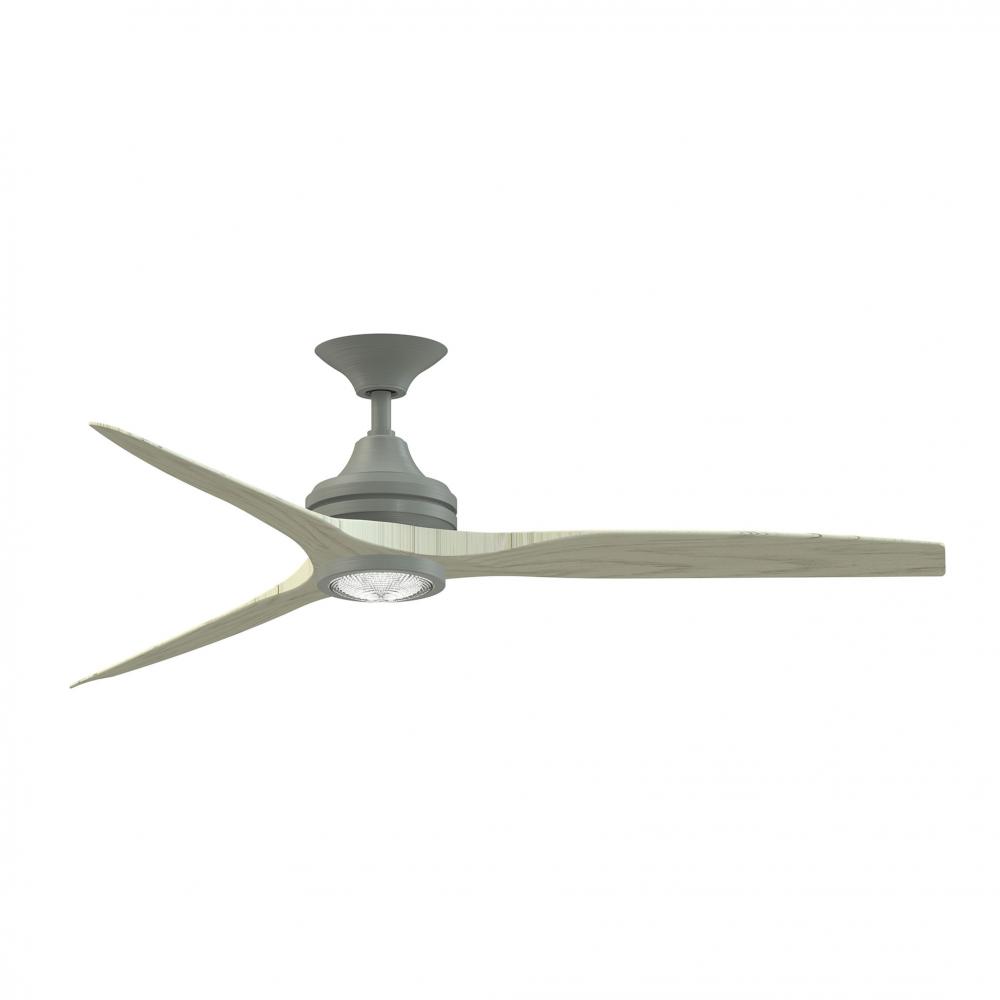

The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Black
Category:
Fan-Multi
Finish:
Antique Graphite
Family:
Spitfire
Voltage:
120 V
Air Flow CFM:
5164
Air Flow Efficiency:
72
Canopy:
7.09 Dia x 2.2 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
188 x 25
Motor Type:
AC
Ship Carton Height:
10.94
Ship Carton Length:
14.37
Ship Carton Width:
10.43
Ship Weight:
18.74
Sold By:
Each
Warranty:
Limited Lifetime Warranty
Weight:
17.42
Airflow Efficiency Low:
132
Airflow Efficiency Medium:
101
Avg Airflow Efficiency:
80

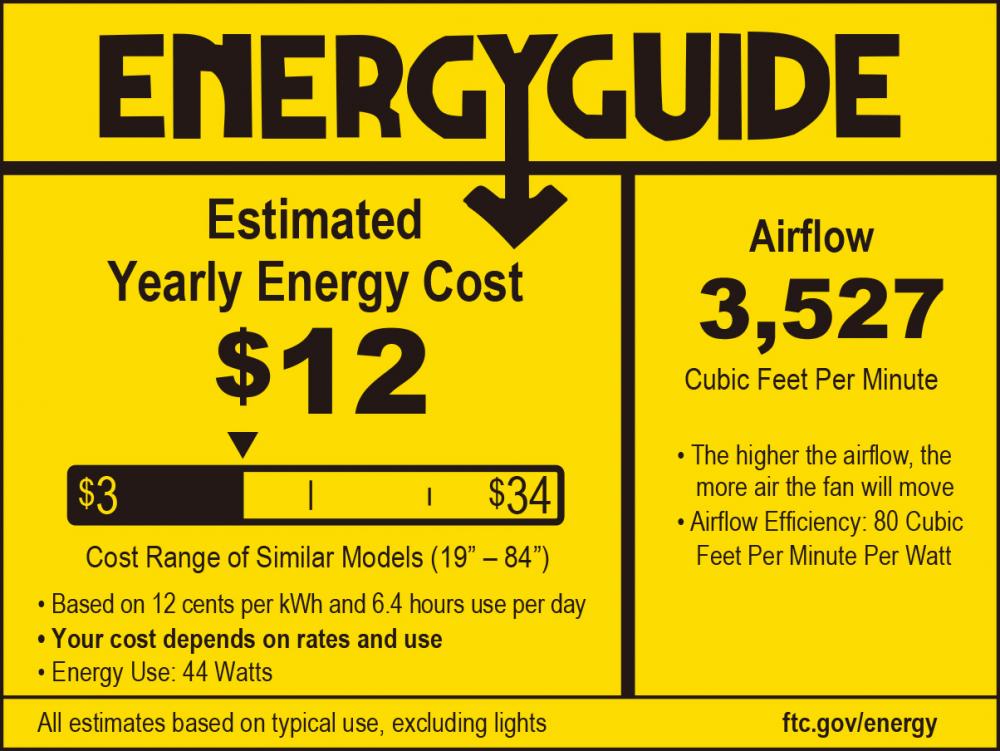

Avg CFM Energy:
3527
Avg Energy Use:
44
Avg Estimated Yearly Energy Cost:
12
Avg Estimated Yearly Energy Cost on HIGH:
20
Cap Included:
No
Carton Cubic Feet:
0.9489
Case Height:
10.94
Case Length:
14.37
Case Quantity:
1
Case Weight Pounds:
18.74
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12
Ceiling To Bottom (No Light Kit):
12
Ceiling To Bottom (With Light Kit):
13.71
CFM Low:
1526
CFM Medium:
3280
Country of Origin:
China
Current Draw High:
0.6
Current Draw Low:
0.24
Current Draw Medium:
0.4
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.07
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
80
Location Rating:
Damp
Max Ceiling Slope:
19
Max Length:
60
Max Width:
60
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High:
198
RPM Low:
66
RPM Medium:
124
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60HZ
Watts High:
72
Watts Low:
12
Watts Medium:
32
Manufactured By:
Fanimation
Additional Information:
- 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
- 5227 Cfm On High
- Limited Lifetime Warranty
- Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
