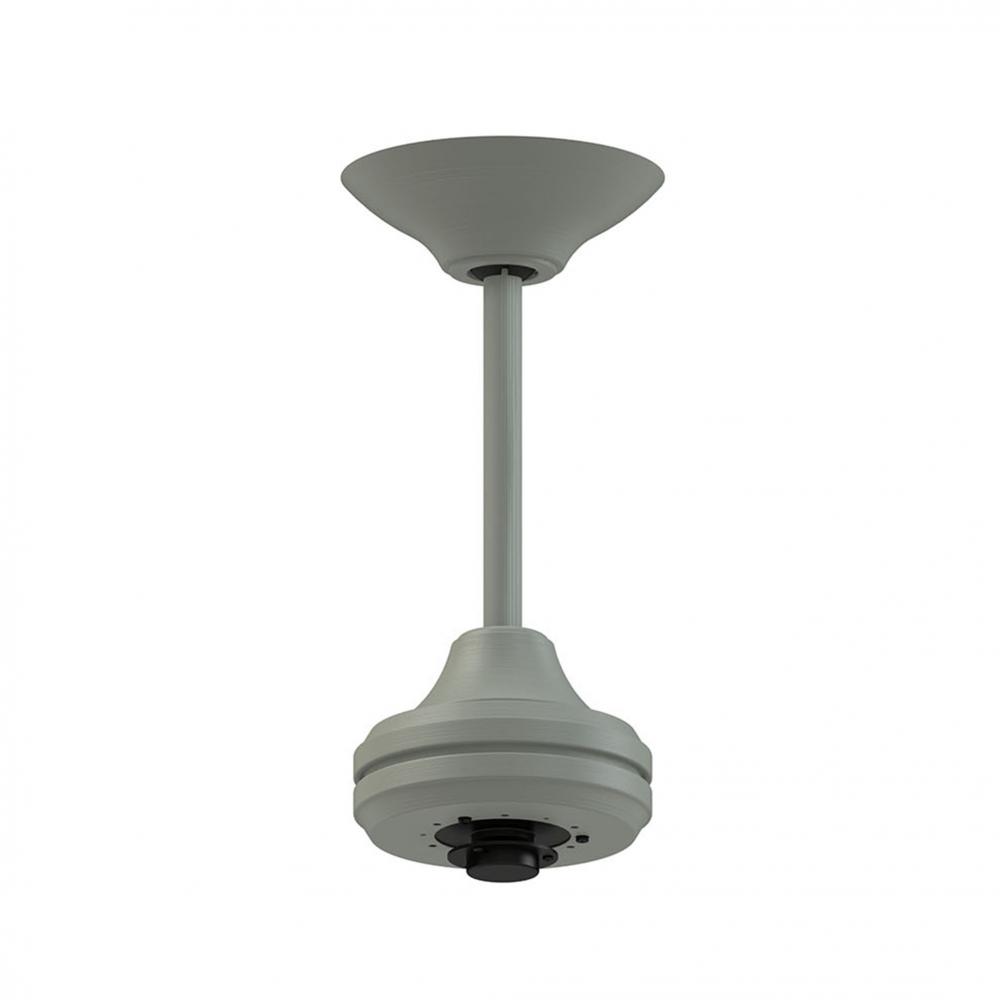

Spitfire DC Motor - AGP (MAD6721AGP) by Fanimation
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
408
00
/
/ 1
($408.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
MAD6721AGP
Dimensions:
Height: 19.69"
Width: 64.00"
Length: 64.00"
Availability:
- Manufacturer availability unavailable.
Description
Details
Downloads

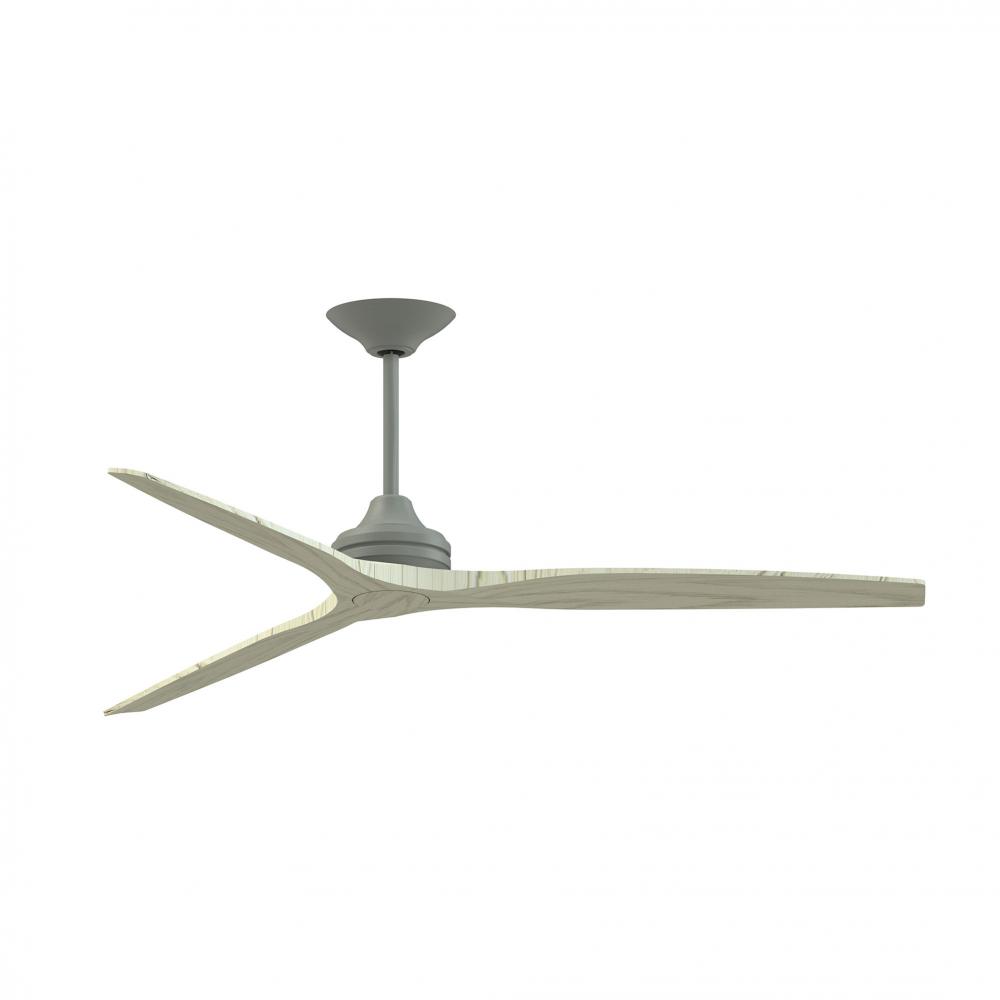

The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Black
Category:
Fan-Multi
Finish:
Antique Graphite
Family:
Spitfire
Voltage:
120 V
Air Flow CFM:
12900
Air Flow Efficiency:
386
Canopy:
8.76 Dia x 2.52 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
153 x 25
Motor Type:
DC
Ship Carton Height:
10.94
Ship Carton Length:
14.37
Ship Carton Width:
10.43
Ship Weight:
16.65
Sold By:
Each
Warranty:
Limited Lifetime Warranty
Weight:
15.17
Airflow Efficiency Low:
1049
Airflow Efficiency Medium:
880
Avg Airflow Efficiency:
376
Avg CFM Energy:
7429
Avg Energy Use:
20
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Cap Included:
No
Carton Cubic Feet:
0.9489
Case Height:
10.94
Case Length:
14.37
Case Quantity:
1
Case Weight Pounds:
16.65
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
19.69
Ceiling To Bottom (No Light Kit):
19.69
Ceiling To Bottom (With Light Kit):
21.35
CFM Low:
2958
CFM Medium:
7355
Country of Origin:
China
Current Draw High:
0.47
Current Draw Low:
0.06
Current Draw Medium:
0.14
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
12
Exempt from DOE Procedure:
No
Fan Energy Star 4:
Yes
Housing Diameter:
8.07
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Location Rating:
Damp
Max Ceiling Slope:
27
Max Length:
96
Max Width:
96
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
112
RPM Low:
29
RPM Medium:
67
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60HZ
Watts High:
33
Watts Low:
3
Watts Medium:
8
Manufactured By:
Fanimation
Additional Information:
- 12900 Cfm On High
- 16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features
- Compatible with most smart home devices using the Fanimation fanSync WiFi App
- Energy Star Most Efficient 2022
- Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)
- Tr305 Handheld Remote With 23a Battery Included
